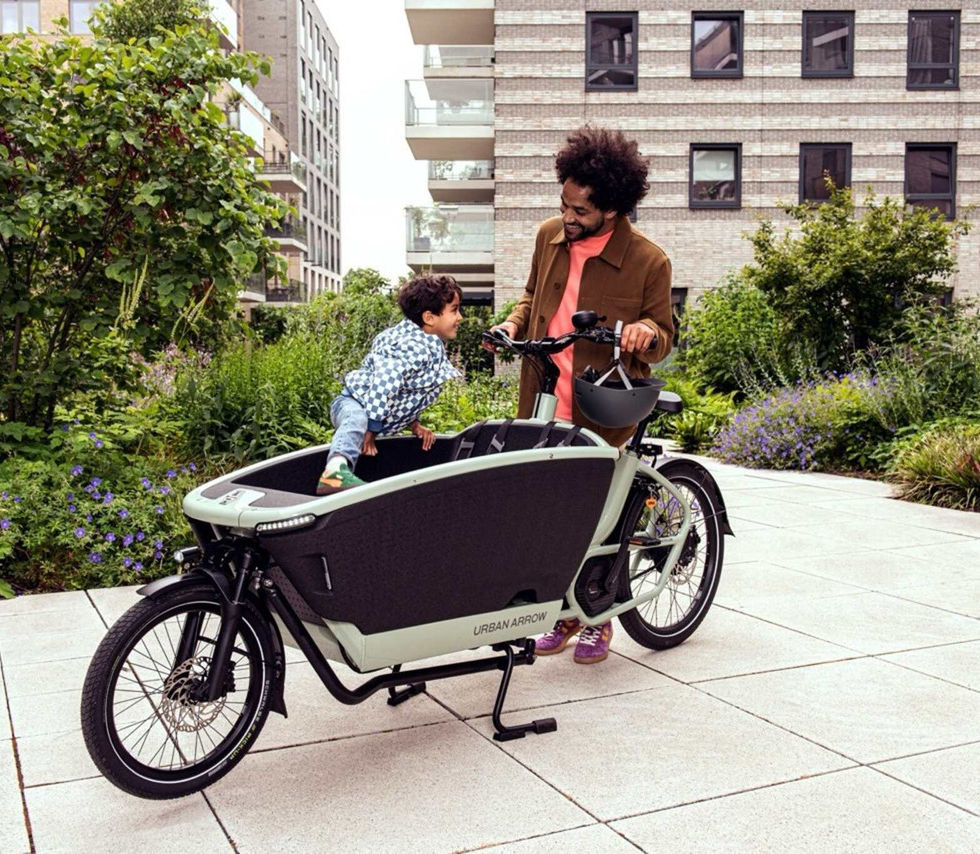

🚲 Urban Arrow Family Next — 2026 Model Year

🔥 Next-generation family cargo e-bike — front suspension, higher backrest cargo box, and Bosch Smart System for a smoother, safer, more convenient daily ride.

📦 General Information

◦ Model: Urban Arrow FamilyNext Essential 50Nm (2026) ◦ Type: Front-Loading Family Cargo e-Bike (Smart System) ◦ Key Positioning: New FamilyNext platform at a more accessible price (50Nm motor + chain drive) ◦ Frame: UA4.5 heavy-duty aluminum split-frame with integrated side impact protection tubes ◦ Front Box: High-density EPP foam (new design) ◦ Lower step-in cutout for kids ◦ Higher rear wall to better support head/neck

⚡ E-Bike System & Smart Technology

◦ Motor: Bosch Active Line Plus Gen 3 (Smart System Edition) Mid-Drive ◦ Max Torque: 50 Nm (smooth, ideal for flatter city riding) ◦ Battery: Bosch PowerPack 400Wh (removable + lockable) ◦ Optional battery upgrades at purchase: 545Wh or 800Wh ◦ Estimated Range (400Wh): 30–70 km/charge ◦ Smart System: Bosch BES3 Smart System (supports eBike Flow App) ◦ Smart Features: OTA firmware updates + digital tracking/security features

📐 Frame & Dimensions

◦ Overall Length: 260 cm ◦ Max Width (front box): 70 cm ◦ Max Height: ~110 cm (depends on stem/handlebar adjustment) ◦ Frame: UA4.5 split-frame heavy-duty chassis with smoother integrated side protection ◦ Passenger Box (new EPP design): ◦ Lower entry cutout for kids ◦ Higher rear wall for improved head/neck support

⚖️ Weight & Load Capacities

◦ Bike Weight (unloaded): ≈ 51 kg (with base battery) ◦ Max Allowed Total Weight (bike + rider + passengers/cargo): 250 kg ◦ Max Load in Front Box (passengers + cargo): ~100–125 kg ◦ Max Rider Weight: 125 kg

⚙️ Drivetrain & Mechanical Components

◦ Gear Hub: Enviolo Manual Stepless CVT ◦ Shifter: Enviolo twist shifter integrated with the handlebar grip ◦ Drive System: Heavy-duty KMC chain (rust-resistant) ◦ Difference vs Advanced/Pro: Essential uses chain to keep cost lower (no Gates belt) ◦ Chainguard: Fully enclosed, impact-resistant

🛞 Suspension, Brakes & Wheels

◦ Front Fork: SR Suntour Mobie34 CGO Boost 20" Cargo Fork ◦ Travel: 60 mm (absorbs potholes and rough city roads)

◦ Brakes: Magura CMe hydraulic cargo disc brakes (4-piston) ◦ Rotors: Heavy-duty thick steel rotors (front & rear)

◦ Front Wheel: 20" Ryde Andra double-wall + 110×15 thru-axle hub + Schwalbe Super Moto X ◦ Rear Wheel: 26" Ryde Andra double-wall + Schwalbe Super Moto X

◦ Steering System: Revised rigid dual-cable steering linkage designed to work smoothly with the front suspension

🎒 Safety & Ergonomics

◦ Child Harnesses: softer straps + magnetic buckles (one-hand release) ◦ Passive Safety: reflective elements integrated into the EPP box surface ◦ Battery-powered lighting: Lezyne Power E115 (front) + Spanninga Plateo XE (rear) ◦ In-box ambient LED note: LED strip integrated into frame corners is optional via dealer on Essential ◦ Comfort Touchpoints: Selle Royal Rio Plus saddle with rear grab handle + adjustable Ergotec stem + Ergon grips

💥 Key Highlights

◦  New FamilyNext platform: front suspension + redesigned EPP box + upgraded safety structure ◦  Bosch Smart System (BES3) supports eBike Flow + OTA updates ◦  50Nm motor = smooth, easy control for flatter urban riding ◦  Enviolo CVT hub = continuous adjustment, very comfortable ◦  Magura 4-piston cargo brakes = confident stopping under load ◦  Cost-saving heavy-duty chain drive (instead of belt) makes it more accessible

*Noted : For the price of Latte color is 432,990 THB.
