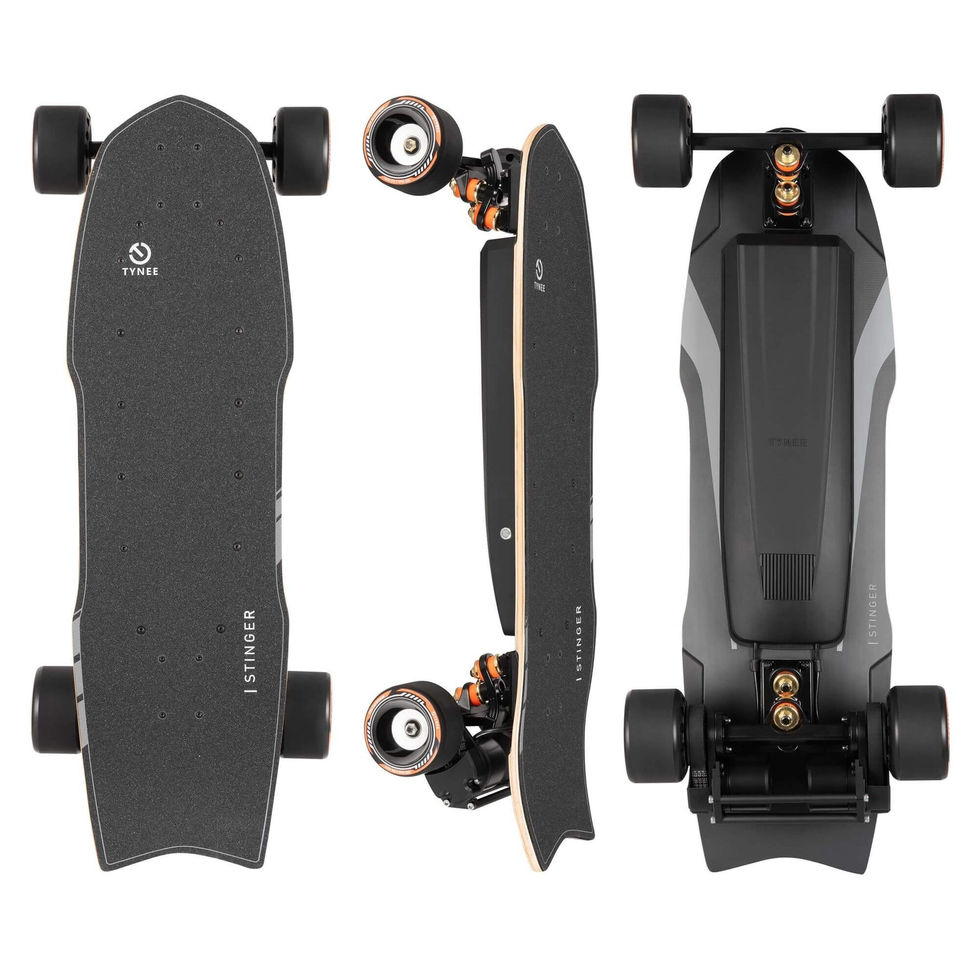

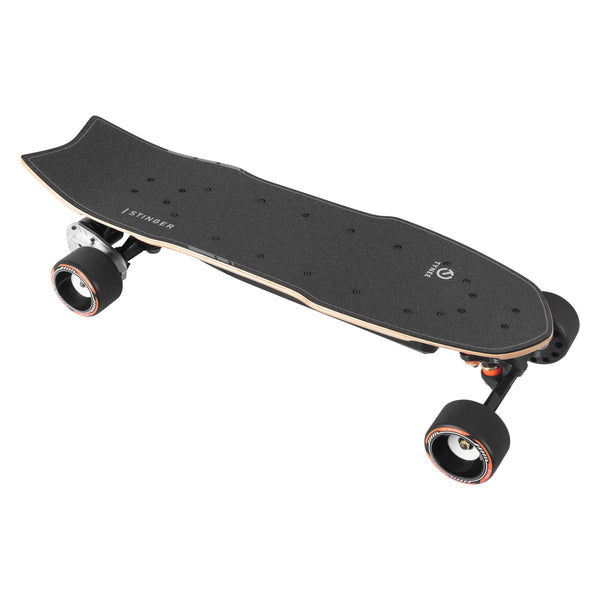

TYNEE - Stinger Long Range Dkp

🛹 TYNEE ULTRA Series – Electric Skateboard

🔥 High Power • Long Range • Belt / Gear Drive Options • DKP Trucks
The Tynee Ultra Series offers multiple powertrain and battery options, ranging from the lightweight 468Wh Belt Drive to the powerful 648Wh Gear Drive version.
With up to 59 km/h top speed, up to 61 km range, strong hill climbing, Hobbywing V7.0 ESC, app support, and DKP trucks, this series is built for riders who want speed, control, and smooth carving performance.

📦 Model Options

◦ 468Wh Belt Drive
◦ 544Wh Belt Drive
◦ 648Wh Belt Drive
◦ 648Wh Gear Drive

🚀 Speed & Range

Top Speed

◦ 468Wh Belt Drive: 36 mph / 59 km/h
◦ 544Wh Belt Drive: 34 mph / 55 km/h
◦ 648Wh Belt Drive: 34 mph / 55 km/h
◦ 648Wh Gear Drive: 34 mph / 55 km/h

Range

◦ 468Wh Belt Drive: 28 miles / 45 km
◦ 544Wh Belt Drive: 33 miles / 53 km
◦ 648Wh Belt Drive: 36 miles / 58 km
◦ 648Wh Gear Drive: 38 miles / 61 km

⚡ Motor & Performance

Hill Climbing

◦ 468Wh Belt Drive: 35%
◦ 544Wh Belt Drive: 55%
◦ 648Wh Belt Drive: 55%
◦ 648Wh Gear Drive: 55%

Motor Power

◦ 468Wh Belt Drive: 1500W × 2
◦ 544Wh Belt Drive: 3000W × 2
◦ 648Wh Belt Drive: 3000W × 2
◦ 648Wh Gear Drive: 3000W × 2

◦ Regenerative Braking: Yes
◦ ESC: Hobbywing V7.0 ESC
◦ Smart Turn On: Supported

🔋 Battery System

Voltage

◦ 468Wh Belt Drive: 54.6V
◦ 544Wh Belt Drive: 50.4V
◦ 648Wh Belt Drive: 50.4V
◦ 648Wh Gear Drive: 50.4V

Battery Pack

◦ 468Wh Belt Drive: 13S2P / 26 Cells
◦ 544Wh Belt Drive: 12S3P / 36 Cells
◦ 648Wh Belt Drive: 12S3P / 36 Cells
◦ 648Wh Gear Drive: 12S3P / 36 Cells

Battery Cells

◦ 468Wh Belt Drive: Samsung 50S
◦ 544Wh Belt Drive: Molicel P42A
◦ 648Wh Belt Drive: Samsung 50S
◦ 648Wh Gear Drive: Samsung 50S

Battery Capacity

◦ 468Wh Belt Drive: 468Wh
◦ 544Wh Belt Drive: 544Wh
◦ 648Wh Belt Drive: 648Wh
◦ 648Wh Gear Drive: 648Wh

🖥️ Controls & Smart Features

◦ Remote: OLED Bluetooth Remote
◦ Mobile App: Supported
◦ Adjustable Settings: Adjustable via App & Remote
◦ Smart Turn On: Supported
◦ Regenerative Braking: Supported

🛞 Wheels, Pulleys & Belts

◦ Wheels: 105 Boosted 72A Soft Wheels

Pulleys

◦ 468Wh Belt Drive: 5M 40T Kegel Pulleys
◦ 544Wh Belt Drive: 5M 40T Kegel Pulleys
◦ 648Wh Belt Drive: 5M 40T Kegel Pulleys
◦ 648Wh Gear Drive: Not Required / Gear Drive

Belts

◦ 468Wh Belt Drive: 5M 265 Belts
◦ 544Wh Belt Drive: 5M 265 Belts
◦ 648Wh Belt Drive: 5M 265 Belts
◦ 648Wh Gear Drive: Not Required / Gear Drive
