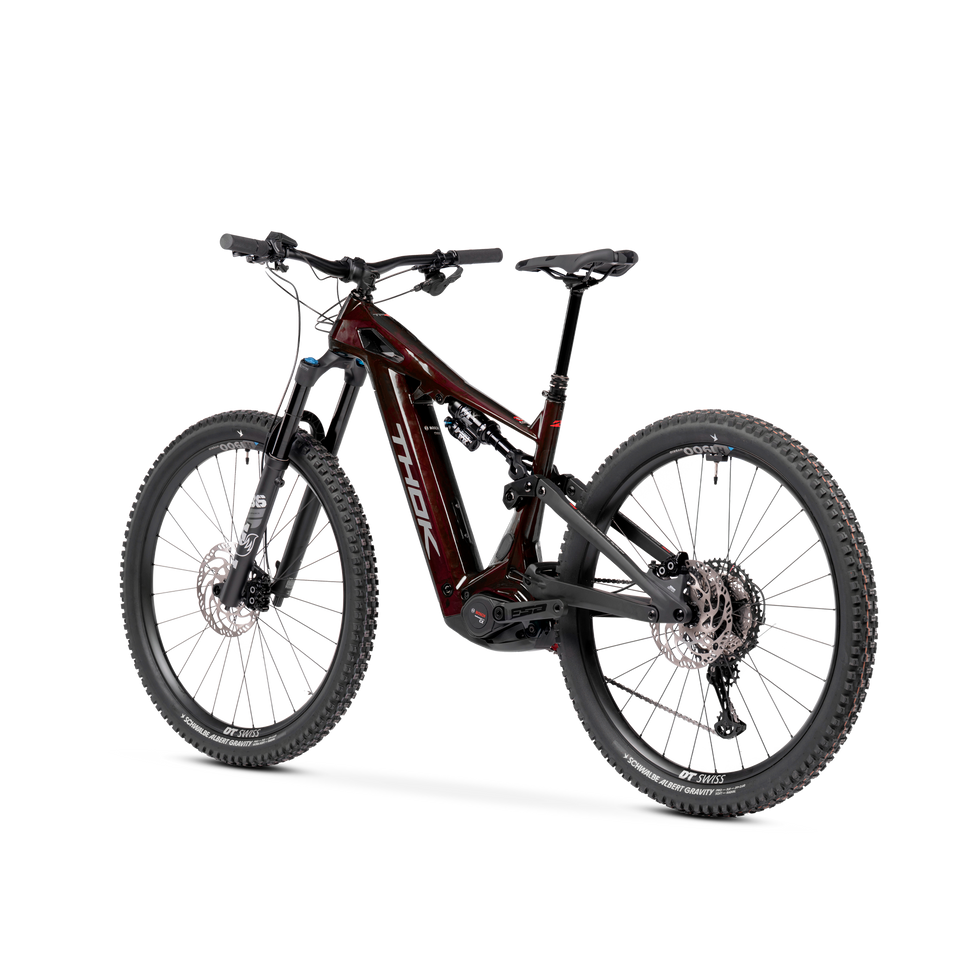

THOK - TP4 S Dragon

THOK – TP4 S Dragon

📦 FRAME

◦ THOK – Unidirectional Full Carbon Fiber ◦ Tapered headtube 1.5” ◦ 29” geometry with flip chip ◦ Compatible with 27.5” wheels ◦ Integrated downtube battery ◦ UDH Hanger technology ◦ Fully enclosed internal cable routing ◦ Fully sealed cartridge bearings ◦ Rear travel: 150 mm

📏 SIZE

◦ S / M / L / XL

⚡ MOTOR & BATTERY

◦ BOSCH Performance Line CX ◦ Power: 250W ◦ Torque: 100 Nm ◦ Internal BOSCH Powertube battery 800 Wh ◦ Compatible with PT600 & PT400 batteries ◦ Optional: Bosch Powermore range extender 250 Wh

🖥️ DISPLAY & SWITCH CONTROL

◦ BOSCH Purion200 ◦ 1.6” LCD color display

🛞 SUSPENSION

Front Fork ◦ FOX 36 Float Performance ◦ 29” Boost ◦ P-S E-Optimized ◦ GRIP damper ◦ 3-position adjustment ◦ Travel: 160 mm ◦ Offset: 44 mm ◦ Tapered steerer: 1.5”

Rear Shock ◦ FOX Float X ◦ 2-position adjustment ◦ THOK custom tuning ◦ Size: 210 × 55 mm

⚙️ COCKPIT

Stem ◦ THOK Alloy ◦ Oversize 35 mm front clamp ◦ Extension: 50 mm

Headset ◦ ACROSS BlockLock 135°

Handlebar ◦ THOK Alloy 6061 ◦ Oversize 35 mm DB ◦ Rise: 20 mm ◦ Width: 780 mm

Grips ◦ THOK Lock-On grips

Seat Clamp ◦ THOK custom CNC alloy 34.9 mm

Seatpost ◦ THOK dropper post, micro height adjustable, remote control  ◦ S = 125 mm  ◦ M = 170 mm  ◦ L / XL = 200 mm

Saddle ◦ THOK Fit in hollow Cr.Mo rail

🛑 BRAKES

◦ MAGURA MT5 ◦ 4-piston calipers ◦ Rotors: MDR-C 203 mm (front & rear)

🔧 DRIVETRAIN

◦ Rear Derailleur: SHIMANO XT 12-speed ◦ Shifter: SHIMANO 12-speed ◦ Cassette: SHIMANO 12-speed 10–51T ◦ Chain: SHIMANO 12-speed ◦ Crankset: FSA 165 mm ◦ Chainring: 34T

🛞 WHEELS & TIRES

Front Wheel ◦ DT-SWISS H1900 Alloy ◦ 29” × 30 mm ◦ Thru-axle: 15×110

Rear Wheel ◦ DT-SWISS H1900 Alloy ◦ 29” × 30 mm ◦ Thru-axle: 12×148 ◦ MS freehub body

Tires ◦ Front: SCHWALBE Albert Gravity Pro 29 × 2.6 – Ultra Soft, TLR ◦ Rear: SCHWALBE Albert Gravity Pro 29 × 2.6 – Soft, TLR

🦿 PEDALS

◦ Flat polyethylene pedals
