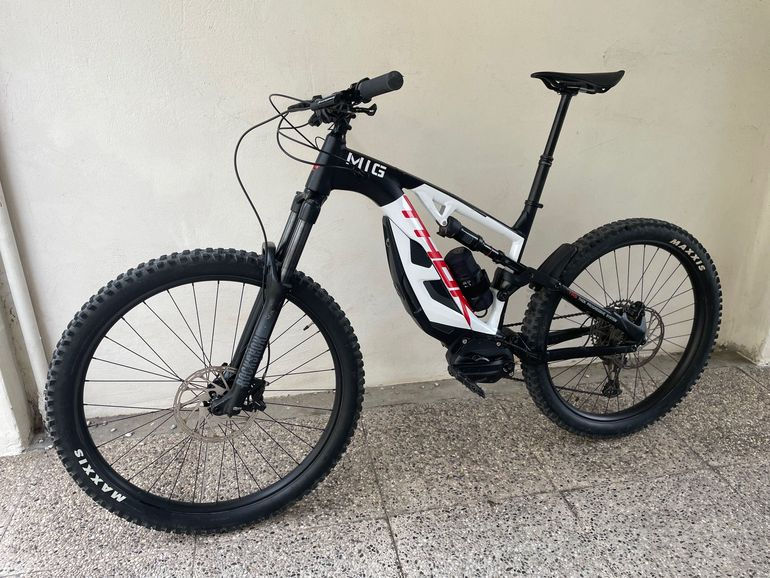

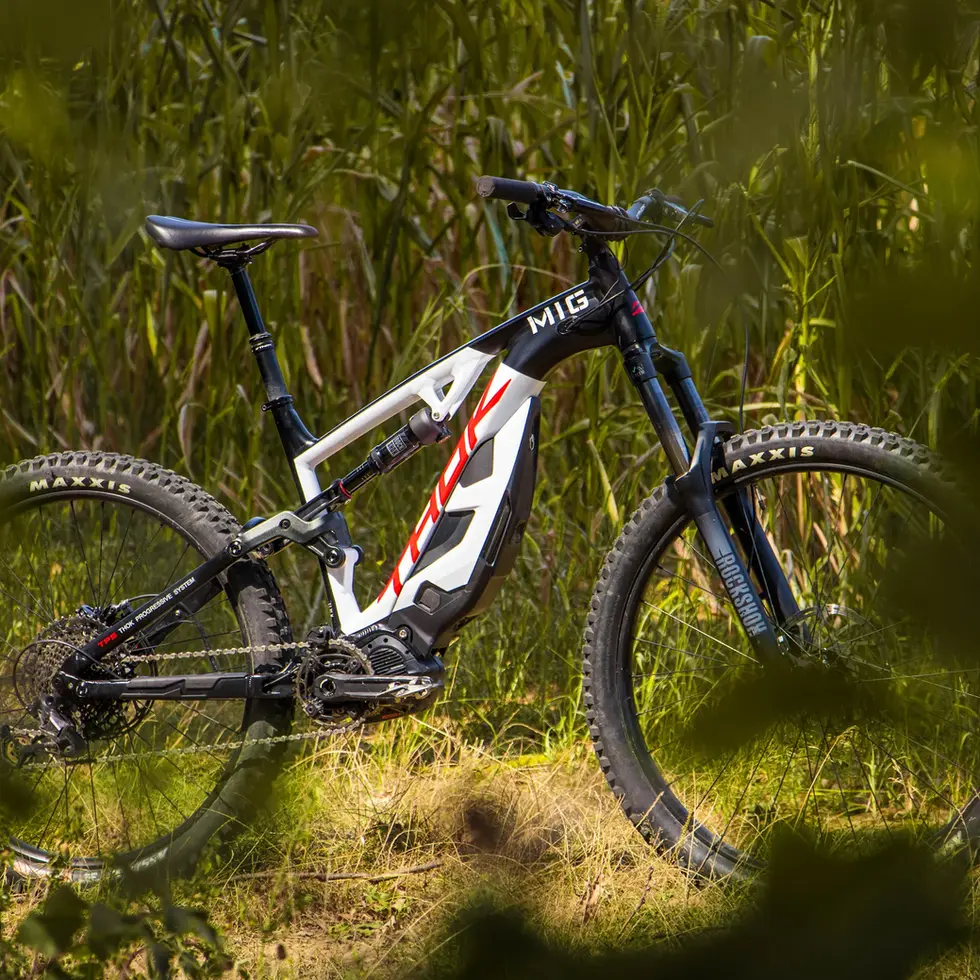

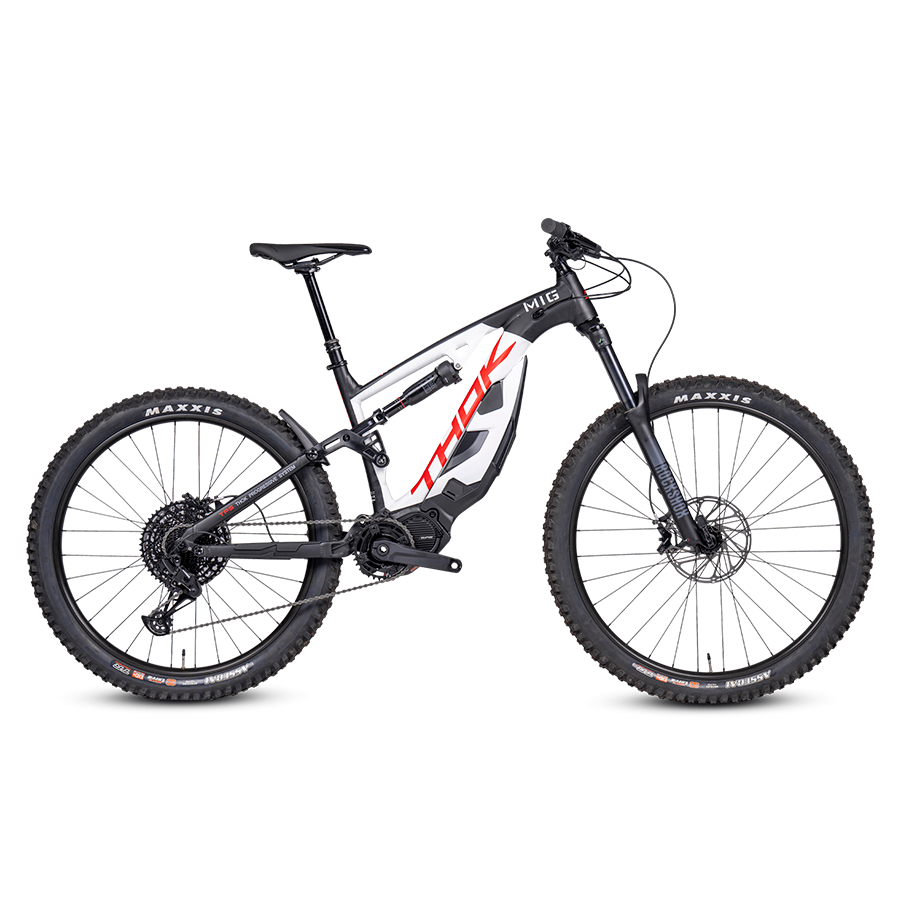

THOK - MIG

🚴‍♂️ THOK – MIG

📦 FRAME

◦ Alloy frame 6061 T4 / T6 ◦ Rear travel: 140 mm ◦ Forged and CNC parts ◦ Hydroformed tubes ◦ Geometry: 29″ / 27.5″ ◦ Semi-integrated battery

📏 SIZES

◦ S / M / L / XL

⚡ POWER SYSTEM (MOTOR & BATTERY)

◦ Motor: SHIMANO STEPS EP6 ◦ Torque: 85 Nm ◦ Rated power: 250W ◦ Battery: Integrated 630 Wh waterproof battery

🖥️ DISPLAY & CONTROL

◦ Cyclo Computer SC-EN600 ◦ 1.4″ color LCD display ◦ Remote control: SW-EN600-L

🛞 SUSPENSION

Front Fork ◦ ROCK SHOX 35 RC ◦ Boost spacing ◦ Travel: 150 mm ◦ Compression adjustable ◦ Rebound adjustable

Rear Shock ◦ ROCK SHOX DELUXE Select R Air ◦ THOK custom tuning ◦ Size: 210 × 55 mm

🛑 BRAKES

◦ SRAM GUIDE T hydraulic brakes ◦ 4-piston calipers ◦ Rotor size: 203 mm (front & rear)

🔧 DRIVETRAIN

◦ Rear Derailleur: SRAM SX Eagle 12-speed ◦ Shifter: SRAM SX Eagle Trigger 12-speed ◦ Cassette: SRAM SX Eagle 12-speed, 11–50T ◦ Chain: SRAM 12-speed ◦ Crankset: FSA 165 mm ◦ Chainring: 34T

🛞 WHEELSET

◦ THOK Drift

Front wheel: ◦ 29″ × 30 mm (Sizes M–L–XL) ◦ 27.5″ × 35 mm (Size S)

Rear wheel: ◦ 27.5″ × 35 mm

⚙️ COCKPIT

Stem ◦ THOK CNC ◦ Oversize 35 mm ◦ Length: 45 mm

Handlebar ◦ THOK oversize 35 mm ◦ Rise: 20 mm

Grips ◦ THOK Lock-On grip

Saddle ◦ THOK Fit with Chromo rails

Seatpost ◦ THOK dropper post  • S = 125 mm  • M–L–XL = 150 mm

🛞 TIRES

◦ MAXXIS Assegai

Front tire: ◦ 29 × 2.6 (M–L–XL) ◦ 27.5 × 2.6 (Size S)

Rear tire: ◦ 27.5 × 2.6

◦ Compound: 3C ◦ Protection: EXO+ ◦ Tubeless Ready (TR)

🦿 PEDALS

◦ NW 482S ◦ Material: Polyethylene
