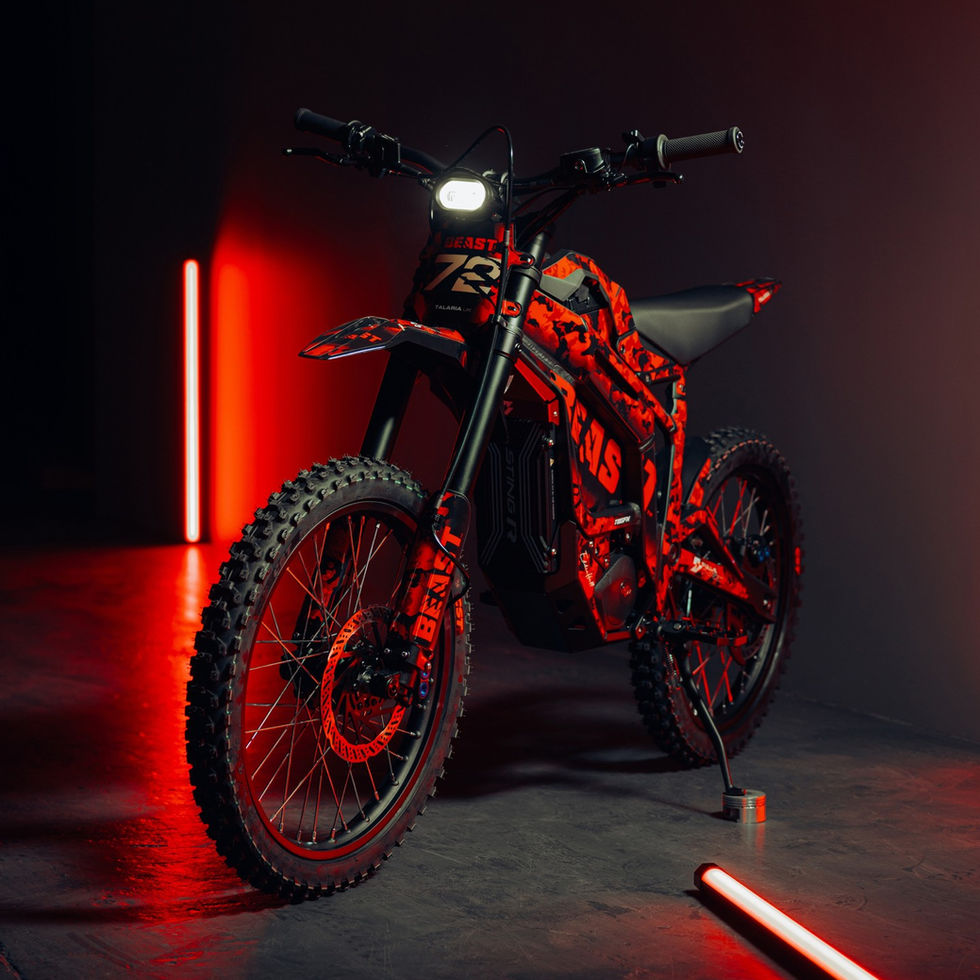

TALARIA - STING MX5 PRO

🚴 TALARIA STING MX5 🚴

⚡The lightweight beast of the off-road world!
IPM motor + internal gearbox delivers 500 Nm torque and 13.4 kW of peak power.
Experience ‘Hyper Mode’ performance — quiet, smooth, and unstoppable on every trail!

⚙️ Highlights & Key Features

◦ Battery: 72 V 40 Ah (Samsung 50S cells) – 2,880 Wh capacity, range up to 100 km
◦ Motor: IPM with Internal Gearbox – 500 Nm torque, smooth and quiet, no belt needed
◦ Power Output: 13.4 kW (peak) / 5.5 kW (continuous)
◦ Ride Modes: 3 levels – Eco / Sport / Hyper for every riding style
◦ Brakes: 4-Piston Hydraulic System with 220 mm × 3 mm discs and DOT master cylinder
◦ Front Fork: Dual Air + Coil Springs – 220 mm travel, fully adjustable
◦ Rear Shock: Adjustable 85 mm travel with linkage system for improved traction
◦ Display: Full-Color TFT – shows speed, battery, voltage, distance and system status
◦ Regenerative Braking: 4-level adjustable with dedicated regen lever
◦ Frame: 6061-T4/T6 forged aluminum – 6-ton press forging, lightweight and durable
◦ Wheels: CNC-machined rims with reinforced spokes for added strength
◦ Extras: CNC black footpegs + new LED headlight design

📦 Vehicle Specifications

◦ Dimensions: 1,880 × 770 × 1,088 mm
◦ Net Weight (with battery): 76 kg
◦ Seat Height: 840 mm
◦ Wheelbase: 1,250 mm
◦ Ground Clearance: 300 mm
◦ Climbing Angle: 45°
◦ Max Load Capacity: 100 kg
◦ Handlebar Width: 760 mm
◦ Wheels: Front 1.4 × 19 / Rear 1.6 × 19 inches
◦ Tires: Front 70/100-19 / Rear 80/100-19 (Off-Road)

⚡ Power & Performance

◦ Operating Voltage: 72 V DC
◦ Top Speed (factory limited): 32 km/h (Unlockable to 80 + km/h)
◦ Maximum Torque: 500 Nm (428 48T sprocket)
◦ Motor Power: 5.5 kW (continuous) / 13.4 kW (peak)
◦ Transmission: Internal gearbox + chain 418-108T / rear sprocket 48T

🔋 Battery & Electronics

◦ Battery: 72 V 40 Ah (Samsung 50S cells)
◦ Display: TFT color screen (showing speed / battery / voltage / distance)
◦ Regenerative Braking: 4-level adjustable + dedicated regen lever
◦ Lighting: LED headlight with built-in switch

🛞 Suspension & Frame

◦ Front Suspension: Air + Dual Spring system, 220 mm travel
◦ Rear Suspension: Adjustable shock, 85 mm travel with link gauge
◦ Frame Material: 6061 Aluminum Alloy T4/T6
◦ Manufacturing: Forged under 6,000 tons + anodized finish

⚙️ Motor System

◦ Type: DC IPM (Interior Permanent Magnet Motor)
◦ Mount Position: Mid-mounted
◦ Cooling: Air-cooled
◦ Drive: Gearbox (no belt system)

💥 MX5 vs MX4 Improvements

✅ Larger 4-piston brake calipers for enhanced stopping power
✅ Finer front and rear suspension adjustment range
✅ New exclusive “Hyper” mode for maximum output
✅ New internal gear system – quieter and maintenance-free (no belt)
✅ CNC rims with reinforced spokes for stronger wheel integrity
