Y-VOLT - Surge V
฿299,900.00
🏍️ SURGE V (2026 Model Year)
🔥 Premium off-road beast — high-end engineering + full carbon-style details!
📦 General Information
◦ Model: SURGE V (2026)

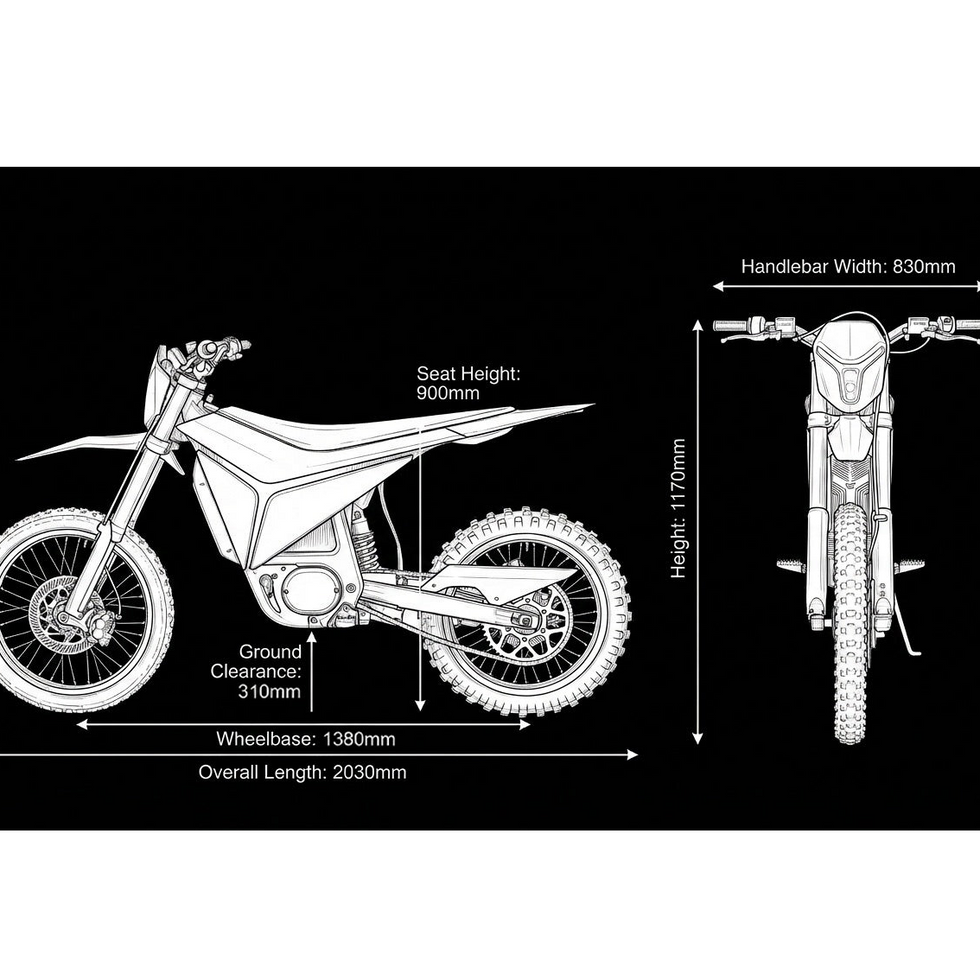

◦ Dimensions (L × W × H): 2000 × 830 × 1170 mm
◦ Weight (with battery): 205 lbs (≈ 93 kg)
◦ Max Load: 265 lbs (≈ 120 kg)
◦ Recommended Rider Age: 18–55 years old
⚡ Motor & Performance
◦ Motor Type: Permanent Magnet Synchronous Motor (PMSM)
◦ Peak Power: 35 kW (≈ 48 HP)
◦ Rated Power: 15 kW
◦ Rear-Wheel Torque: 700 ft-lbs
🔋 Battery System
◦ Battery Capacity: 4.32 kWh
◦ Voltage: 97.2 V
◦ Type: Removable Ternary Lithium Battery
◦ Battery Cells: Samsung 50S
◦ Continuous Discharge Current: 154.32 A
◦ Charge Time: 3 hours
🔌 Charger
◦ Charging Power: 15 A
◦ Input: 110/240 V — 50/60 Hz
◦ Output Voltage: DC 113.4 V
◦ Output Current: 15 A
🧠 Controller
◦ Type: 96V Sine Wave Vector Controller
🧱 Frame
◦ Triple-Beam Forged Aluminum Alloy Frame
🦿 Wheels & Tires
◦ Front Tire: 80/100-19 49M TT NHS CST
◦ Rear Tire: 100/90-18 56M TT NHS CST
⚙️ Drivetrain
◦ Primary Drive: Gearbox
◦ Secondary Drive: Chain
⛓️ Chain
◦ Spec: 520 pitch, 180 links, O-ring
◦ Use: Off-road
🔌 Communication Port
◦ RS-485 + CAN
🦾 FASTACE Suspension
◦ Front Suspension:
◦ Total Length: 830 mm
◦ Outer Tube Diameter: 50 mm
◦ Stanchions: 38 mm
◦ Travel: 245 mm
◦ Damping: Hydraulic
◦ Adjustments: Rebound + High/Low-Speed Compression
◦ Rear Suspension:
◦ Rear Wheel Travel: 300 mm
◦ Shock Stroke: 85 mm
◦ Spring Type: Coil-spring
◦ Damping: Hydraulic + Gas damping
◦ Adjustments: Compression + Rebound
🛑 Braking System
◦ Front Brake: 4-piston caliper + 220 mm hydraulic disc
◦ Rear Brake: 4-piston caliper + 220 mm hydraulic disc
📐 Geometry
◦ Rake: 27.3°
🧰 Handlebar
◦ Spec: ∅28.6 × ∅22.1 × 810 — Aluminum alloy
💡 Lighting System
◦ Full LED (High & Low beam)
🖥️ Display
◦ HD Smart Multi-Function Display
✅ Other Features
◦ Tip-Over Sensor: Yes
◦ Kickstand Sensor: Yes
◦ NFC: Yes
◦ Night Riding Mode: Yes
◦ Vehicle Lock Cover: Carbon Fiber
◦ Rear Handle Bar: Carbon Fiber
