🚵‍♂️ Specialized S-Works Turbo Levo 4 (2026 Model Year)

🔥 Flagship e-MTB — 111Nm torque, 840Wh battery, FOX Factory suspension, and SRAM XX Transmission.

The Specialized S‑Works Turbo Levo 4 (2026) is a top-tier electric mountain bike from Specialized Bicycle Components. Designed for aggressive Trail and Enduro riding, it combines a powerful 850W motor, a new S-Works carbon frame, adjustable geometry, and world-class components including FOX Factory suspension and SRAM XX Eagle Transmission.

📦 General Information

◦ Model: Specialized S-Works Turbo Levo 4 (2026)
◦ Type: Electric Mountain Bike (Full Suspension e-MTB)
◦ Frame: Levo 4 Carbon Frame with SWAT Storage
◦ Rear Travel: 150 mm (supports forks up to 180 mm)
◦ Battery System: Side-Entry Removable Battery
◦ Adjustable Geometry:
  • Head Angle
  • Bottom Bracket Height
  • Chainstay Length

◦ Approximate Weight: 23.68 kg (Size S4)

◦ Certifications:
  • UL 2849
  • UL 2271

⚡ Motor & Electrical System

◦ Motor: Specialized 3.1 S-Works Motor

◦ Maximum Torque: 111 Nm

◦ Maximum Power Output: 850 W

◦ Battery: Specialized Turbo X2 — 840Wh

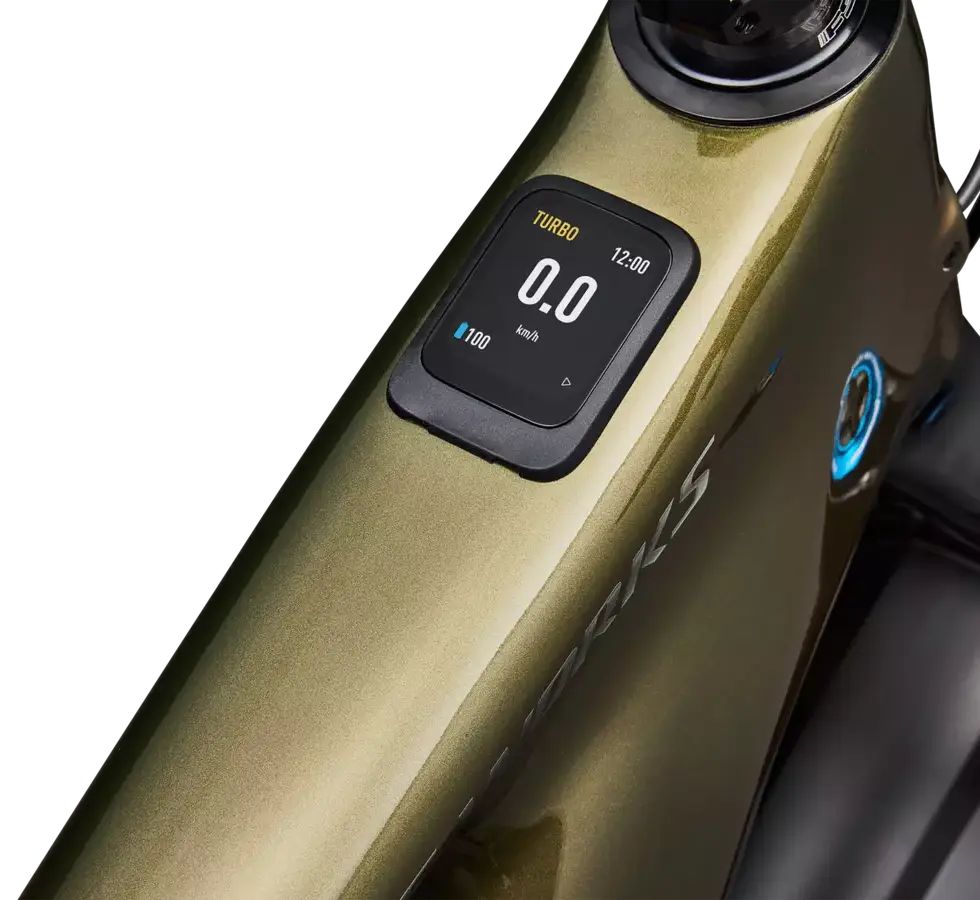

◦ Display: MasterMind TCU 2.2″ High-Resolution Display

◦ Connectivity:
  • Specialized App Integration
  • Apple Find My support

◦ Charger: Specialized 12A Smart Charger

◦ Charging Modes:
  • Standard
  • Fast
  • Eco
  • Charge Limit to 80%

🛞 Suspension System

◦ Front Fork: FOX FLOAT 38 Factory

  • Damper: GRIP X2
  • Travel: 160 mm

  • Adjustments:
– High-Speed Compression
– Low-Speed Compression
– Rebound

◦ Rear Shock: FOX Float X Factory

  • Technology: GENIE Shock Tech

◦ Rear Shock Size: 210 × 55 mm

◦ Suspension Tune: Ride Dynamics Trail Tune + LSR Adjustment

🛑 Braking System

◦ Front Brake: SRAM Maven Ultimate — 4-Piston

  • Rotor: 220 mm HS2

◦ Rear Brake: SRAM Maven Ultimate — 4-Piston

  • Rotor: 200 mm HS2

⚙️ Drivetrain

◦ Controller: SRAM AXS POD Ultimate (Wireless)

◦ Rear Derailleur: SRAM XX Eagle Transmission

◦ Cassette: SRAM XX Transmission XS-1297 (10-52T)

◦ Chain: SRAM XX T-Type

◦ Crankset: SRAM XX Carbon Crank — 160 mm

◦ Chainring: SRAM 34T T-Type

🛞 Wheels & Tires

◦ Front Wheel: Roval Traverse HD Carbon — 29″

  • Hub: DT Swiss 240

◦ Rear Wheel: Roval Traverse HD Carbon — 27.5″

  • Hub: DT Swiss 240

◦ Rim: Hookless Carbon Rim

  • Inner Width: 30 mm

◦ Front Tire: Butcher GRID GRAVITY — 29 × 2.4″

◦ Rear Tire: Butcher GRID GRAVITY — 27.5 × 2.4″

◦ Tubeless Ready: Yes

🧩 Cockpit & Components

◦ Stem: Industry 9 Mountain Stem — 40 mm

◦ Handlebar: Race Face Era Carbon

  • Width: 800 mm

◦ Grips: Deity Lockjaw

◦ Saddle: Specialized Power Pro Mirror

  • Titanium Rails

◦ Seatpost: FOX Transfer NEO Factory Dropper

🎒 Accessories

◦ Storage System: SWAT Internal Downtube Storage

💥 Key Highlights

◦ 111 Nm S-Works motor — most powerful in the Turbo Levo series
◦ 840Wh battery for long range + fast 12A charging
◦ MasterMind TCU smart display with Find My tracking
◦ FOX Factory suspension race-level performance
◦ SRAM XX Transmission wireless drivetrain
◦ Roval carbon wheels + DT Swiss 240 hubs
◦ Fully adjustable geometry to match different riding styles
