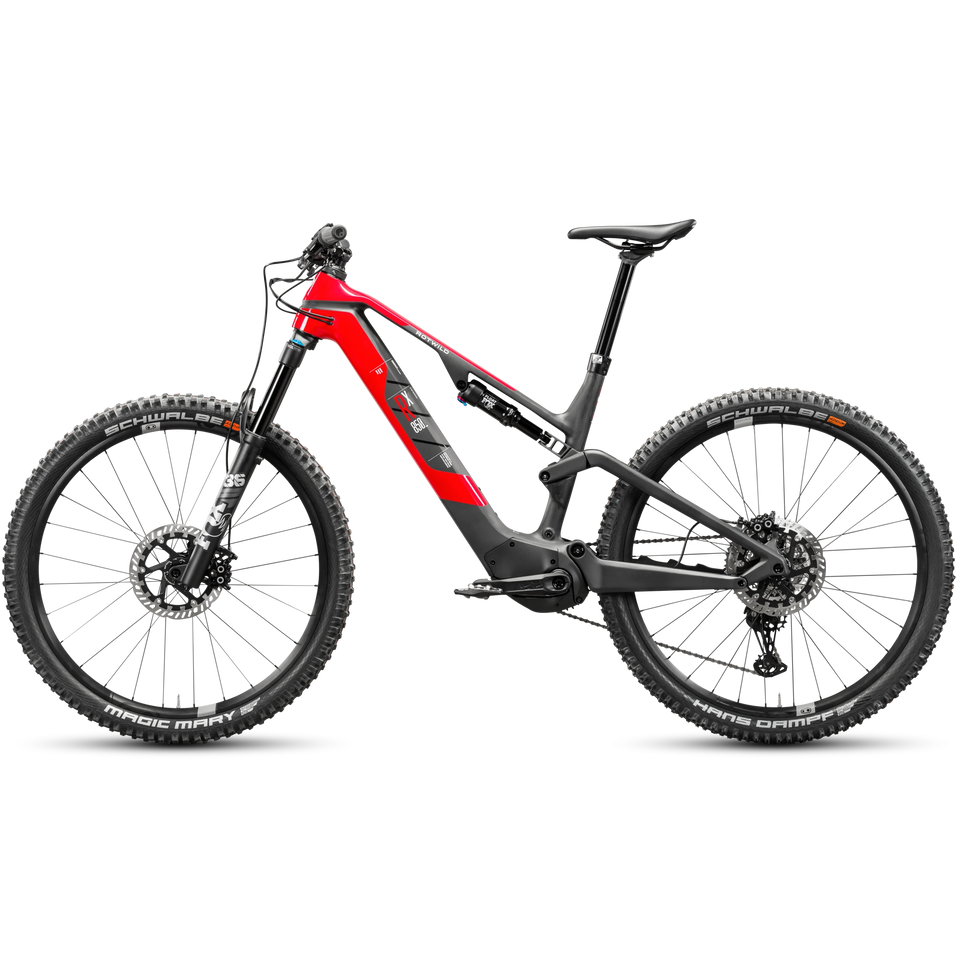

ROTWILD - R.X850 CORE

🏍️ ROTWILD R.X850 CORE — 2026 Model Year

🔥 High-modulus carbon Trail / All-Mountain e-MTB built to ride hard — Shimano EP801 (85Nm) + 820Wh removable battery, FOX 150mm suspension, Shimano XT 12-speed, and Magura MT5 brakes with 203mm rotors.

📦 General Information

◦ Model: ROTWILD R.X850 CORE (2026) ◦ Type: Carbon e-MTB (Trail / All-Mountain) ◦ Frame: High Modulus Carbon + Carbon Linkage ◦ Approved Total Weight: ASTM4 — 130 kg

🦾 Frame & Suspension

◦ Frame: High Modulus Carbon ◦ Rear Linkage: Carbon Linkage

◦ Front Fork: FOX 36 Float Performance ◦ Travel: 150 mm ◦ Damper: GRIP ◦ Adjustments: 3-Pos Micro Adjust

◦ Rear Shock: FOX Float DPS Performance ◦ Size: 210 × 52.5 mm ◦ Adjustments: 3-Position (3-Pos)

◦ Headset: ACROS RW735 1.5

⚡ Motor & Battery System

◦ Motor: Shimano EP801 ◦ Torque: 85 Nm ◦ Max Power: Up to 600 W

◦ Battery: IPU820 Carbon – Push+ ◦ Capacity: 820 Wh ◦ Voltage: 36 V ◦ Cell Type: 21700 ◦ Battery Weight: 3,560 g ◦ Removal System: QR Button (quick-release)

⚙️ Drivetrain

◦ Crankset: e*thirteen Plus ◦ Crank Length: 160 mm (S) / 165 mm (M/L) / 170 mm (XL) ◦ Chainring: e*thirteen Direct Mount 34T ◦ Chain Guide: e*thirteen Plus

◦ Shifter: Shimano XT 8100 (I-Spec EV) ◦ Rear Derailleur: Shimano XT 8100 SGS ◦ Chain: Shimano HG 7100 (12-speed) ◦ Cassette: Shimano CS 6100 (12-speed) 10–51T

🛑 Braking System

◦ Front Brake: Magura MT5 ◦ Front Rotor: Magura MDR-P 203 mm ◦ Rear Brake: Magura MT5 (Shiftmix) ◦ Rear Rotor: Magura MDR-P 203 mm

🦿 Wheels & Tires

◦ Wheelset: Crankbrothers Synthesis Enduro ◦ Front Wheel: 31.5 mm internal / 110–15 mm / 6-bolt ◦ Rear Wheel: 29.5 mm internal / 148–12 mm / 6-bolt

◦ Front Tire: Schwalbe Magic Mary Evo ◦ Spec: Super Ground / Soft / TLE / 29×2.4 ◦ Rear Tire: Schwalbe Hans Dampf Evo ◦ Spec: Super Trail / Soft / TLE / 29×2.35

🧩 Cockpit

◦ Handlebar: e*thirteen Plus — 20 mm rise / 780 mm width ◦ Stem: e*thirteen Plus 35 — 50 mm length ◦ Grips: Ergon GD10 Slim Factory Frozen

🪑 Seat & Seatpost

◦ Seatpost: 8PINS H01 ◦ Travel: Up to 200 mm (XL) ◦ Saddle: Ergon SM Sport

🔌 Accessories

◦ Charger: ROTWILD 4.5A

💥 Key Highlights

◦ High-modulus carbon frame + carbon linkage — light, stiff, and very composed on trails ◦ Shimano EP801 85Nm — smooth, natural power with strong climbing ability ◦ 820Wh removable battery with QR release — long rides without range stress ◦ FOX 36 150mm + DPS Performance — 3-mode tuning for real trail control ◦ Shimano XT 12-speed + 10–51T — big gear range for steep climbs ◦ Magura MT5 + 203mm rotors — confident braking on fast descents ◦ Schwalbe Magic Mary / Hans Dampf — trail/enduro grip you can trust
