ROTWILD - R.X1000 PRO

🚵‍♂️ ROTWILD R.X1000 PRO (2026 Model Year)

🔥 Premium Full-Power e-MTB — Full Carbon Frame + Pinion MGU Integrated Gearbox for Serious Off-Road Performance

The ROTWILD R.X1000 PRO (2026) is a high-end full-power electric mountain bike built for demanding riders who want maximum durability, long range, and cutting-edge drivetrain technology. Featuring a fully integrated Pinion MGU gearbox motor system, this bike is designed for real trail, enduro, and all-mountain riding.

📦 General Information

◦ Model: ROTWILD R.X1000 PRO (2026)
◦ Type: Full Power Electric Mountain Bike (e-MTB)

◦ Usage Standard: ASTM4
◦ Max Total Weight (Rider + Bike + Gear): 130 kg

⚡ Motor & Battery

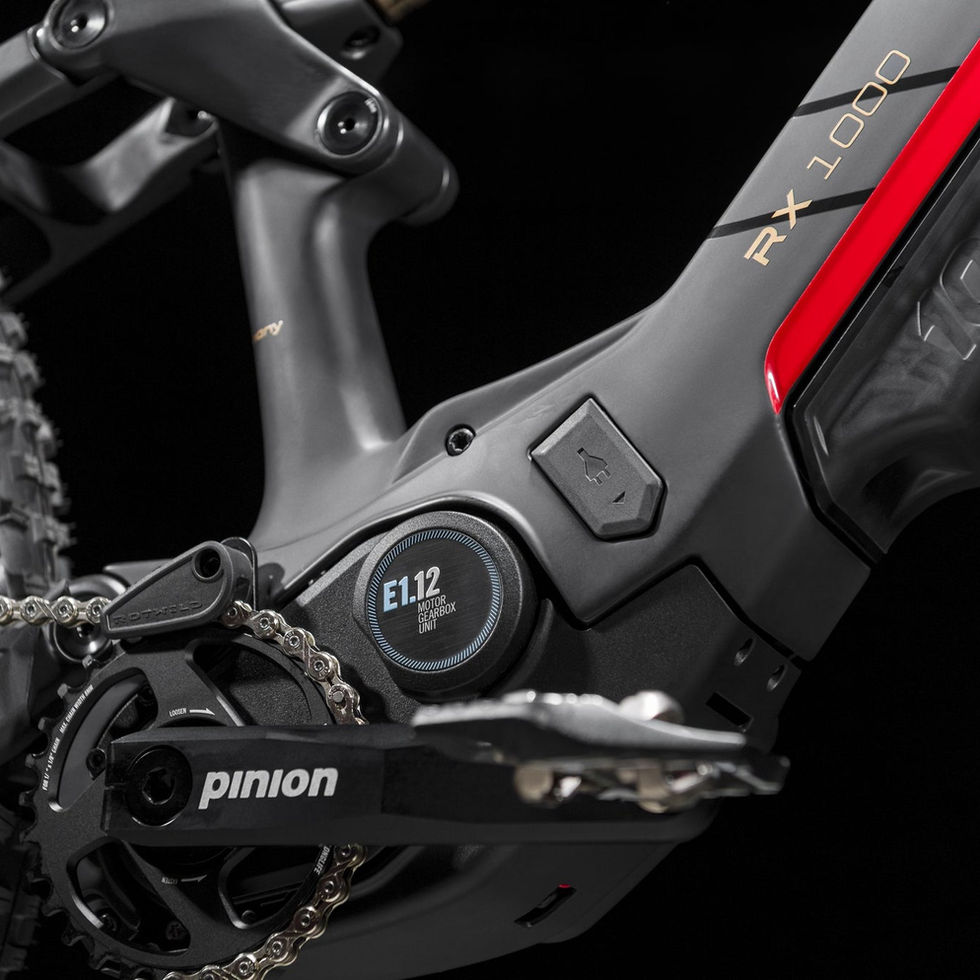

◦ Motor: PINION E1.12 MGU (Motor Gearbox Unit)

◦ Max Power: 600W
◦ Torque: 85Nm

◦ Drivetrain System:
   • Integrated 12-Speed Gearbox
   • Fully enclosed system for durability and low maintenance

🔋 Battery System

◦ Battery: IPU1000 Ultracore
◦ Capacity: 1,060Wh
◦ Voltage: 48V
◦ Cell Type: 21700 Cells

◦ Battery Weight: 4.7 kg
◦ Locking System: ABUS Integrated Lock

◦ Charger: FIT 4.8A

🪶 Frame

◦ Frame Material: High Modulus Carbon
◦ Linkage: Carbon Linkage System
◦ Headset: ACROS RW750 1.5

🛞 Suspension System

◦ Front Fork: FOX 36 Float Performance
   • Travel: 150 mm
   • GRIP Damper
   • 3-Position Adjustment

◦ Rear Shock: FOX Float X Performance
   • Size: 205 × 60 mm
   • 2-Position Adjustment

🛑 Braking System

◦ Front Brake: MAGURA MT5 (4-Piston)
◦ Rear Brake: MAGURA MT5 (4-Piston)

◦ Front Rotor: MAGURA MDR-P 203 mm
◦ Rear Rotor: MAGURA MDR-P 203 mm

⚙️ Drivetrain

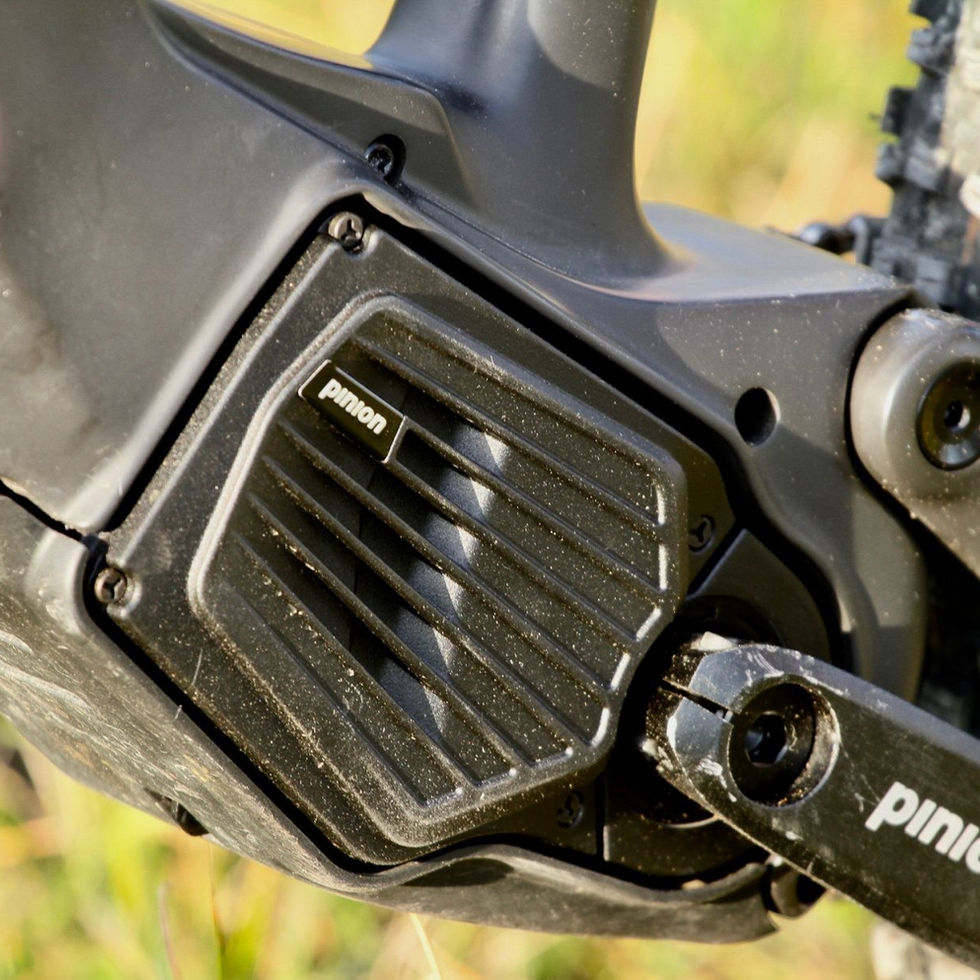

◦ System: PINION Integrated 12-Speed Gearbox

◦ Shifter: PINION TE1
◦ Chain: PINION X1 Longlife

◦ Chainring: 30T
◦ Rear Cog: 24T

◦ Crankset: PINION
   • 165 mm (S, M)
   • 170 mm (L, XL)

◦ Chain Guide: ROTWILD R.1000

🛞 Wheels & Tires

◦ Front Wheel: DT SWISS H1900 Spline
   • Size: 29"
   • Inner Width: 30 mm
   • Hub: 15×110 mm

◦ Rear Wheel: DT SWISS H1900 Spline (Mullet Setup)
   • Size: 27.5"
   • Inner Width: 30 mm
   • Hub: 12×142 mm

◦ Front Tire: Schwalbe Magic Mary Evo
   • Size: 29 × 2.4

◦ Rear Tire: Schwalbe Hans Dampf Evo
   • Size: 27.5 × 2.6

🧩 Cockpit & Components

◦ Handlebar: ROTWILD B280
   • Width: 780 mm
   • Rise: 15 mm
   • Diameter: Ø35 mm

◦ Stem: ROTWILD S140
   • Length: 50 mm

◦ Grips: ERGON GD10

🪑 Saddle & Seatpost

◦ Saddle: ERGON SM SPORT

◦ Seatpost: Crankbrothers Highline 3 Dropper
   • Diameter: 34.9 mm
   • Travel:
   • S: 125 mm
   • M / L / XL: 150 mm

⚖️ Key Highlights

◦ PINION MGU system with integrated 12-speed gearbox
◦ 85Nm torque + 600W max power for real off-road performance
◦ Massive 1,060Wh battery for long-range riding
◦ High modulus carbon frame — strong and lightweight
◦ FOX Performance suspension (front & rear)
◦ MAGURA MT5 4-piston braking system
◦ Mullet wheel setup (29 / 27.5) for control + agility
◦ Premium Schwalbe trail/enduro tires
◦ Sealed drivetrain — low maintenance and long lifespan
◦ Ideal for Trail / Enduro / All-Mountain riding
