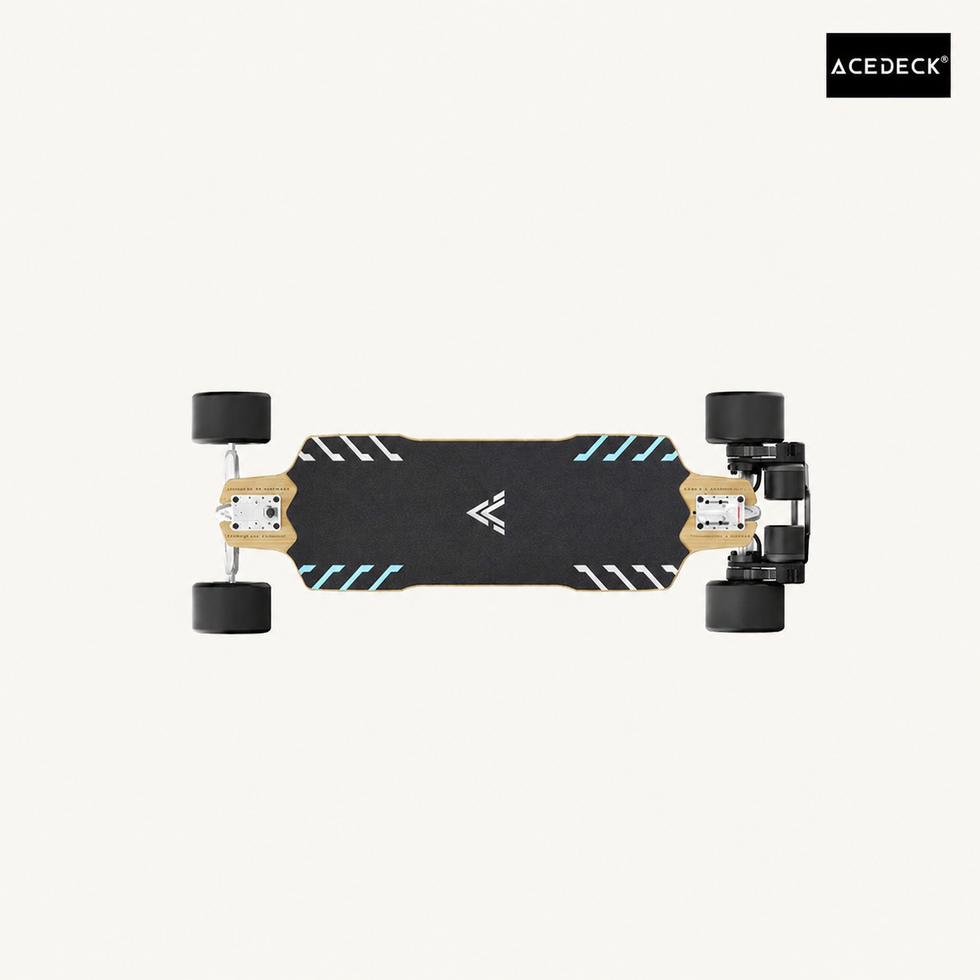

🛹 ACEDECK NOMAD N1 VIOLET – Electric Skateboard

🔥 Violet Edition • Belt / Gear / 2-in-1 Gear Drive • 1036Wh Battery • Up to 64 km Range The Acedeck Nomad N1 Violet is a versatile high-performance electric skateboard designed for riders who want multiple drive options, strong hill climbing, and premium all-terrain capability. Available in Belt Drive, AT Gear Drive, and 2-in-1 Gear Drive, the N1 Violet combines powerful motors, regenerative braking, a multi-layer composite deck, and multiple wheel setups for street, all-terrain, and hybrid riding.

📦 Model Options

◦ Belt Drive — 125mm MAD MAX ◦ AT Gear Drive — 180mm AT ◦ 2-in-1 Gear Drive — 85mm Street + 160mm AT

🚀 Performance

Top Speed

◦ Belt Drive: 65 km/h / 40 mph+ ◦ AT Gear Drive: 65 km/h / 40 mph+ ◦ 2-in-1 Gear Drive: 65 km/h / 40 mph ◦ Test Setup for 2-in-1: By 160mm wheel

Official Range

◦ Belt Drive: Up to 40 miles / 64 km ◦ AT Gear Drive: Up to 30 miles / 48 km ◦ 2-in-1 Gear Drive: Up to 32 miles

Hill Climbing

◦ All Versions: 46%

Max Load

◦ All Versions: 150 kg

⚡ Motor & Power System

FOC-ESC

◦ Bus Current: 70A ◦ Phase Current: 120A

Motor

◦ Belt Drive: 6374 170KV ◦ AT Gear Drive: 6374 170KV ◦ 2-in-1 Gear Drive: Acedeck® VORTEX™ Motor 6475 170KV ◦ 2-in-1 Motor Description: In-house developed, high-performance motor

Motor Power

◦ Rated Power: 3000W × 2 ◦ Peak Power: 3500W × 2

Additional Power Specs

◦ Pole Pair: 7 ◦ Torque: 45 Nm ◦ Temperature Comfort Zone: -20°C to 45°C ◦ Braking: Regenerative Braking, adjustable 10–100%

🔋 Battery System

Battery Pack

◦ Belt Drive: 14S4P EVE 50E ◦ AT Gear Drive: 14S4P Samsung 50S ◦ 2-in-1 Gear Drive: 14S4P Samsung 50S

Battery Capacity

◦ All Versions: 20Ah / 1036Wh

🔌 Charging

◦ Charger Output: 58.8V 4A ◦ Charger Input: AC 110V–240V ~ 50/60Hz Max 3.0A ◦ Standard Charge Time: 4–5 hours ◦ 350W / 6A Charge Time: 3–4 hours ◦ Remote Charging Input: 5V 1A ◦ Note: Please use the official charging cable only.

⚙️ Drive System

Drive Mode

◦ Belt Drive: Belt Drive ◦ AT Gear Drive: Gear Drive ◦ 2-in-1 Gear Drive: 2-in-1 Gear Drive

Gear Ratio

◦ Belt Drive: 3 ◦ AT Gear Drive: 4 ◦ 2-in-1 Gear Drive: 2.8

Belt Size

◦ Belt Drive: 300-5M ◦ AT Gear Drive: Not Required / Gear Drive ◦ 2-in-1 Gear Drive: Not Required / Gear Drive

🛻 Truck System

Truck Type

◦ Belt Drive: Precision DKP Trucks ◦ AT Gear Drive: Precision DKP Trucks ◦ 2-in-1 Gear Drive: Precision TKP Trucks

Truck Width

◦ All Versions: 350 mm / 13.8 inches wide

Axle Diameter

◦ All Versions: 10 mm

Bushing Durometer

◦ Belt Drive / AT Gear Drive: 99A Black Cylinder + 99A Black Conical ◦ 2-in-1 Gear Drive: White 95A 16mm

🛞 Wheels & Tires

Belt Drive

◦ Wheels: Exclusive Acedeck Designed 125mm MAD MAX ◦ Wheel Range: 90–135 mm ◦ Wheel Range Note: With its stock pulley and belts ◦ Pulley / Adapter: 45T ◦ Recommended PSI: Not Required

AT Gear Drive

◦ Wheels: AT 7-Inch Tires ◦ Tire Size: 180 × 65 mm ◦ Hub: CNC Aluminum Hub ◦ Wheel Range: 150–200 mm ◦ Pulley / Adapter: Not Required / Gear Drive ◦ Recommended PSI: 25–40 PSI

2-in-1 Gear Drive

◦ Wheels: 85mm Boosted Street Wheels + 160mm AT Tires ◦ AT Hub: CNC Aluminum Hub ◦ Wheel Range: 85–160 mm ◦ Pulley / Adapter: Kegel Adapter / ABEC Adapter ◦ Recommended PSI: Not Required
