🛹 ACEDECK NYX Z1 STREET 2025 – Electric Skateboard

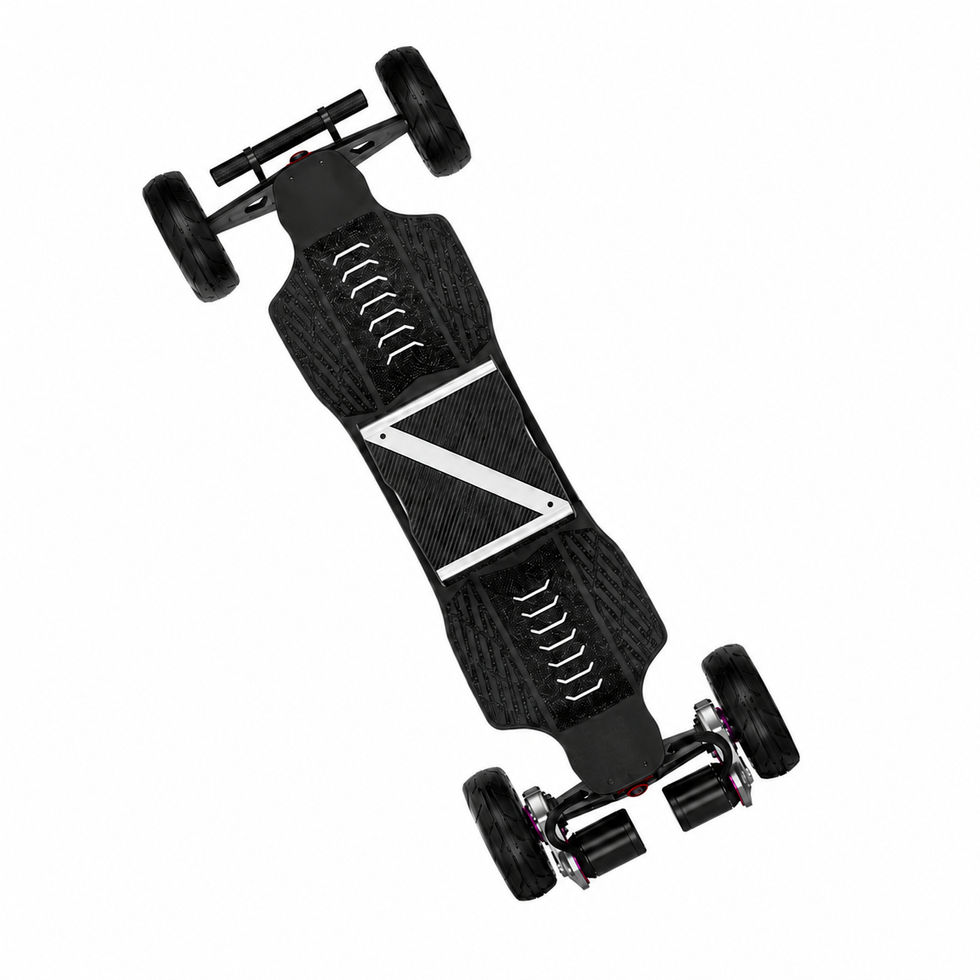

🔥 Gear Drive • 55 km/h Top Speed • 60 km Range • Precision CNC Trucks The Acedeck NYX Z1 Street 2025 is a high-performance street electric skateboard designed for riders who want strong torque, stable handling, and long-range riding. With dual DXW 6384 150KV motors, a 14S4P 1036Wh battery, precision CNC trucks, and 7-inch pneumatic wheels, the NYX Z1 Street is built for powerful city riding, carving, and street adventure.

📦 General Information

◦ Model: NYX Z1 Street ◦ Year: 2025 New ◦ Type: Street / All-Terrain Electric Skateboard ◦ Drive Mode: Gear Drive ◦ Deck Material: Multi-Layer Composite Deck ◦ Max Load Capacity: 150 kg ◦ Board Weight: 18.25 kg

🚀 Performance

◦ Top Speed: 55 km/h / 37 mph ◦ Test Setup: By 180 mm wheels ◦ Official Range: Up to 60 km / 37 miles ◦ Hill Climbing Ability: 50% ◦ Torque: 65 Nm ◦ Temperature Comfort Zone: -20°C to 45°C

⚡ Motor & Power System

◦ Motor: DXW 6384 150KV ◦ Rated Motor Power: 3500W × 2 ◦ Peak Motor Power: 4500W × 2 ◦ Pole Pair: 7

FOC-ESC

◦ Bus Current: 120A ◦ Phase Current: 145A

🔋 Battery System

◦ Battery Pack: 14S4P ◦ Battery Capacity: 20Ah / 1036Wh

🔌 Charging

◦ Charger Output: 240W / 58.8V 4A ◦ Charger Input: AC 110V–240V ~ 50/60Hz Max 3.0A ◦ Standard Charge Time: 4–5 hours ◦ 350W / 6A Charge Time: 3–4 hours ◦ Remote Charging Input: 5V 1A

⚙️ Drive System

◦ Drive Mode: Gear Drive ◦ Gear Ratio: 4 ◦ Belt Size: Not Required / Gear Drive System

🛻 Truck System

◦ Truck Type: Precision CNC Trucks ◦ Truck Width: 405 mm / 16 inches ◦ Axle Diameter: 12 mm

Bushing Durometer

◦ Front Bushing: White 75A ◦ Rear Bushing: Red 85A

🛞 Wheels & Tires

◦ Wheels: AT 7-Inch Pneumatic Wheels ◦ Tire Size: 180 × 65 mm ◦ Wheel Range: 160–200 mm ◦ Recommended Tire Pressure: 25–40 PSI ◦ Pulley / Adapter: Not Required / Gear Drive Setup
