PRE-ORBER - Ares X3 GEAR

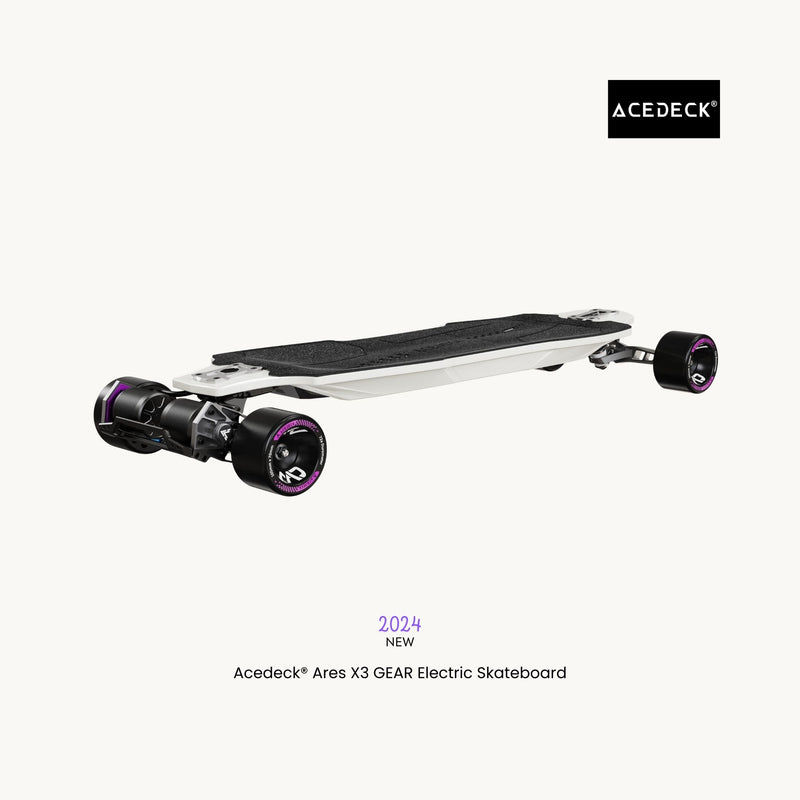

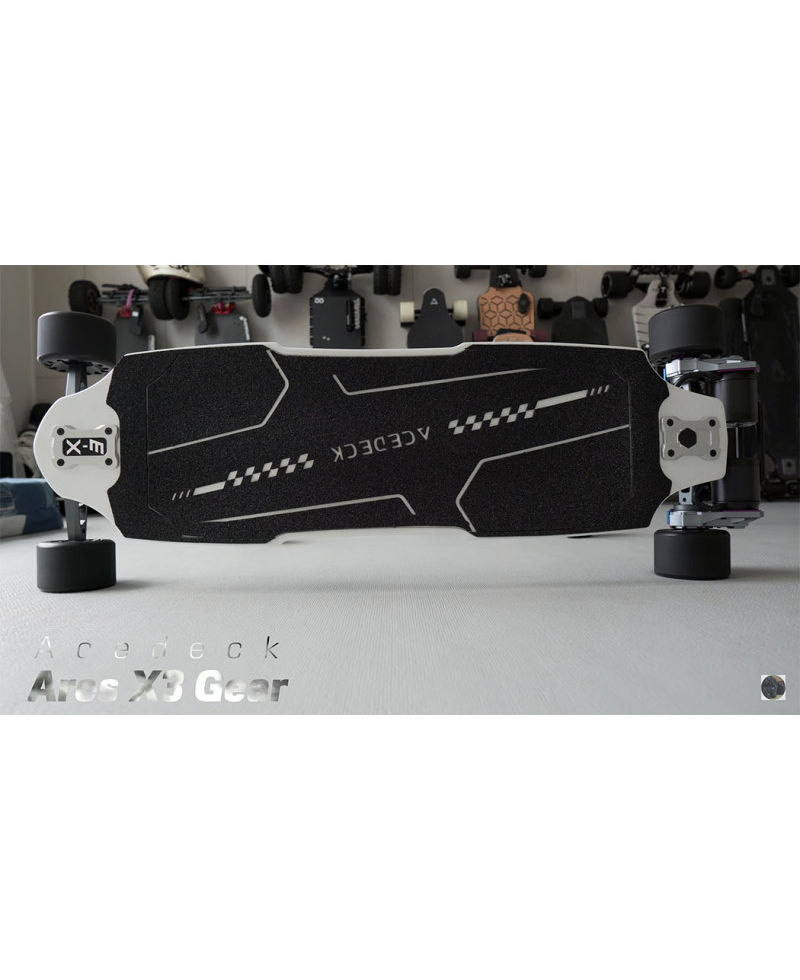

🛹 ACEDECK ARES X3 GEAR – Electric Skateboard

🔥 High-Performance Street Board • Gear Drive • T700 3K Carbon Fiber • 60 km/h Top Speed The Acedeck Ares X3 GEAR is a powerful street-performance electric skateboard designed for riders who want speed, torque, stability, and premium control in a compact carbon fiber platform. Equipped with dual 6374 170KV motors, a 14S3P Samsung 50S 777Wh battery, gear drive system, precision TKP trucks, and 105mm MAD Wheelz V2, this board delivers serious performance for street wheel purists and advanced riders.

📦 General Information

◦ Model: Acedeck Ares X3 GEAR ◦ Type: High-Performance Street Electric Skateboard ◦ Drive Mode: Gear Drive ◦ Deck Material: Premium T700 3K Carbon Fiber ◦ Max Load Capacity: 200 kg ◦ Board Weight: 13.6 kg / 29.2 lbs

🚀 Performance

◦ Top Speed: 60 km/h / 37 mph ◦ Top Speed Test Setup: 105mm Wheels ◦ Range: Up to 50 km / 31 miles ◦ Hill Climbing Ability: 46% ◦ Torque: 45 Nm ◦ Temperature Comfort Zone: -20°C to 45°C

⚡ Motor & Power System

◦ Motor: 6374 170KV ◦ Motor Pole Pair: 7 ◦ Rated Motor Power: 3000W × 2 ◦ Peak Motor Power: 3500W × 2 ◦ FOC-ESC Bus Current: 70A ◦ FOC-ESC Phase Current: 120A

🔋 Battery System

◦ Battery Pack: 14S3P Samsung 50S ◦ Battery Capacity: 15Ah / 777Wh ◦ Battery Type: High-output lithium battery pack ◦ Battery Focus: Strong acceleration, high discharge performance, and long-range riding

🔌 Charging

◦ Standard Charger Output: 58.8V 4A ◦ Charger Input: AC 110V–240V ~ 50/60Hz Max 3.0A ◦ Standard Charging Time: 3–4 hours ◦ 350W / 6A Fast Charging Time: 2.5 hours ◦ Remote Charging Input: 5V 1A

⚙️ Drive System

◦ Drive Mode: Gear Drive ◦ Gear Ratio: 2.8 ◦ Riding Feel: Instant torque response, strong power transfer, and low-maintenance performance

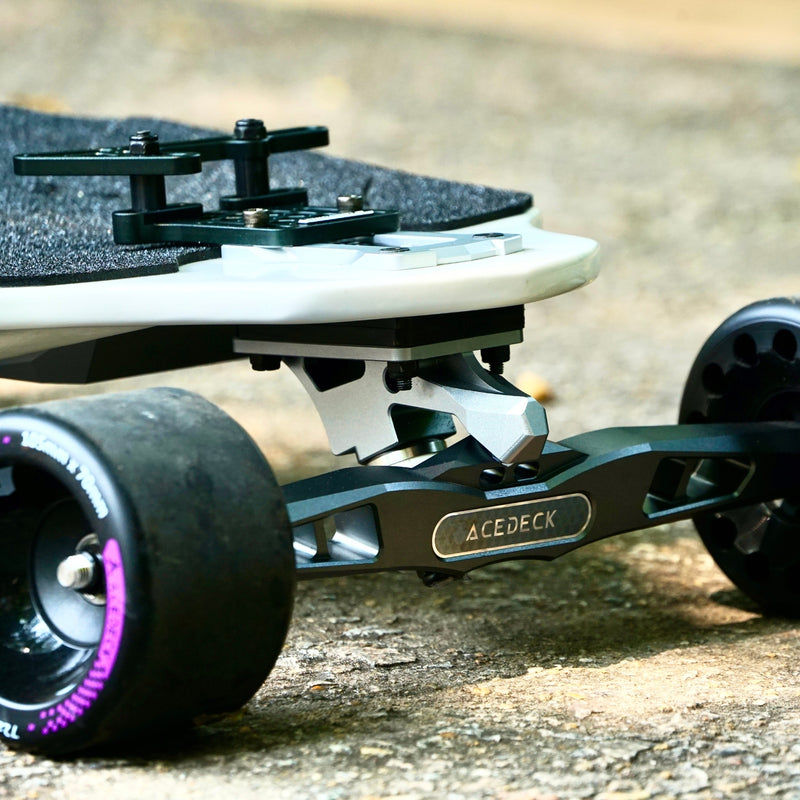

🛻 Trucks

◦ Truck Type: Precision TKP Trucks ◦ Truck Width: 350 mm / 13.8 inches ◦ Axle Diameter: 10 mm ◦ Front Bushing: 95A 16 mm White ◦ Rear Bushing: 98A 16 mm Black ◦ Riding Feel: Stable, precise, and confidence-inspiring for high-speed street riding

🛞 Wheels & Compatibility

◦ Standard Wheels: 105mm MAD Wheelz V2 ◦ Compatible Wheel Range: 90–125 mm ◦ Adapter Included: Kegel Adapter + ABEC Adapter ◦ Wheel Setup: Street / Urethane Wheel Compatible ◦ Benefit: Easy wheel swapping for different street wheel preferences

🧱 Deck & Build

◦ Deck Material: Premium T700 3K Carbon Fiber ◦ Deck Design: Compact carbon fiber performance platform ◦ Board Size: 1060 × 400 × 130 mm ◦ Deck Size: 940 × 240 mm ◦ Wheelbase: 910 mm ◦ Build Focus: Lightweight strength, stiffness, stability, and portability

🚦 Speed Modes

◦ Low Mode: 15–25 km/h ◦ ECO Mode: 25–40 km/h ◦ Sport Mode: 40–50 km/h ◦ Sport+ Mode: 50–60 km/h

📏 Dimensions

◦ Board Size: 1060 × 400 × 130 mm ◦ Deck Size: 940 × 240 mm ◦ Wheelbase: 910 mm ◦ Weight: 13.6 kg / 29.2 lbs
