NIREEK - Spectrx Plus

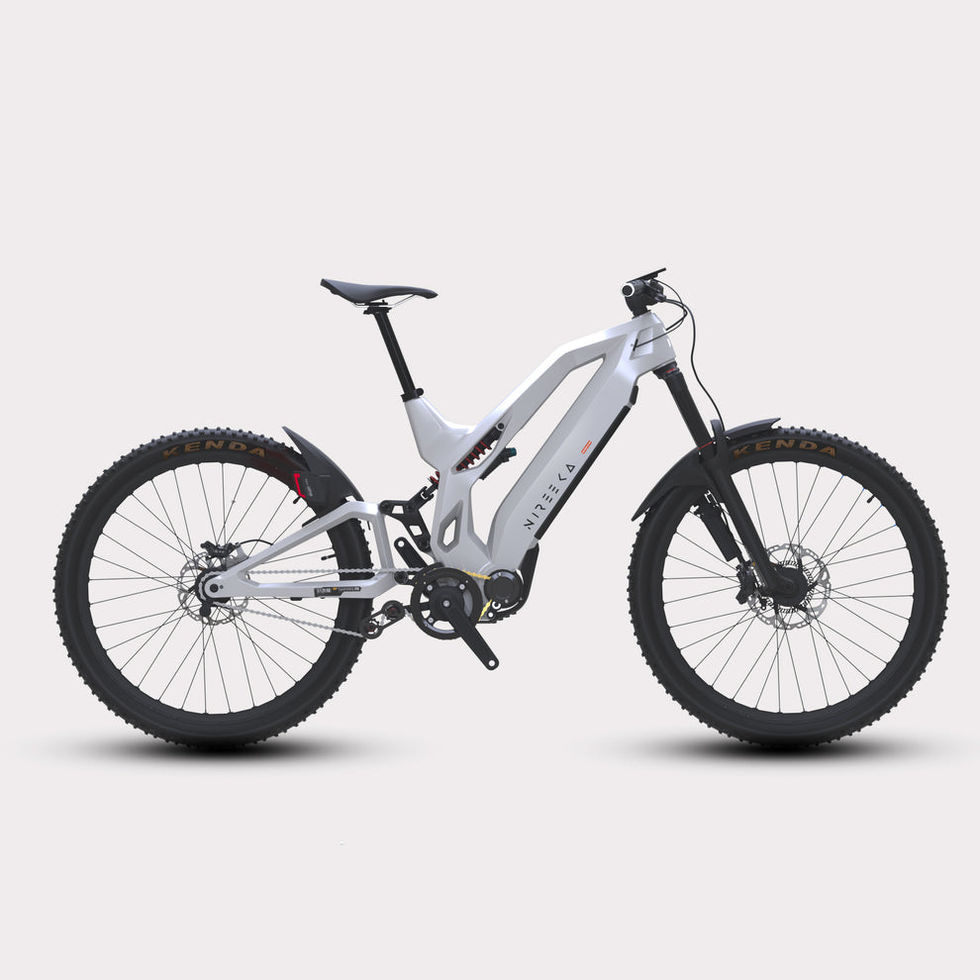

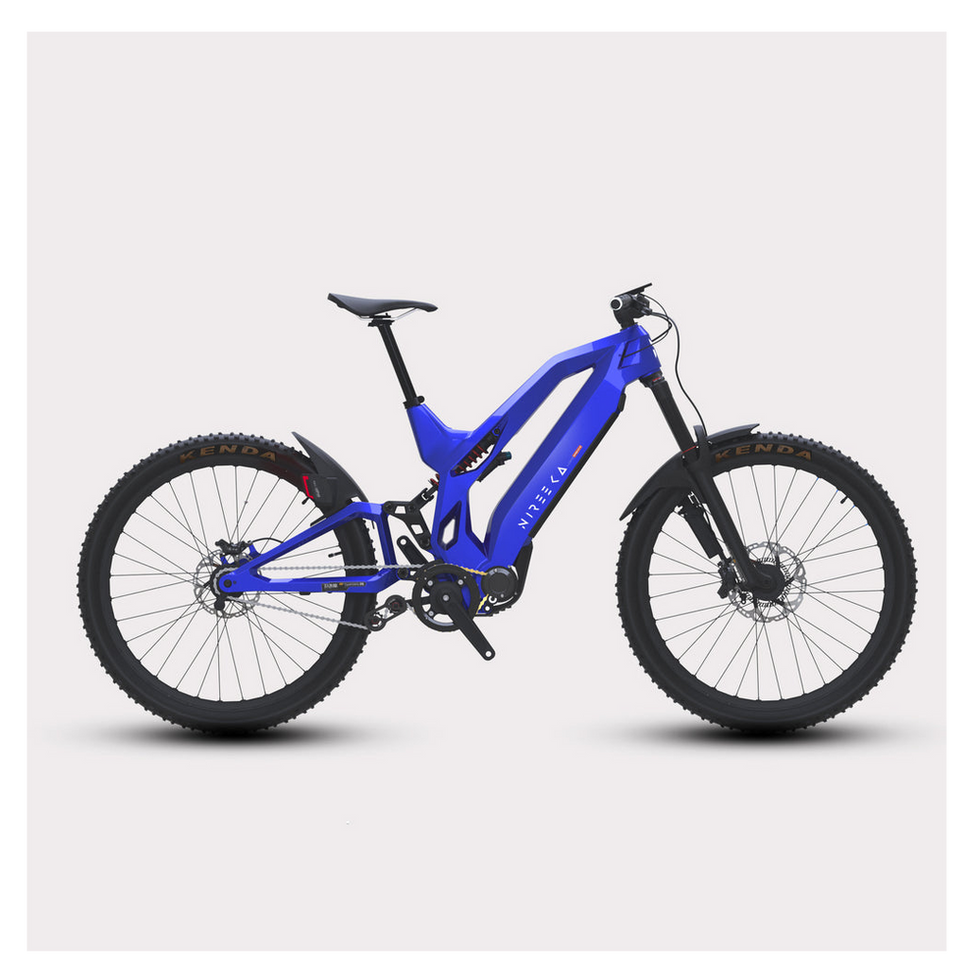

🚵‍♂️ 6000W Carbon Full-Suspension Electric Mountain Bike — CYC X1 Pro Gen 4

🔥 High-power carbon e-MTB with 6000W CYC X1 Pro Gen 4 mid-drive motor, 60V 21Ah / 1260Wh battery, torque-sensor pedal assist, thumb throttle, 160mm front suspension, 140mm rear suspension, and Plus/Fat tire compatibility.

📦 General Information

◦ Type: High-Power Full-Suspension Electric Mountain Bike ◦ Frame Material: Carbon Fiber Monocoque ◦ Seatpost Size: 31.6 mm ◦ Seatpost Clamp: Quick Release ◦ Headset: Tapered Integrated 1-1/8" to 1.5" ◦ Suspension Travel: 160 mm front / 140 mm rear

⚡ Motor & E-Bike System

◦ Motor: 6000W Mid-Drive ◦ Motor Model: CYC X1 Pro Gen 4 ◦ Display: CYC ◦ Assist Type: Torque Sensor Pedal Assist ◦ Assist Levels: 0–3 ◦ Walk Assist: Included ◦ Throttle: Thumb Throttle ◦ Throttle Classification: Class 3 Legal

🔋 Battery System

◦ Battery Cells: LG / Samsung 21700 ◦ Battery Size: 60V 21Ah ◦ Battery Capacity: 1260Wh

🦾 Frame & Suspension

◦ Frame: Carbon Fiber Monocoque ◦ Fork: Air Suspension Fork ◦ Fork Features: Rebound adjustment + Lockout ◦ Fork Travel: 160 mm ◦ Front Axle: 15 mm Thru Axle ◦ Rear Shock: DNM RCP-ZS MTB Rear Shock Absorber ◦ Rear Travel: 140 mm

⚙️ Drivetrain

◦ Drivetrain: Custom Single-Speed Chain + Rear Sprocket ◦ Rear Shifter: None / Single-Speed ◦ Chain: Heavy-Duty E-Bike Chain ◦ Crankset: 46T Custom Alloy Crank Arms ◦ Bottom Bracket: CYC Torque Sensor

🛑 Braking System

◦ Brakes: Hydraulic Disc Brakes ◦ Optional Upgrade: 4-Piston Hydraulic Disc Brakes

🛞 Wheels & Tires

◦ Front Hub: 110 mm Plus / 135 mm Fat, 32H ◦ Rear Hub: 177 mm, 32H ◦ Rims: 27.5" / 26" Fat Double Wall

Plus Tire Setup

◦ Front Tire: 27.5×2.8" ◦ Rear Tire: 27.5×3.0"

Fat Tire Setup

◦ Front Tire: 26×4.0" ◦ Rear Tire: 26×4.0"
