HIMIWAY -D5 2.0

🚴‍♂️ HIMIWAY - D5 2.0  Powerful, Robust, All-Terrain E-Bike 🚴‍♂️

🔥 Powerful e-bike built for city streets and off-road adventures The HIMIWAY D5 2.0 features a 750W motor with 90 Nm torque, 48V 15Ah battery, a maximum range of 105 km, and can support riders up to 181 kg.

📦 General Information

◦ Model: HIMIWAY D5 2.0 ◦ Weight: 41.7 kg (including battery) ◦ Maximum Load: 181 kg ◦ Maximum Range: 65 miles (~105 km) ◦ Recommended Rider Height: 155–196 cm (5’1”–6’5”)

🛠️ Frameset & Suspension

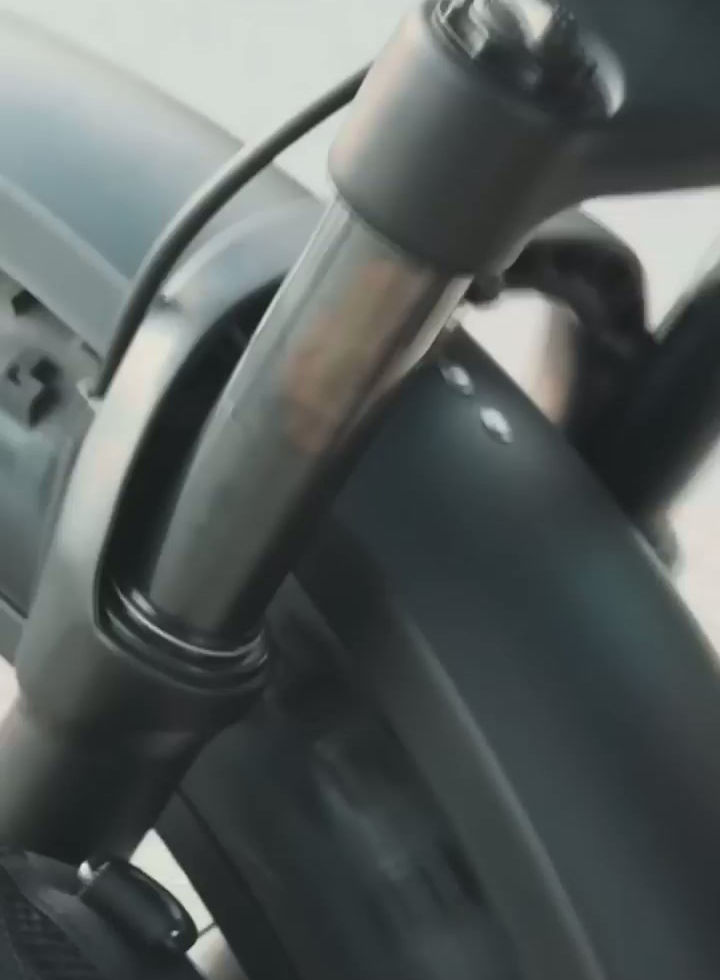

◦ Frame: 6061 Aluminum, Horst-Link system ◦ Front Suspension: RST GUIDE-26, 100 mm travel, aluminum ◦ Rear Suspension: Multi-Link, 130 mm travel, 800 lb spring ◦ Headset: GINEYEA A16E-1

⚡ E-System (Electric System & Control)

◦ Motor: 750W hub motor, 90 Nm torque ◦ Battery: 48V 15Ah Samsung/LG lithium, UL2271 certified ◦ Display: 3.5-inch full-color LCD, 320×480 resolution ◦ Throttle: Thumb throttle ◦ Sensors: Torque / Cadence, switchable ◦ Controller: 48V 22A ◦ Charger: US standard 3.0A fast charger ◦ Headlight: 48V LED 4W, 120 Lux ◦ Taillight: Multifunction (Brake / Turn / Emergency)

⚙️ Drivetrain

◦ Gearing: SHIMANO 8-speed ◦ Front Chainring: 52T × 170 mm ◦ Rear Cassette: 8-speed KDF-852 (13-32T) ◦ Chain: KMC Z8.3-EPT, 130 links, rust-resistant

🛑 Brakes

◦ Hydraulic Disc Brakes: Tektro HD-E3520 (Front & Rear) ◦ Brake Rotors: Tektro TR180-52, 180 mm (Front & Rear)

🔘 Wheels & Tires

◦ Front Wheel: 26×4.0 inches, 36H, 13G spokes, 3/813G135*185W hub ◦ Rear Wheel: 26×4.0 inches, 36H, 12G spokes, Annada hub motor ◦ Tires: Maxxis Minion FBF / FBR, 26×4.0 inches

💺 Saddle & Seatpost

◦ Saddle: DDK memory foam, 268×260 mm ◦ Seatpost: Aluminum, 33.9×270 mm

🧰 Accessories / Cockpit

◦ Handlebar: HB-060BT, 22.2×31.8×680 mm ◦ Stem: Adjustable 0–60°, 31.8 mm, 90 mm length ◦ Pedals: Aluminum ◦ Kickstand: Heavy-duty aluminum

💥 Key Highlights

✅ 750W motor with 90 Nm torque ✅ 48V 15Ah battery, up to 105 km range ✅ Front suspension 100 mm / Rear 130 mm, Horst-Link system ✅ Hydraulic disc brakes Tektro, 180 mm front & rear ✅ Full-color TFT LCD display with full functionality ✅ Supports riders up to 181 kg
