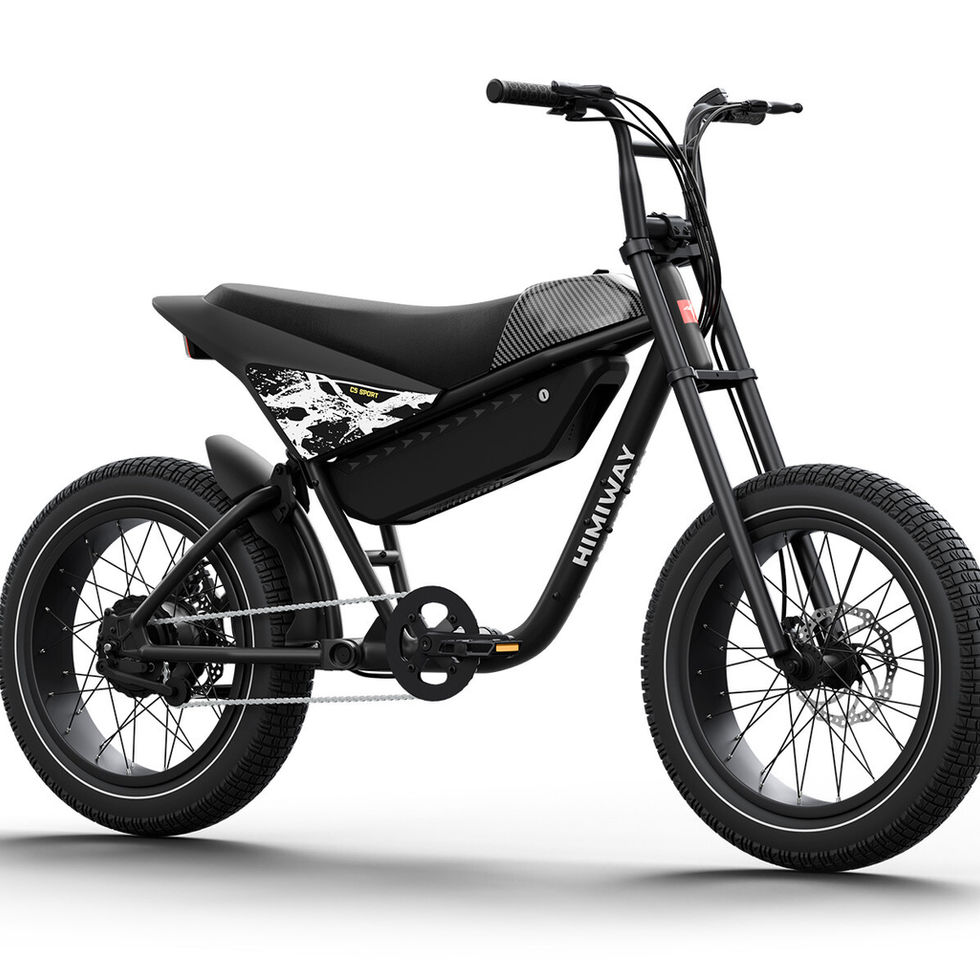

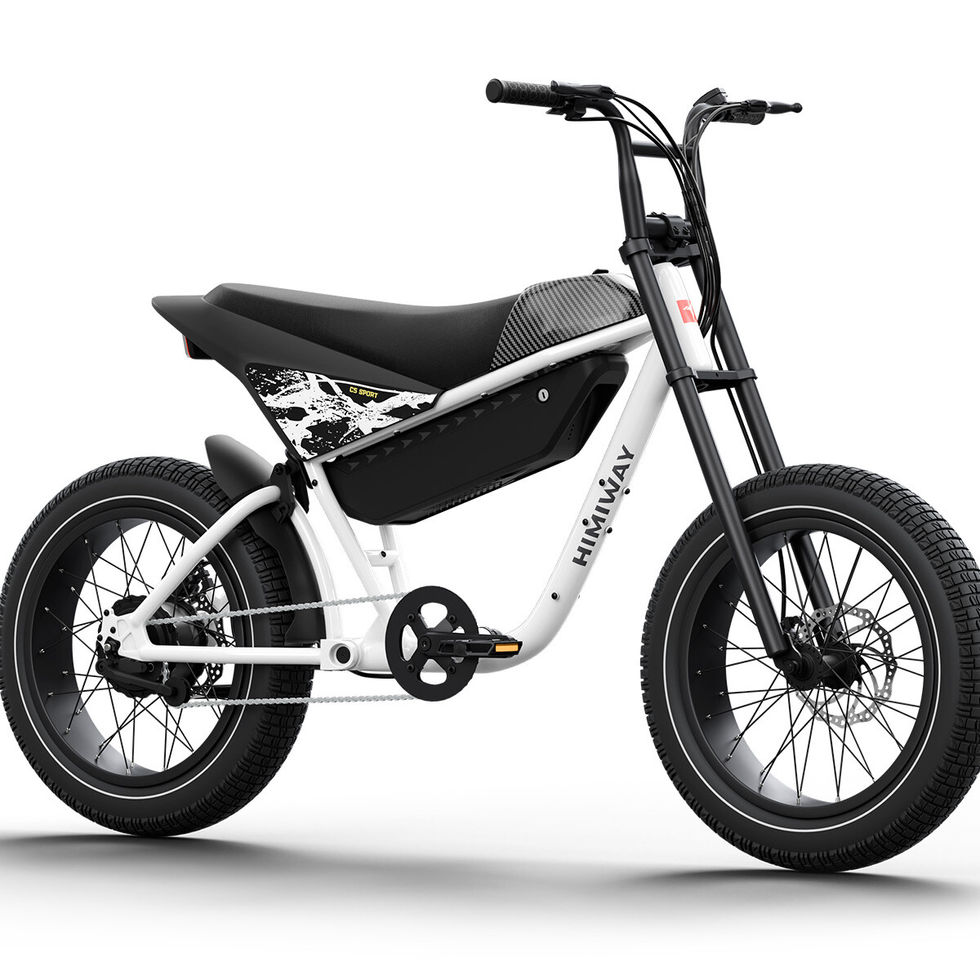

HIMIWAY - C5 Sport

🚲 Electric Bike Specifications: Model Himiway C5 SPORT 🚲

📌 General Information

• Model: Himiway C5 SPORT

• Frame Material: Upgraded 6061 Aluminum Alloy

• Net Weight: 34 kg

• Max Load: 150 kg

• Recommended Rider Height: 162–190 cm

• Minimum Seat Height: 33 inches

• Wheel Size: 20 inches

• Tires: Kenda × Himiway 20 × 4.0 inches

• Waterproof Rating: Not specified

🔋 Battery & Charging

• Battery: 48V 20Ah (960Wh), Samsung / LG Cells, Removable

• Charger: 48V 3A Smart Charger (US Standard)

• Charging Time: 7 hours

• USB Charging Port: Available

🚀 Performance

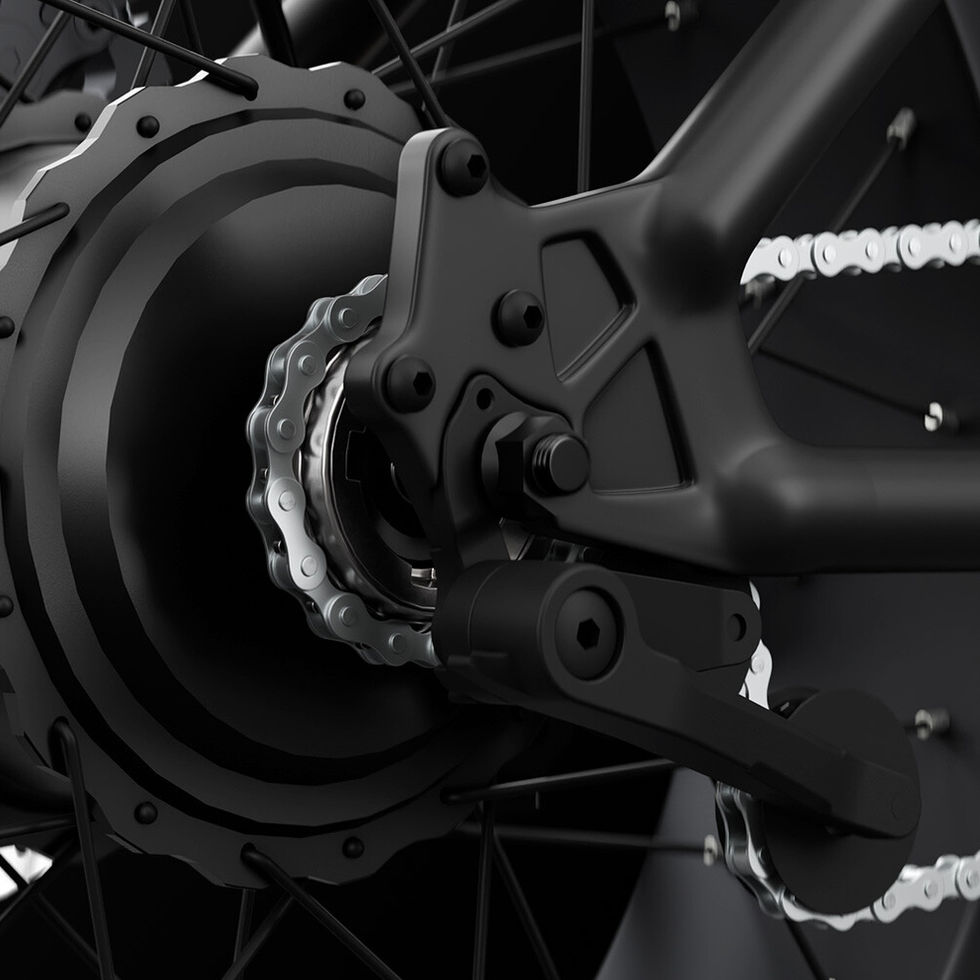

• Motor: 750W Brushless Geared Motor

• Torque: 86 Nm

• Throttle: Thumb Throttle

• Riding Modes:

  • Class 1: Pedal Assist Only

  • Class 2: Throttle up to 32 km/h (20 mph)

  • Class 3: Pedal Assist up to 45 km/h (28 mph)

• Sensor: Torque Sensor

• Range:

  • Pure Electric Mode: Not specified

  • Pedal-Assist Mode: 96–128 km

📺 Display

• Meter: LCD Display with USB Port

• Functions: Speed, Battery, PAS Level, Distance, Settings

🛞 Wheels & Tires

• Front Wheel: MD-147 Rim 20 × 4.0", 12G Spokes, MB016F-92-T Hub

• Rear Wheel: Not specified

🛑 Braking System

• Brakes: Tektro Mechanical Disc Brakes

• Rotor Size: 180 mm (Front & Rear)

⚙️ Drivetrain

• Gear System: Shimano 10-Speed

• Freewheel: Shimano MF-TZ500-7 (14–28T)

• Crankset: 44T BCD104, 145 mm Crank Arms, 6061-T6 Aluminum

• Shifting System: Shimano 7-Speed (conflict noted — possibly front or secondary)

🔩 Suspension

• Front Suspension: KKE R150S Spring Fork, 140 mm Travel, Adjustable Compression & Rebound

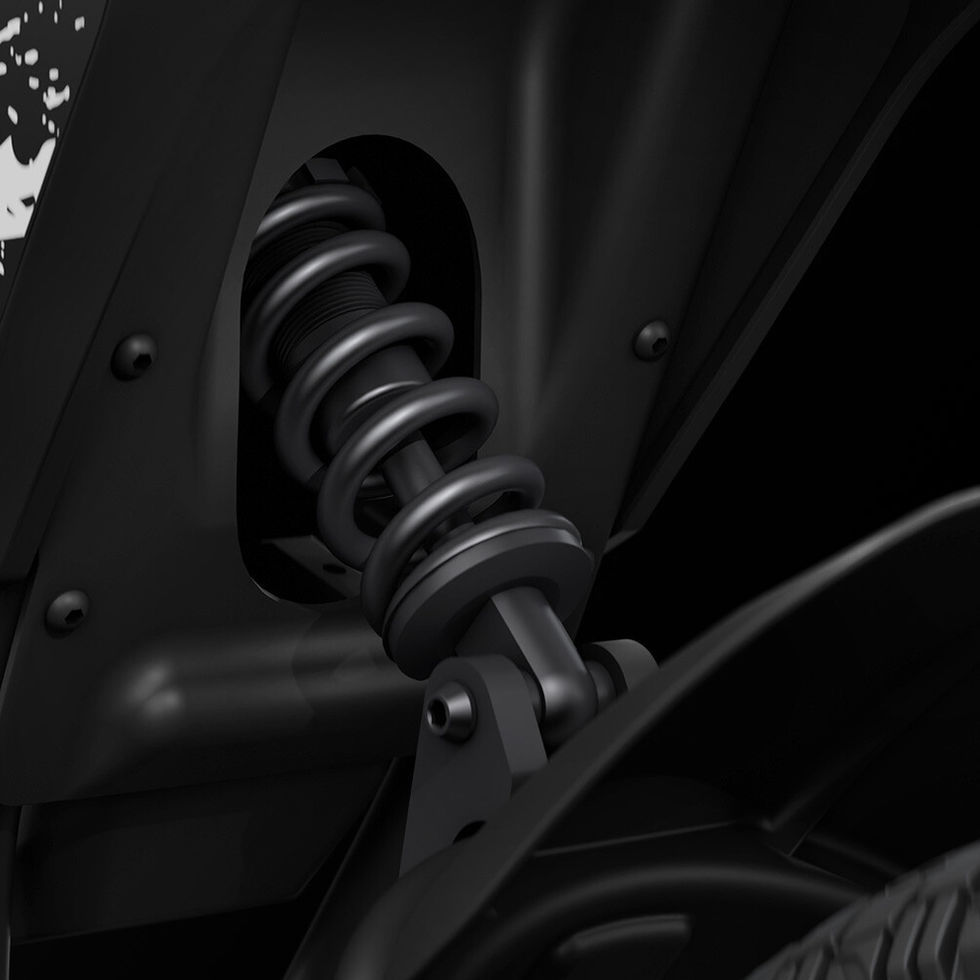

• Rear Suspension: Spring Shock, 47 mm Travel

🔧 Components

• Stem: 3D Forged Aluminum, 40 mm

• Saddle: Extended Comfort Saddle

• Lights: Front & Rear LED with Brake Light

• Pedals: Not specified

• Kickstand: Not specified
