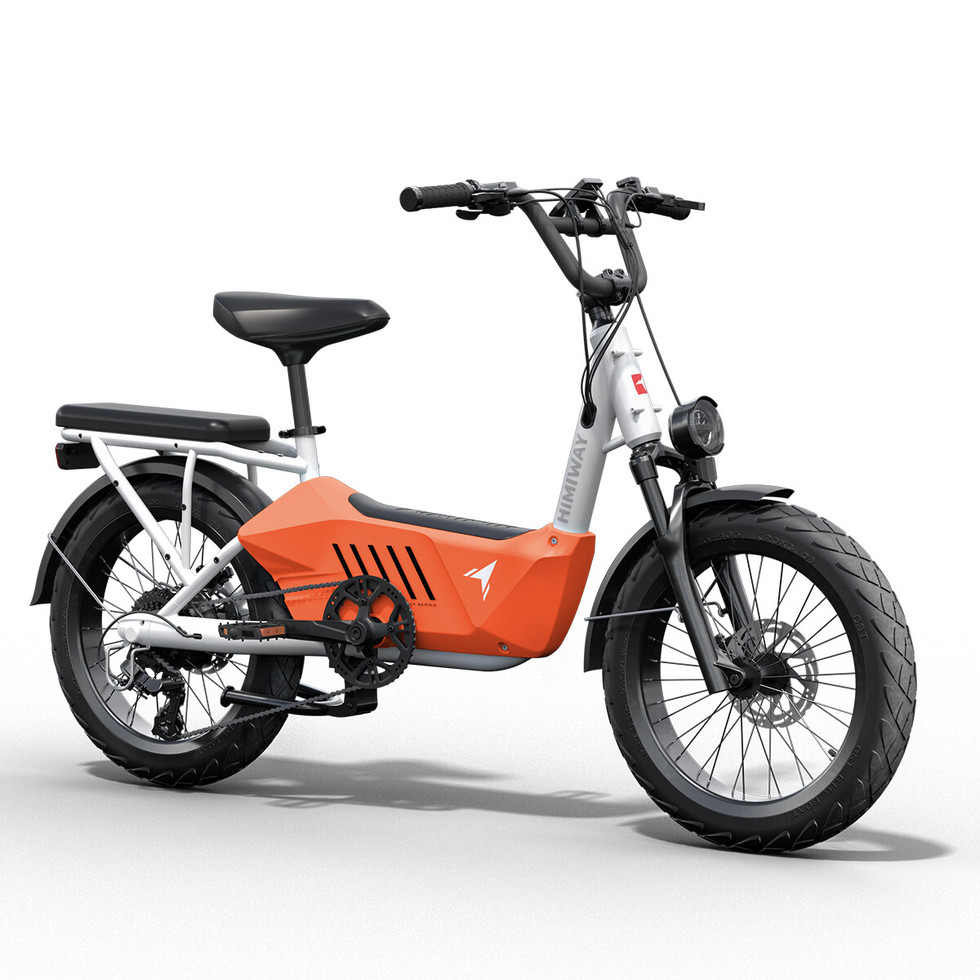

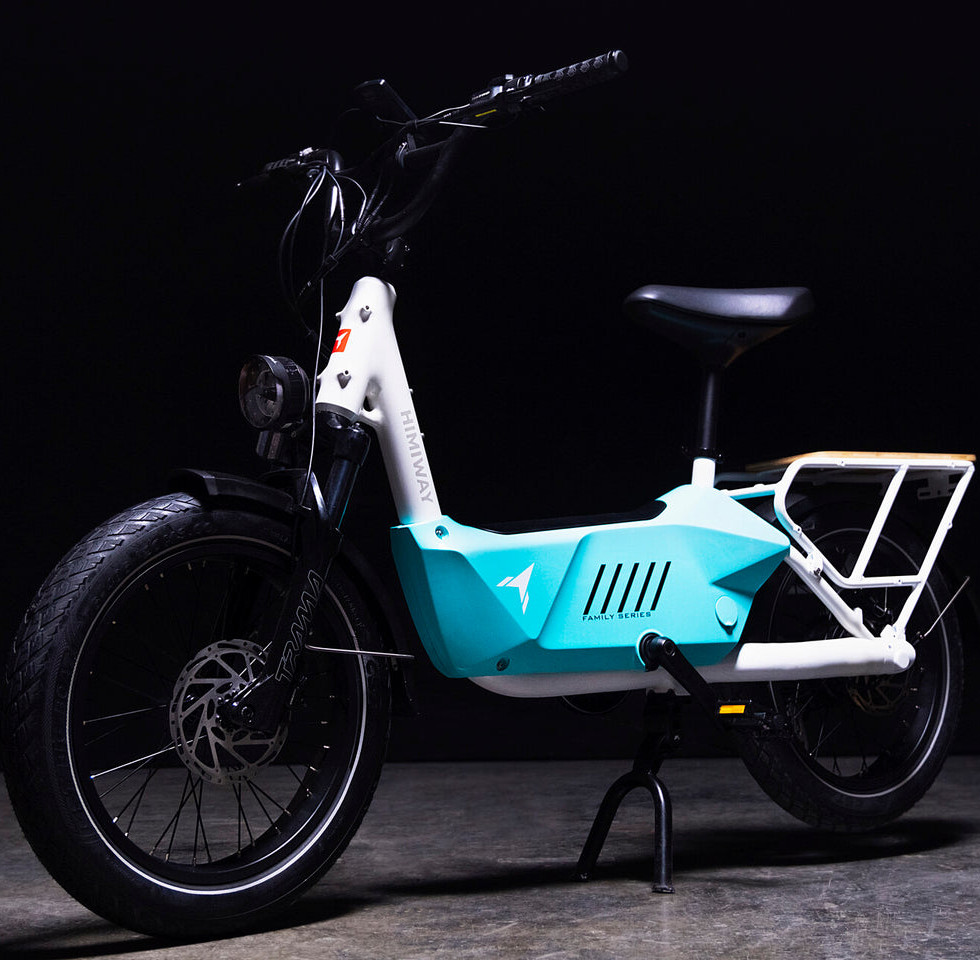

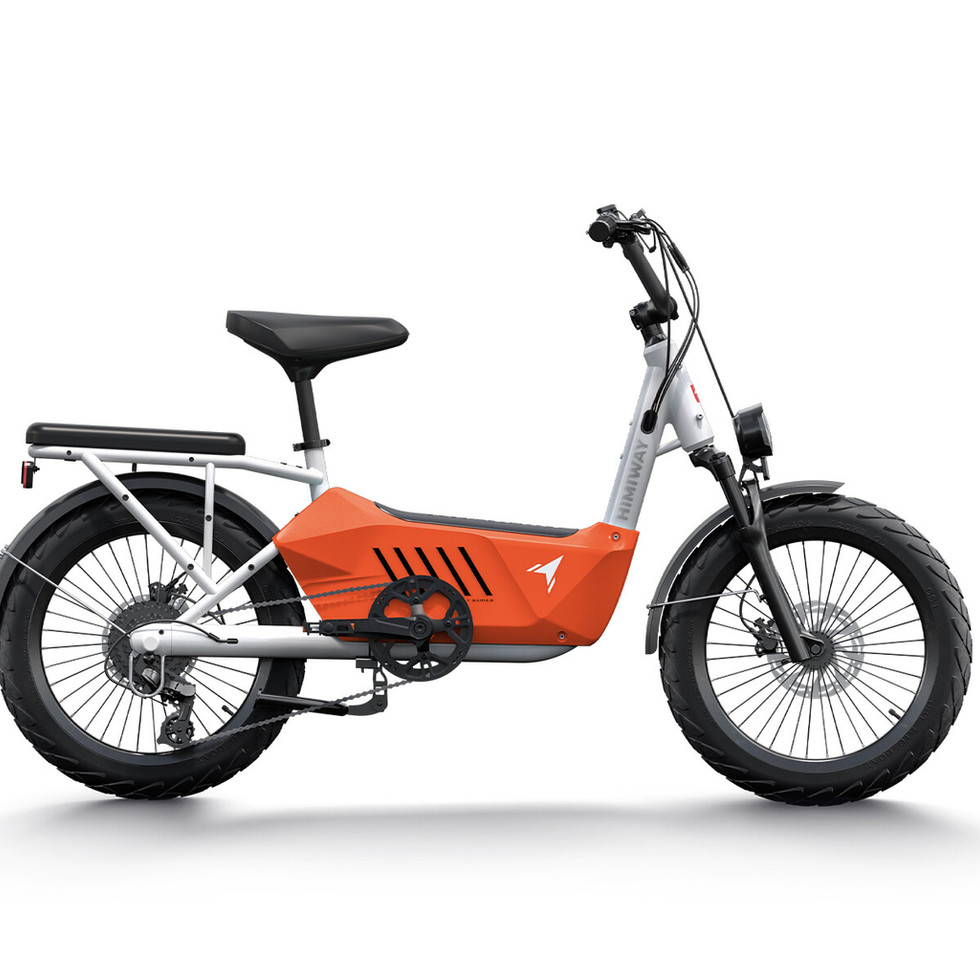

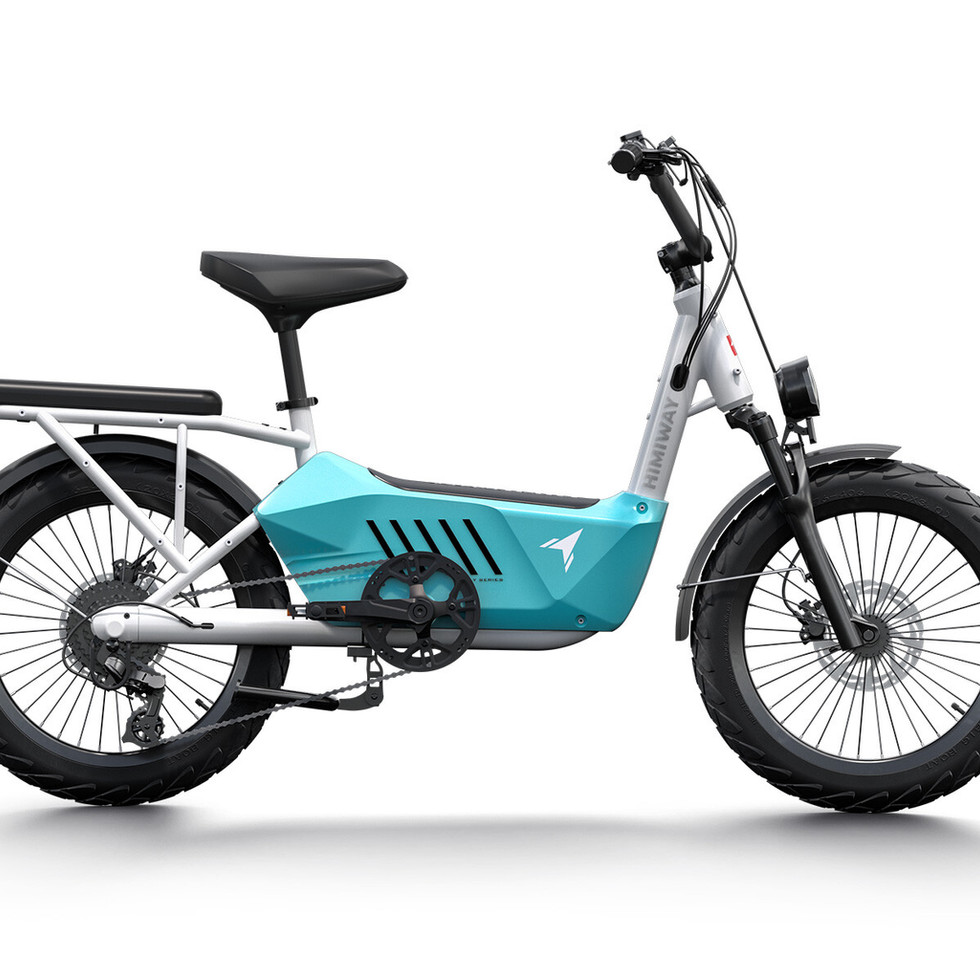

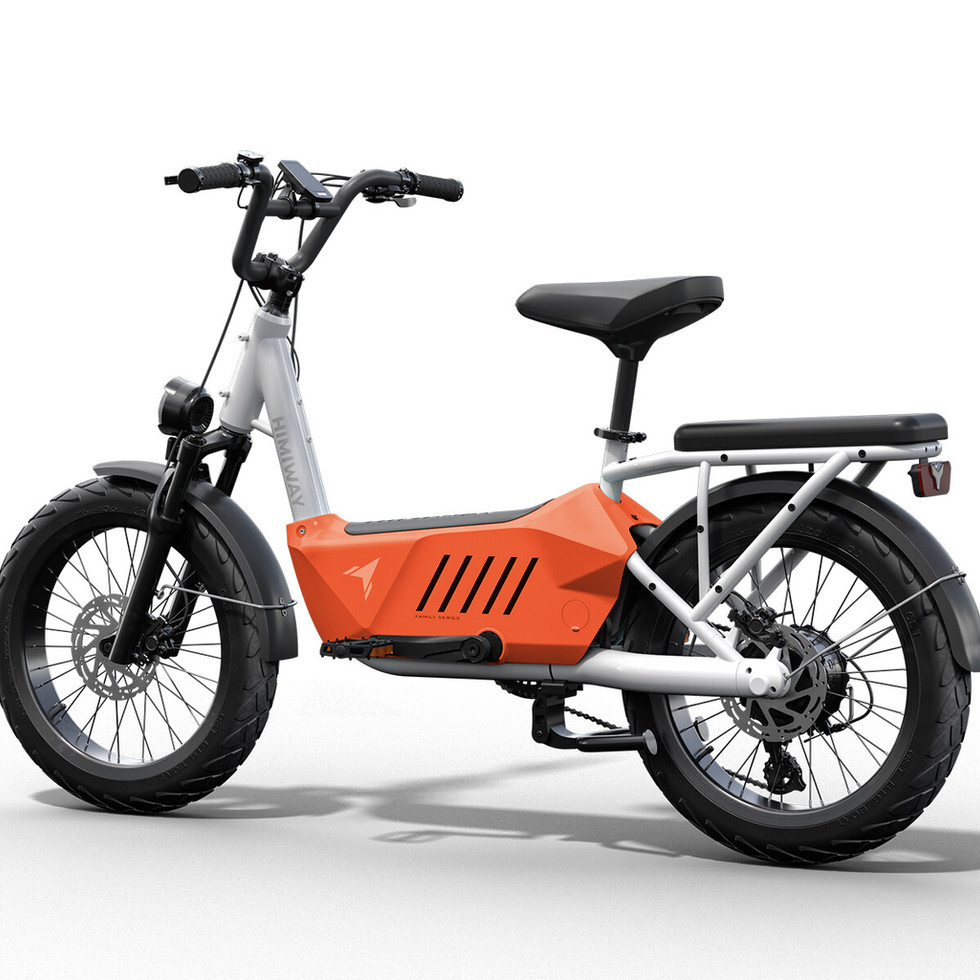

HIMIWAY - C3

🚲 Electric Cargo Bike Specifications: Model Himiway C3 🚲

📌 General Information

• Model: Himiway C3

• Frame Material: 6061 Aluminum Alloy

• Net Weight: 36 kg (including battery)

• Max Load: 200 kg

• Recommended Rider Height: 157–190 cm

• Wheel Size: 20 inches

• Tires: CST 20 × 3.0 inches

• Colors: Not specified

• Waterproof Rating: Not specified

🔋 Battery & Charging

• Battery: 48V 20Ah Lithium Battery (Samsung/LG Cells)

• Charger: 48V 3.0A Smart Charger (US Standard)

• Controller: 48V / 22A

• Range per Charge:

  • Pure Electric Mode: 96–128 km

  • (Tested with 60 kg load, 25°C, avg. speed 20 km/h on flat terrain)

🚀 Performance

• Motor: 750W Rear Brushless Geared Motor (Himiway)

• Throttle: Thumb Throttle

• Sensors: Torque Sensor, Speed Sensor, Brake Sensor

• Max Speed: Not specified

• Climbing Ability: Not specified

📺 Display

• Meter: Himiway C2 LCD Display

• Functions: Speed, Battery Level, PAS Level, Distance, etc.

🛞 Wheels & Tires

• Front Wheel: J57SA Rim, 20", 12G Spokes, MB016F-92-T Hub (15135 mm)

• Rear Wheel: J57SA Rim, 20", 12G Spokes, 750W Motor Hub

🛑 Braking System

• Front Brake Disc: 180 mm (Type not specified)

• Rear Brake: Tektro HD-E3520 Hydraulic Disc Brake, 180 mm Rotor

⚙️ Drivetrain

• Gear System: Shimano Altus M310, 7-Speed

• Shifter: Not specified

• Rear Freewheel: Shimano MF-TZ500-7 (14–28T)

• Chain: KMC Z8.3 EPT 120L

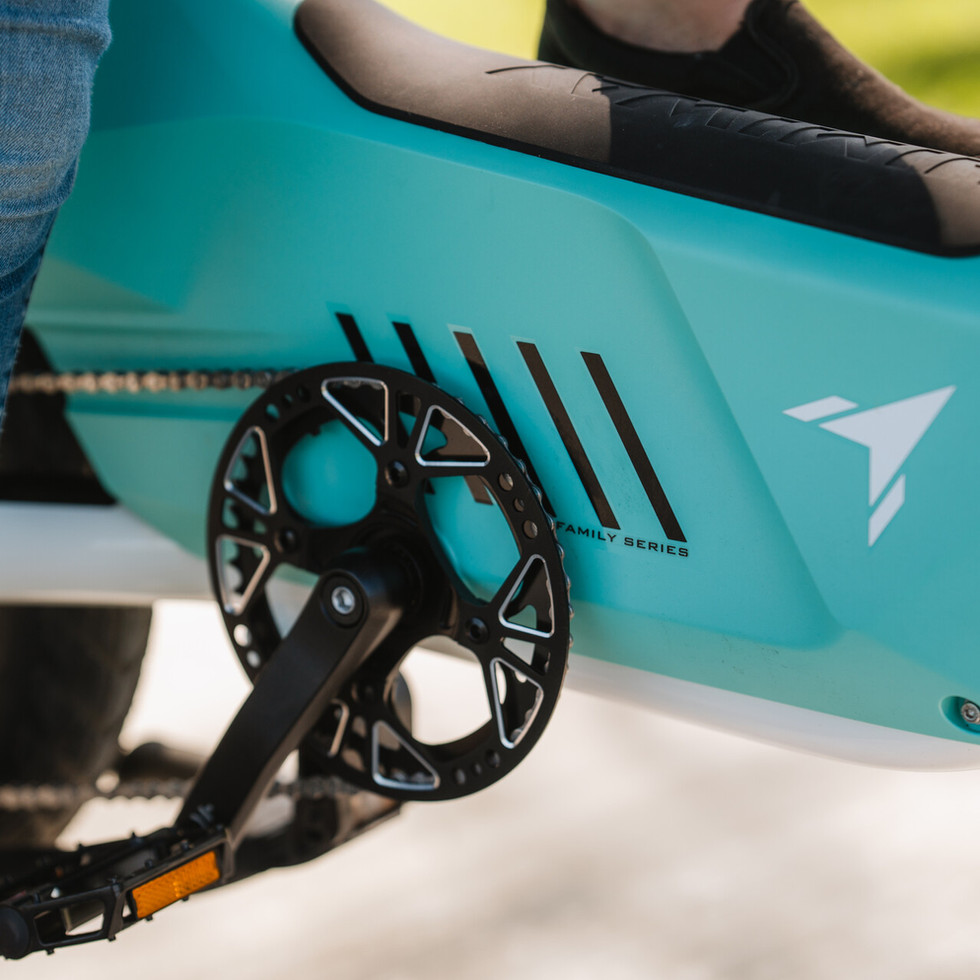

• Crankset: 44T BCD104, 145 mm Arm Length, 6061-T6 Aluminum

🔩 Suspension

• Front Fork: TRAMA Spring Suspension, 60 mm Travel, 135 mm Thru-Axle

• Rear Suspension: Not specified

🔧 Components

• Handlebar: YC-B086, 22.2 × 31.8 × 720 mm

• Seatpost: Himiway Saddle

• Pedals: Aluminum

• Kickstand: Heavy-Duty Aluminum
