HAIBIKE - TREKKING 3

HAIBIKE  - TREKKING 3

🔋 E-System

• Battery: Bosch PowerTube 500Wh

• Charger: Bosch Charger 4A (220–240V)

• Display: Bosch Intuvia 100 + LED Remote

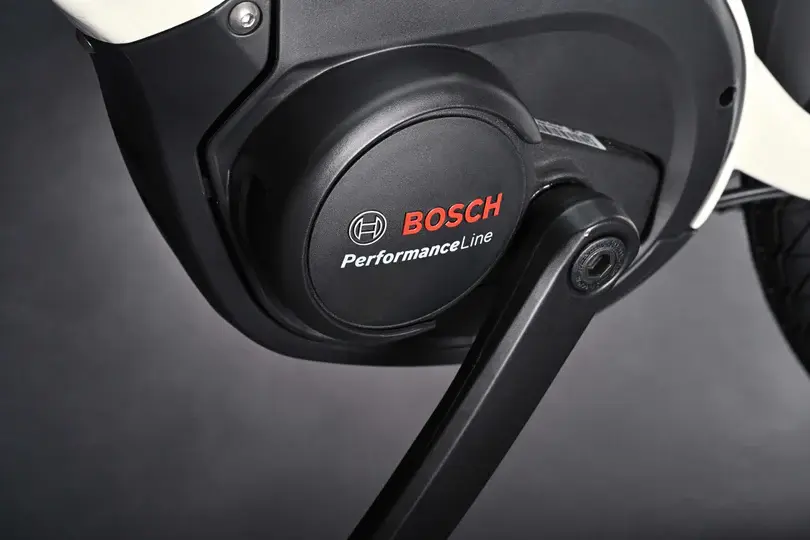

• Motor: Bosch Performance Line (Smart System)

• Power: 600W

• Torque: 75 Nm

• Max Assist Speed: 25 km/h

🛠 Frame & Structure

• Frame: Aluminum, Post Mount disc brake compatible

• Max Load Capacity: 130 kg

⚙️ Drivetrain

• Chain: Shimano CN-LG500 (LINKGLIDE), supports 9–11 speed

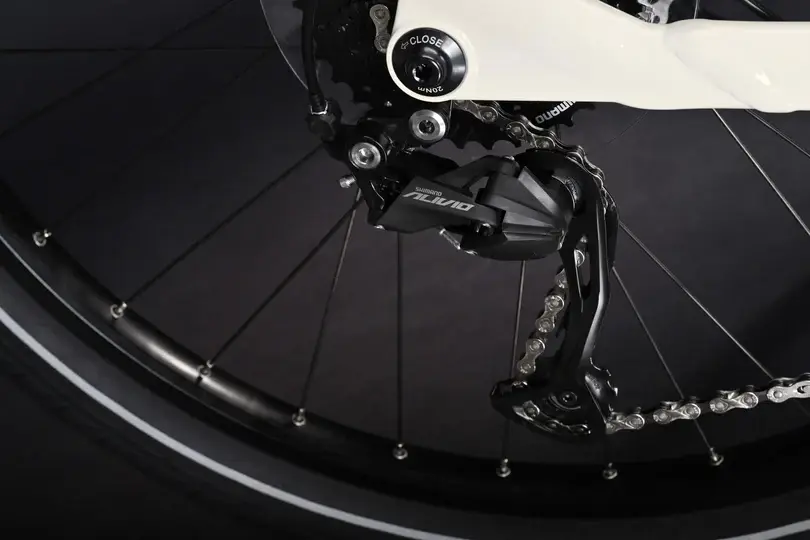

• Rear Derailleur: Shimano CUES RD-U3020-SGS, Shadow, 9-speed

• Gears: 9-speed

• Right Shifter: Shimano CUES SL-U4000-9R, Rapidfire+ (Trigger)

🛞 Suspension

• Front Fork: SR Suntour SF18-XCM-ATB-HLO-DS

• Travel: 67 mm

🛑 Brakes

• Front Brake: Alhonga HT474, 2-piston, 180 mm rotor

• Rear Brake: Alhonga HT474, 2-piston, 180 mm rotor

💡 Lighting

• Front Light: Trelock LS230 VEO, 20 Lux for e-bike (6–12V, StVZO compliant)

• Rear Light: AXA Juno E-Bike (6–12V)

🚴 Controls & Comfort

• Grips: XLC Comfort Grip Set VLG-1752D2

• Handlebar: Kalloy RB12L, 31.8 mm, Rise 15 mm, Width 720 mm

• Pedals: VP Components VPE-461 MTB Alloy (with reflectors)

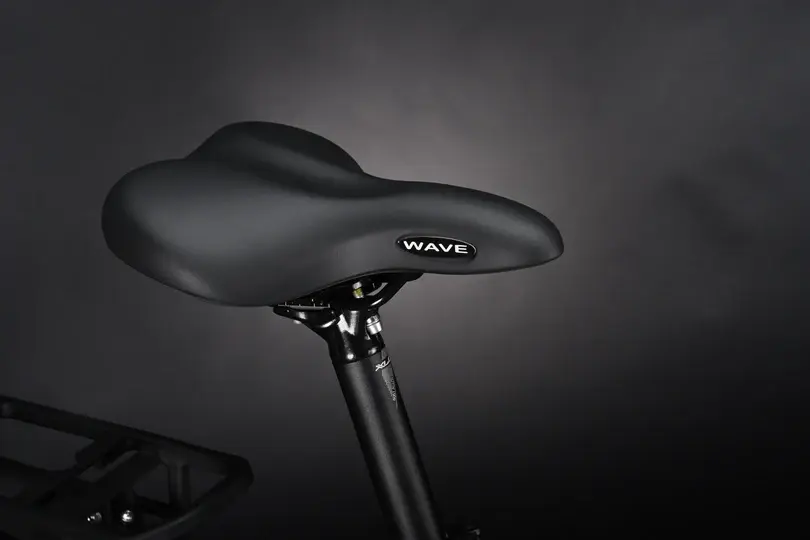

• Saddle: Selle Royal Wave

• Seatpost: Kalloy SP-DC1, 31.6 mm, Length 300 mm

🛞 Wheels & Tires

• Rims: Schürmann YAK Disc 25-584, 32H, 8.5 mm valve

• Tires: WTB Groov-E, reflective strip, 60TPI, 62-584
