HAIBIKE - TREKKING 7.5

🚵‍♂️ HAIBIKE - TREKKING 7.5 🚵‍♂️


🔥 Built for real trail riders!
Powered by the Yamaha PW-X3 with 85 Nm torque, a large 720Wh battery, a 12-speed Shimano Deore/XT drivetrain, and 4-piston brakes front and rear with 203/180 mm rotors.
Confident on climbs and descents — strong, controlled, and durable, perfect for trail and mountain riding.

📦 General Information

◦ Type: Electric Mountain Bike (E-MTB)
◦ Frame: Aluminum / Post Mount disc brake design
◦ Maximum Loadable Weight: 130 kg

⚡ Motor, Display & Charger

◦ Motor: Yamaha PW-X3
◦ Motor Power: 250W
◦ Torque: 85 Nm
◦ Max Assist Speed: 25 km/h
◦ Display: Yamaha A2 Display
◦ Charger: Yamaha Standard Charger 4A

🔋 Battery System

◦ Battery: Yamaha InTube 720Wh

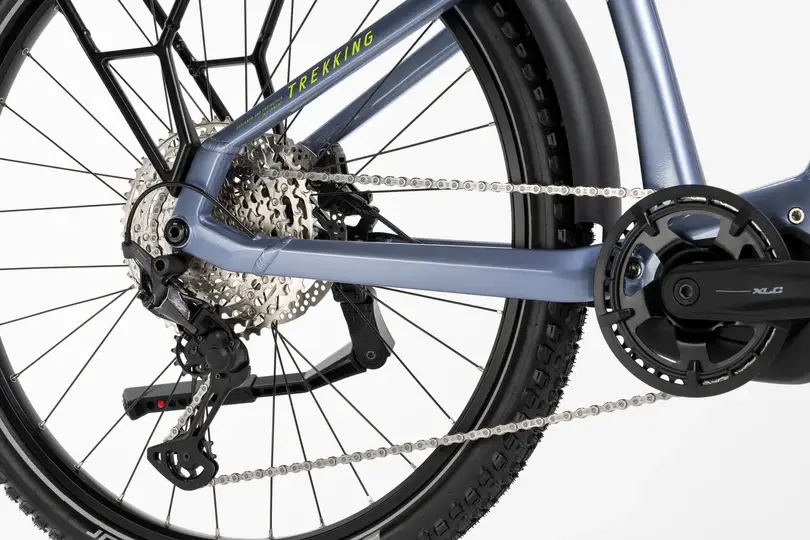

⚙️ Drivetrain

◦ Gears: 12-speed
◦ Right Shifter: Shimano Deore SL-M6100-R (Rapidfire+, Trigger)
◦ Rear Derailleur: Shimano Deore XT RD-M8100-SGS (Shadow+, 12-speed)
◦ Chain: Shimano Deore CN-M6100 (12-speed)

🛞 Suspension

◦ Front Fork: RockShox Recon Silver RL
◦ Air System: Solo Air / Crown Adjust
◦ Offset: 46 mm
◦ Travel: 100 mm

🛑 Brakes

◦ Front Brake: Shimano Deore BR-MT420 (4-piston, resin pads) + 203 mm rotor
◦ Rear Brake: Shimano Deore BR-MT420 (4-piston, resin pads) + 180 mm rotor

🛞 Wheels & Tires

◦ Rims: Schürmann YAK Disc 25-584 32H (8.5 mm valve)
◦ Tires: Schwalbe Johnny Watts (reflective strip) 60-584

💡 Lighting

◦ Front Light: Herrmans H-Black MR8 E (6–12V)
◦ Rear Light: Spanninga Aerline 2.0 Brake

🧩 Cockpit & Components

◦ Grips: XLC Comfort Grip Set VLG-1752D2
◦ Handlebar: JD MTB502A (31.8 mm, Rise 25 mm, Backsweep 15°, Width 720 mm)
◦ Pedals: VP Components VPE-461 (MTB alloy with reflectors)
◦ Saddle: Selle Royal Essenza+
◦ Dropper Post: Limotec A1H Dropper (34.9 mm, 100 mm travel)

💥 Key Highlights

✅ Yamaha PW-X3 with 85 Nm torque — strong climbing power
✅ 720Wh InTube battery — long range for trips and trails
✅ Shimano Deore/XT 12-speed drivetrain — smooth and durable
✅ 4-piston brakes + big rotors (203/180 mm) — confident control
✅ RockShox Recon Silver RL fork (100 mm travel) — stable and comfortable
