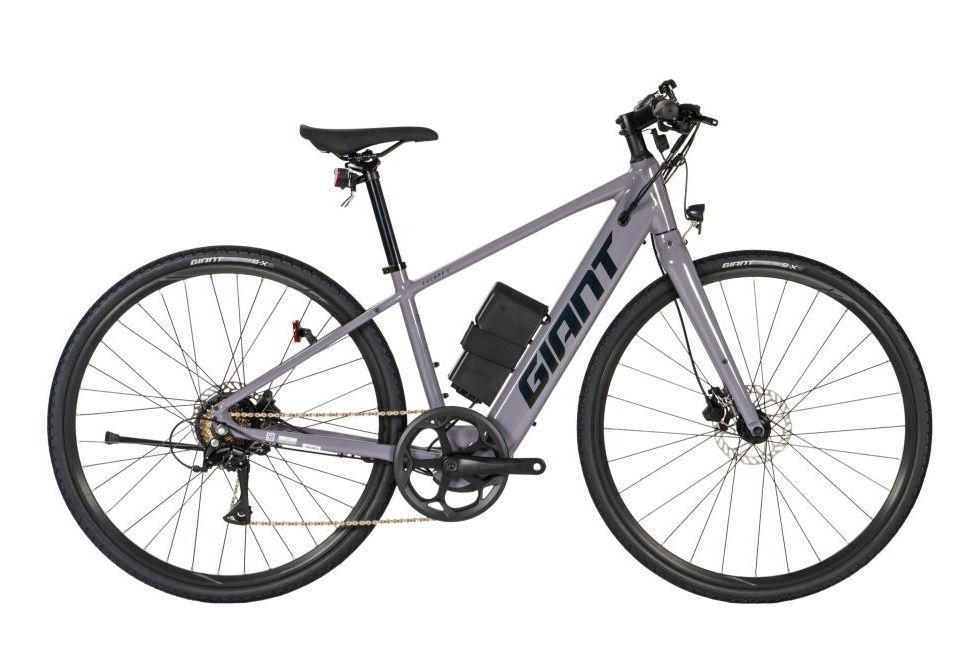

GIANT - ESCAPE E+

⚡ GIANT 700C Electric Bike – 324Wh Lightweight Edition

SPECS

Due to differences between production batches, some product specifications may vary slightly. Please refer to the actual product received.

📦 General Information

◦ Dimensions (L × W × H): 1747 × 610 × 1050 mm ◦ Total Weight: 19.2 kg (including 2.2 kg battery)

🧱 Frameset

◦ Frame: GIANT ALUXX Lightweight Aluminum Alloy Frame ◦ Frame Sizes:  • XS: 700 × 15L (381 mm)  • S: 700 × 17L (432 mm)  • M: 700 × 19L (483 mm) ◦ Front Fork: 700C GIANT ALUXX Rigid Fork

⚡ Electric Drive System

◦ Battery: 36V 9Ah Lithium Battery (324Wh) ◦ Motor: 250W SDR High-Efficiency Sine-Wave Motor ◦ Intelligent System: GICS Smart Assist System based on GIANT-HCT Power-Boost Technology ◦ Display: Clear LED Display ◦ Controller: LED Display Controller ◦ Charger: Standard On-Board Charger ◦ Charging Time: 4–6 hours ◦ Front Light: High-Brightness LED Headlight ◦ Rear Light: High-Visibility Red Taillight

🚴 Riding Performance

◦ Riding Modes: Intelligent Pedal Assist Mode + Non-Assisted Riding Mode ◦ Assist Modes: 3 Intelligent Assist Levels — Level 1 / 2 / 3 ◦ Maximum Assisted Speed: 25 km/h

◦ Estimated Range per Charge:  • Assist Level 1: 50–70 km  • Assist Level 2: 40–50 km  • Assist Level 3: 30–40 km

⚙️ Drivetrain

◦ Shifter: SHIMANO 1 × 7-Speed System ◦ Rear Derailleur: SHIMANO 7-Speed ◦ Freewheel: SHIMANO 14–28T ◦ Chainring: 52T ◦ Chain: KMC / 114L

🛑 Braking System

◦ Brake Type: High-Performance Hydraulic Disc Brake System with Integrated Reservoir ◦ Front Rotor: 160 mm ◦ Rear Rotor: 160 mm

🪑 Cockpit & Components

◦ Saddle: Ergonomic Padded Ventilated Saddle ◦ Seatpost: Aluminum Alloy / 300 mm / Ø27.2 mm ◦ Handlebar: Aluminum Alloy  • XS: 580 mm  • S / M: 600 mm ◦ Stem: Aluminum Alloy  • XS: 70 mm  • S / M: 90 mm

🛞 Wheels & Tires

◦ Rims: Double-Wall Aluminum Alloy Rims ◦ Spokes: Front 14G / Rear 13G / 304 Stainless Steel / BED Treatment ◦ Tires: 700 × 35C

🔋 Range Test Conditions

◦ Range figures were tested under the following conditions:  • Ambient Temperature: 25°C  • Flat Road Surface  • Normal Tire Pressure  • Rider Weight: 75 kg  • New Battery at Full Charge  • Wind Speed: Below Force 3  • Constant Riding Speed: 23 km/h
