FIIDO- T3

🚴‍♂️ FIIDO T3 – Electric Utility Bike

🔥 Mid-Drive Motor • 972Wh Battery • 330.7 lbs Payload • 4-Piston Hydraulic Brakes The FIIDO T3 is a practical electric utility bike designed for riders who need strong carrying capacity, comfortable suspension, and reliable daily performance. With a 250W mid-drive motor, large 972Wh battery, Mivice X700 sensor, 9-speed drivetrain, 70mm oil-damped front suspension, and 4-piston hydraulic disc brakes, this bike is built for commuting, cargo riding, city travel, and everyday utility use.

📦 General Information

◦ Model Name: T3 ◦ Model Code: T3 ◦ Type: Electric Utility Bike / Cargo-Style E-Bike ◦ Net Weight: 72.8 lbs ◦ Payload Capacity: 330.7 lbs

🧱 Frameset

◦ Frame: Aluminum Alloy ◦ Fork: Oil-Damped Coil-Spring Front Suspension ◦ Fork Travel: 70 mm ◦ Headset: Jingye GH202 Aluminum Alloy Bearing Headset

⚡ E-System

◦ Drive Unit: 250W Mid-Drive Motor ◦ Battery Capacity: 972Wh ◦ Charger: 36V 2A ◦ Display: 1.47-Inch LCD Display ◦ Walk Assist Button: Yes ◦ Walk Assist Max Speed: 3.7 mph

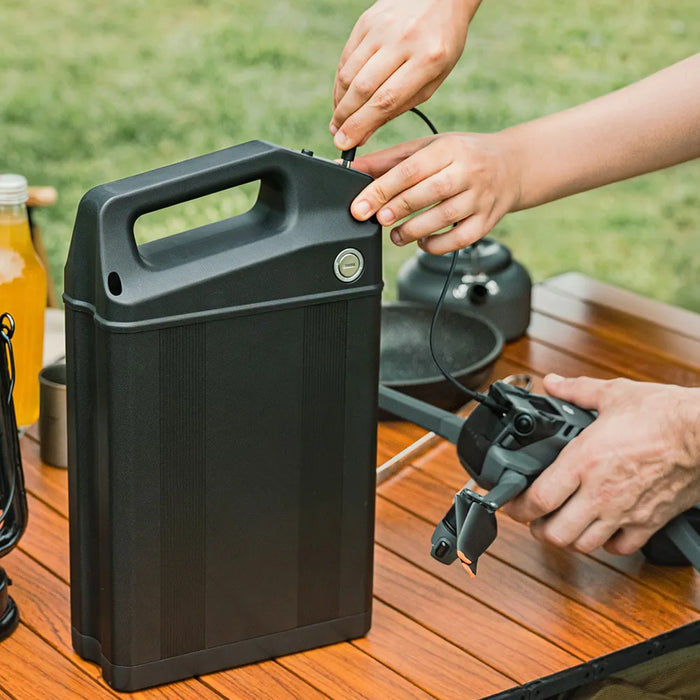

🔋 Battery & Charging

◦ Battery: 972Wh ◦ Charger Output: 36V 2A ◦ Battery Focus: Long-distance riding, cargo support, commuting, and daily utility use

⚙️ Drivetrain

◦ Rear Derailleur: RD-K500 Rear Derailleur ◦ Shifters: SL-M300C Trigger Shifter ◦ Chain: e9 Sport ◦ Crank: Aluminum Alloy 40T ◦ Rear Cogs: 9-Speed, 11–32T ◦ Sensor: Mivice X700

🛑 Braking System

◦ Brakes: HDM-5 Four-Piston Hydraulic Disc Brakes ◦ Brake Levers: HDM-5 Four-Piston Hydraulic Disc Brake Levers ◦ Braking Feel: Strong, stable, and controlled braking for loaded riding and daily commuting

🛞 Wheels & Tires

◦ Front Hub: Aluminum Alloy 2-Bearing Barrel Hub ◦ Rims: Aluminum Alloy Double-Layer Rims ◦ Spokes: Stainless Steel Spokes with Copper Heads ◦ Tires: CST 20 × 2.4" Tires ◦ Wheel Size: 20-Inch
