ENGWE - EP-2 3.0 Boost

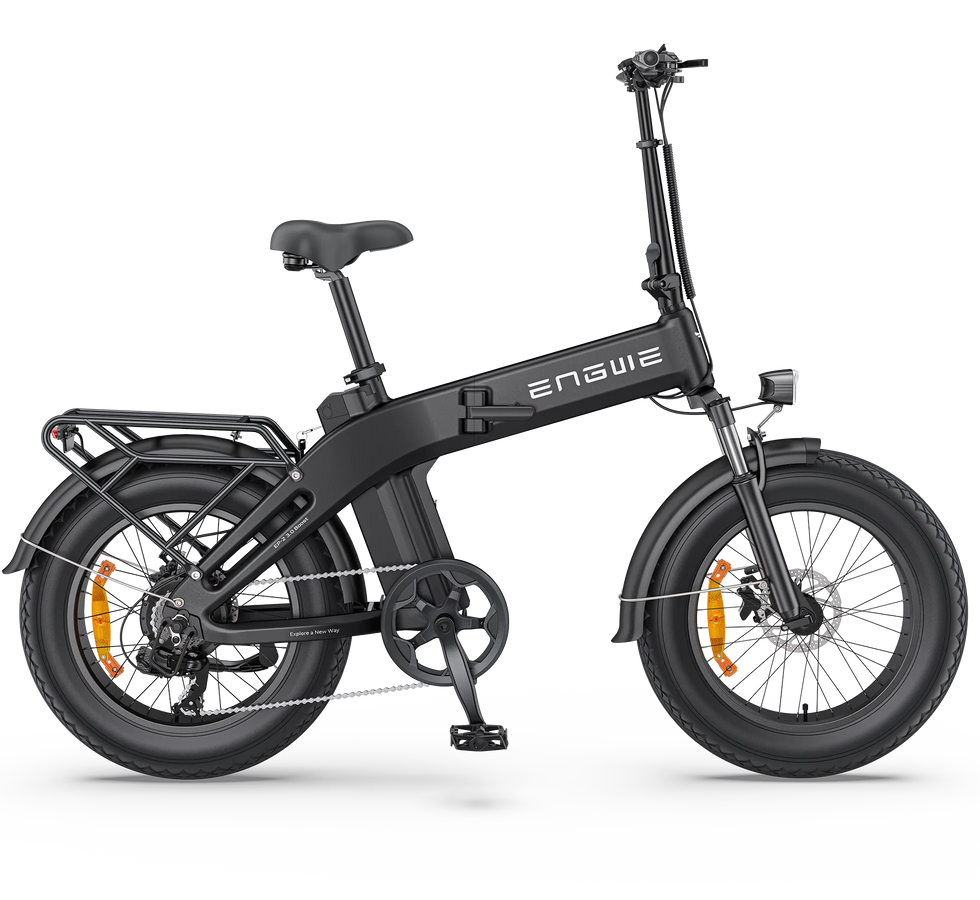

🚴‍♂️ ENGWE EP-2 3.0 Boost — 2026 Model Year

🔥 Foldable fat-tire e-bike for commuting + travel — torque sensor feel, 648Wh battery, and 20×4.0” tires for all-terrain comfort.

📦 General Information

◦ Model: ENGWE EP-2 3.0 Boost (2026)
◦ Type: Foldable Fat Tire e-Bike
◦ Frame: Magnesium Alloy (Step-through + Folding Design)
◦ Bike Weight: 32.3 kg
◦ Max Load Capacity: 150 kg
◦ Recommended Rider Height: 165–190 cm

⚡ Motor & Battery System

◦ Motor: 48V Rear Hub Motor
◦ Torque: 75 Nm
◦ Sensor: Torque Sensor (natural pedal response)

◦ Battery: 48V 13.5Ah (648Wh)
◦ Cell Type: 21700 Lithium Cells
◦ Protection: BMS (Battery Management System)

◦ Real-World Range:
◦ PAS 1: 120 km
◦ PAS 3: 100 km
◦ PAS 5: 80 km

◦ Charger: 54.6V 4A Fast Charger

🖥️ Display & App

◦ Display: 3.5” Color LCD (center-mounted)
◦ Data: Speed / Battery / Mode / Riding data
◦ Connectivity: Bluetooth
◦ ENGWE App Features: Bike control / Status monitoring / Settings adjustment

🚀 Performance

◦ Pedal Assist Levels: 5 levels (PAS 1–5)
◦ Terrain Capability: Asphalt / Gravel / Sand / Grass / Country trails

🦾 Suspension System

◦ Front Fork: Hydraulic Suspension
◦ Travel: 50 mm
◦ Adjustment: Adjustable + Lockout

🛑 Braking System

◦ Type: Hydraulic Disc Brakes
◦ Calipers: Dual-piston
◦ Rotors: 180 mm (Front & Rear)

⚙️ Drivetrain

◦ Rear Derailleur: Shimano Tourney 7-Speed
◦ Shifter: Shimano SL-M315
◦ Cassette: 14–28T
◦ Chainring: 48T

🦿 Wheels & Tires

◦ Tires: 20 × 4.0” Fat Tires
◦ Design: Hybrid All-Terrain
◦ Puncture Protection: 3 mm
◦ Rims: Double-wall Aluminum

💧 Waterproof Rating

◦ Wiring: IPX7
◦ Display & Lights: IPX6
◦ Motor / Controller / Battery: IPX5

💡 Lighting System

◦ Front Light: 30 Lux LED + Horn
◦ Rear Light: Brake-activated illumination + Vibration sensor system

🧩 Cockpit & Comfort

◦ Handlebar Width: 680 mm
◦ Stem: Foldable
◦ Saddle: ENGWE Comfort Seat
◦ Seatpost: 10-Level Adjustable
◦ Seat Clamp: Quick Release

💥 Key Highlights

◦ Foldable design — easy storage & transport
◦ Torque sensor — smooth, natural riding feel
◦ 648Wh battery — up to 120 km range (PAS 1)
◦ 20×4.0” fat tires — true all-terrain capability
◦ High waterproof protection — safer for rain and wet roads
◦ Ideal for daily commuting + travel
