EBOX - V3 60R

🏍️ EBOX V3 60R – Full Specifications

🔥 More power. More range. More control. Faster than ever.
The all-new EBOX V3 arrives with the brand-new EBX powertrain, delivering higher performance, stronger reliability, and sharper control in the same compact package you can still throw in your car trunk.

📦 General Information

◦ Frame Type: V3 Double Cradle
◦ Frame Construction:
 ◦ V3 wide frame (190mm)
 ◦ Large-capacity battery design
 ◦ Race-inspired revised geometry
◦ Waterproof Rating: IP54
◦ Wheelbase: 980 mm
◦ Seat Height: 650 mm
◦ Bike Weight: 50.8 kg (112 lbs)
◦ Max Load: 85 kg

🛞 Wheels & Tires

◦ Front Wheel: 14"
◦ Rear Wheel: 12"
◦ Front Tire: Upgraded 60/100-14 Dirt
◦ Rear Tire: Upgraded 80/100-12 Dirt

🦾 Suspension

◦ Fork: 150 mm travel USD
◦ Rear Suspension:
 ◦ Progressive mono shock
 ◦ 150 mm travel
◦ Tuning:
 ◦ Increased fork travel
 ◦ Increased preload
 ◦ Heavier oil

🛑 Braking System

◦ Front Brake:
 ◦ Hydraulic disc (Right lever)
 ◦ E-moto brakes
◦ Front Disc: 180 mm rotor, 4-bolt
◦ Rear Brake:
 ◦ Hydraulic disc (Left lever)
 ◦ E-moto brakes
◦ Rear Disc: 180 mm rotor, 4-bolt

⚙️ Drivetrain

◦ Chain: 219H, 120 links
◦ Gearing:
 ◦ Front: 10T
 ◦ Rear: 70T

⚡ Motor & Performance

◦ Motor:
 ◦ 60V EBX PMSM motor
 ◦ With temperature feedback
 ◦ With encoder
◦ Rated Power: 4.5 kW
◦ Peak Power: 5.2 kW (≈ 6.7 hp)
◦ Max RPM: 8,500
◦ Top Speed: 53 mph (85 km/h)
◦ Range: 25–28 miles (40–45 km)

🔋 Battery & Charging

◦ Battery: 60V 26Ah lithium
◦ Cells: 18,600 cells
◦ Battery Case:
 ◦ Steel case
 ◦ Built-in BMS
 ◦ QS8 connector
 ◦ Air breaker switch
◦ Charger:
 ◦ AC 100–240V
 ◦ Output 67.2V / 5A
◦ Charge Time: 4–5 hours

🖥️ Electronics & Controls

◦ Controller: 80A Fardriver
◦ Throttle: Surron-style full twist
◦ Display:
 ◦ TFT odometer
 ◦ 3 riding modes
 ◦ Fault code analysis
◦ Wiring:
 ◦ Automotive connectors
 ◦ Sealed wiring harness

🧰 Cockpit & Components

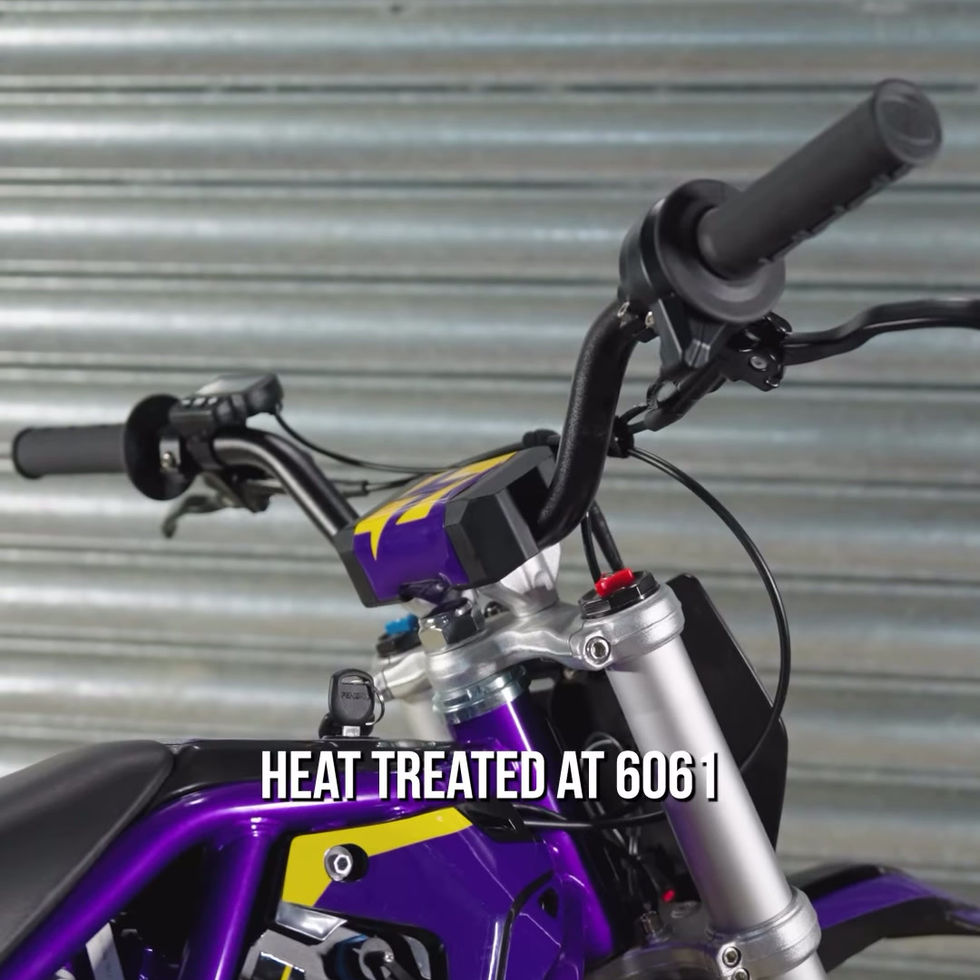

◦ Handlebar: 6061 T6 EBOX High Rise (1-piece)
◦ Bar Risers:
 ◦ Alloy cast
 ◦ 36 mm rise
 ◦ Ø22.2
◦ Seat: EBOX fat seat
◦ Footpegs: Standard

💥 Key Highlights

◦ Race-inspired wide V3 frame
◦ 5.2 kW peak power PMSM motor
◦ 85 km/h top speed
◦ 150 mm front & rear travel
◦ 80A Fardriver controller
◦ IP54 waterproof rating
◦ TFT display with 3 modes
◦ Steel-cased battery with QS8

🛡️ Warranty

◦ EBX powertrain:
 ◦ 1 year or 1000 miles (whichever comes first)
◦ Parts warranty:
 ◦ 6 months
