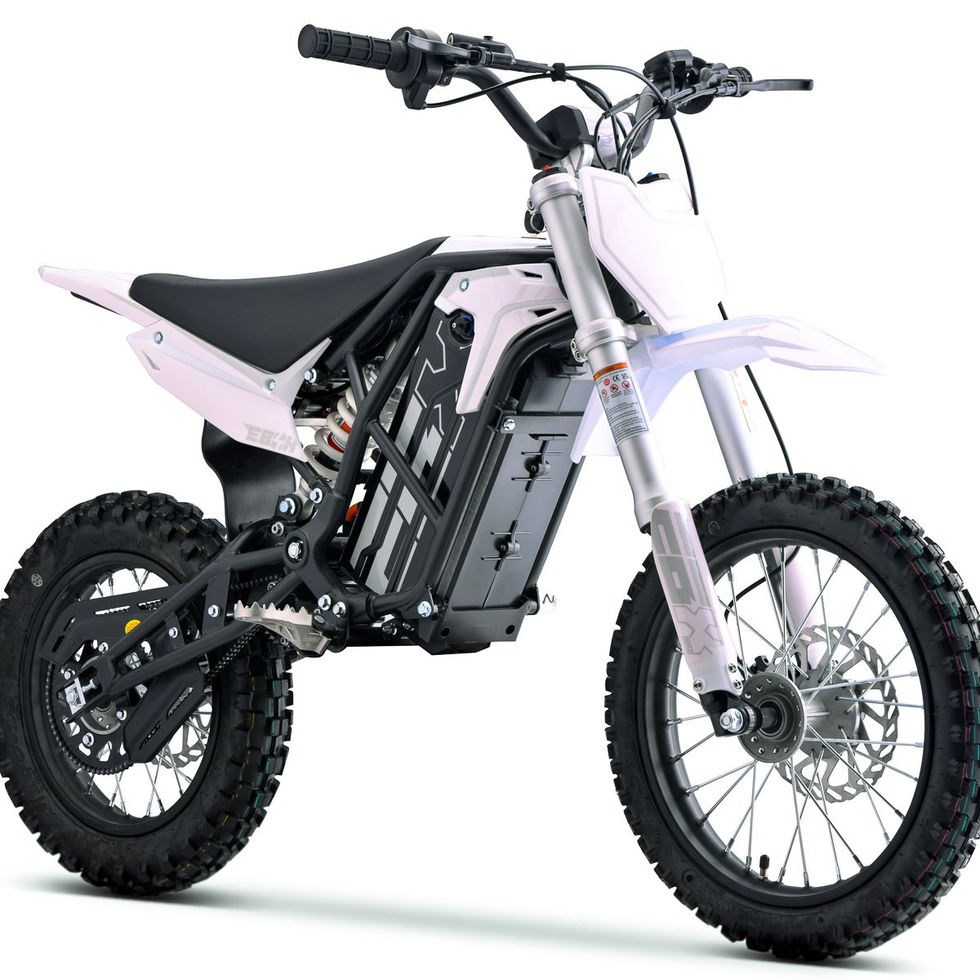

EBOX - V3 60

⚡ EBOX V3 60 — Full Specification

🔥 More power. More range. More control. Faster than ever.
The all-new EBOX V3 arrives with the brand-new EBX powertrain, delivering higher performance, stronger reliability, and sharper control in the same compact package you can still throw in your car trunk.


📦 GENERAL INFORMATION

◦ Frame Type: V3 Double Cradle
◦ Frame Construction: V3 wide frame (183 mm), race-inspired revised geometry
◦ Increased fork travel, increased preload, heavier oil
◦ Standard footpegs
◦ Wheelbase: 980 mm
◦ Seat Height: 650 mm
◦ Bike Weight: 46.2 kg (101 lbs)
◦ Max Load: 85 kg

🛞 WHEELS & TIRES

◦ Front Wheel Size: 14"
◦ Rear Wheel Size: 12"
◦ Front Tire: 60/100-14 Dirt
◦ Rear Tire: 80/100-12 Dirt

🦾 SUSPENSION

◦ Front Fork: 150 mm travel USD
◦ Rear Suspension: Progressive mono shock, 150 mm travel

🛑 BRAKING SYSTEM

◦ Front Brake: Hydraulic disc (right lever), e-moto brakes
◦ Front Disc: 180 mm rotor, 4-bolt
◦ Rear Brake: Hydraulic disc (left lever), e-moto brakes
◦ Rear Disc: 180 mm rotor, 4-bolt

⚙️ DRIVETRAIN

◦ Chain: 219H, 120 links
◦ Gearing: Front 10T / Rear 70T

🧭 HANDLEBAR & CONTROLS

◦ Handlebar: 6061 T6 EBOX High Rise, one-piece
◦ Bar Risers: Alloy cast 36 mm rise, Ø22.2
◦ Throttle: SURRON-style full twist
◦ Seat: EBOX fat seat

⚡ MOTOR & PERFORMANCE

◦ Motor: 60V EBX PMSM motor with temperature feedback and encoder
◦ Rated Power: 3.3 kW
◦ Peak Power: 3.7 kW (≈ 5 hp)
◦ Max RPM: 7,500
◦ Top Speed: 45 mph (≈ 72 km/h)
◦ Riding Modes: 3 selectable modes

🔋 BATTERY & ELECTRICAL

◦ Battery: 60V 18.2Ah (18,600 cells)
◦ Connector: QS8 with air breaker switch
◦ Controller: 80A Fardriver
◦ Wiring: Automotive sealed wiring harness
◦ Display: TFT odometer with 3 speed modes + fault code analysis

🔌 CHARGING & RANGE

◦ Charger: AC 100–240V → Output 67.2V, 3A
◦ Charge Time: 5–6 hours
◦ Range: 21–25 miles (35–40 km)

🛡️ WARRANTY

◦ Powertrain Warranty: EBX 1 year / 1,000 miles (whichever comes first)
◦ Parts Warranty: 6 months (T&C apply)
