CYCTRAC - EM5-3RD

🚴‍♂️ CYCTRAC EM5 – 3rd Generation Electric Mountain Bike

🔥 Bafang M430 Mid-Drive • 140Nm Torque • 960Wh Samsung Battery • Wireless 12-Speed Drivetrain The CYCTRAC EM5 3rd Generation is a high-performance electric mountain bike designed for riders who want powerful climbing performance, long-range battery capacity, premium suspension, and modern wireless shifting.

Equipped with a Bafang M430 mid-drive motor, up to 140Nm torque, a large 960Wh Samsung 21700 battery, RockShox Recon air fork, wireless 12-speed drivetrain, and 4-piston hydraulic disc brakes, the EM5 is built for mountain trails, long-distance touring, steep climbs, and demanding mixed-terrain riding.

📦 General Information

◦ Model: CYCTRAC EM5 – 3rd Generation ◦ Configuration: Wheeltop 12-Speed + Bafang M430 / 500W, High Specification ◦ Type: Electric Mountain Bike / Long-Range E-MTB ◦ Frame Sizes: 16" / 18" ◦ Wheel Compatibility: 29" / 27.5" ◦ Available Colors:  • Satin Silver  • Titanium Gray  • Dark Green

Net Weight

◦ Approximate Net Weight: 24.7–24.9 kg

🧱 Frame

◦ Frame Model: CYCTRAC EM5 ◦ Frame Material: AL7005 Aluminum Alloy ◦ Construction: Flat-Welded and Smooth-Finished Frame ◦ Cable Routing: Internal Cable Routing ◦ Rear Axle Standard: 12 × 148 mm Boost Thru-Axle ◦ Additional Feature: UDH Rear Derailleur Hanger

⚡ Motor System

◦ Motor Brand: Bafang ◦ Motor Model: M430 Mid-Drive Motor ◦ Rated Voltage: 48V ◦ Rated Power: 500W ◦ Maximum Torque: 140Nm ◦ Optional Motor Upgrade: 750W Motor Available

◦ Standard Speed Limit: 25 km/h ◦ Maximum Unlocked Speed: Up to 45 km/h

🔋 Battery System

◦ Battery Cells: Samsung 21700 Lithium-Ion Cells ◦ Battery Voltage: 48V ◦ Battery Capacity: 20Ah ◦ Battery Energy: 960Wh ◦ Battery Configuration: 48V 20A

🌍 Range

◦ Maximum Pedal-Assist Range: 150–180 km

Range Note

Actual range may vary depending on:

◦ Rider weight ◦ Terrain and elevation ◦ Pedal-assist level ◦ Tire pressure ◦ Weather conditions ◦ Riding speed ◦ Cargo load

🔌 Charging

◦ Charger Output: 4.5A / 245W ◦ Charger Connector: 3-Pin ◦ Full Charging Time: 4–5 Hours

🧠 Pedal Assist & Controls

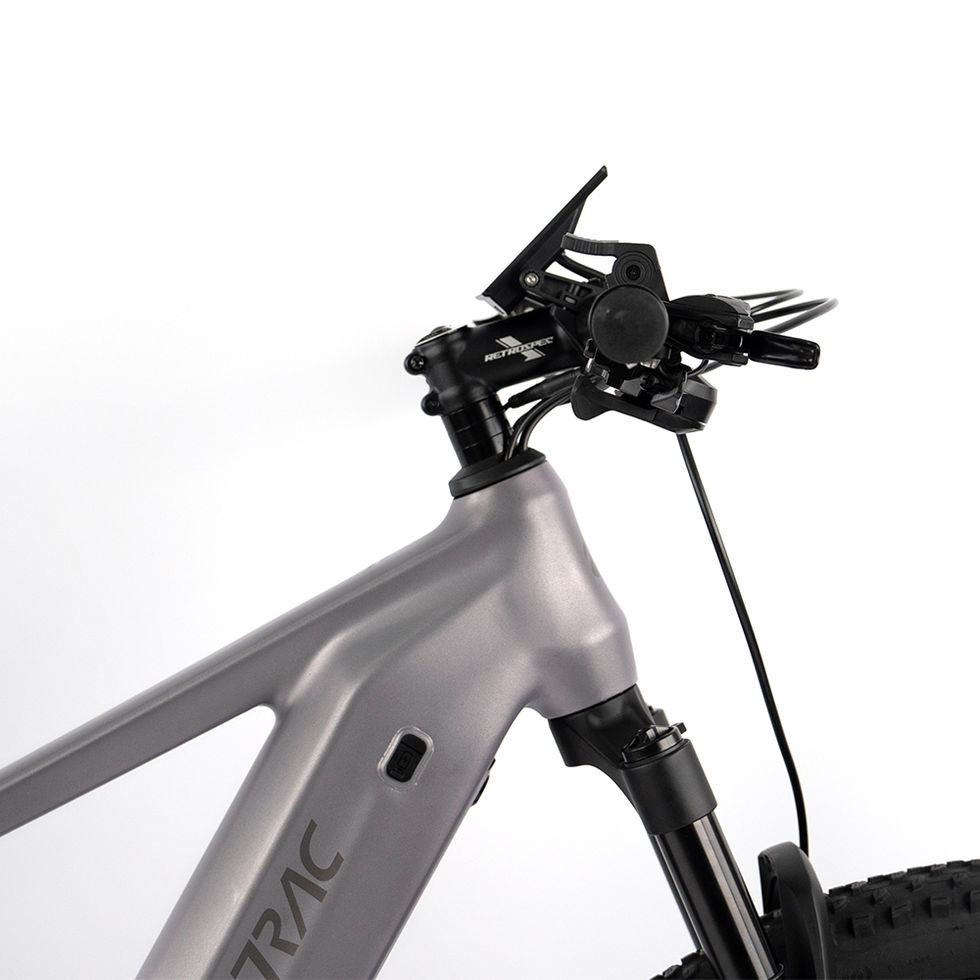

◦ Pedal Sensor: Torque + Cadence Sensor ◦ Throttle: Available ◦ Display: CYCTRAC C101 LCD Digital Display ◦ Charging Ports: USB / USB Type-C ◦ Riding Support: Responsive pedal assist with torque-based power delivery

🛞 Front Suspension

◦ Fork: RockShox Recon Air Fork ◦ Suspension Type: Air Suspension ◦ Travel: 120 mm ◦ Adjustment: Manual Adjustment ◦ Front Axle: 15 × 110 mm Boost Thru-Axle
