CYCTRAC - EM19 (Carbon)
฿169,900.00
🚴♂️ Electric Mountain Bike Specifications: EM19 Full-Suspension (🚴♂️
📌 General Information
Type: Full Suspension e-MTB (All Mountain)
Motor System: Bafang M820 Mid-Drive, 36V, 15A
Frame Size: 29" (Compatible with 27.5")
Available Sizes: 16” / 18”
Color Options: Black / Dark Green / Dark Blue (Full Holographic Option)
Net Weight: 20.5 kg
Maximum Payload: 150 kg
🛠️ Frameset & Suspension
Frame: CYCTRAC EM19 High Modulus Carbon Fiber Frame, Internal Cable Routing, Boost 12×148 Thru-Axle

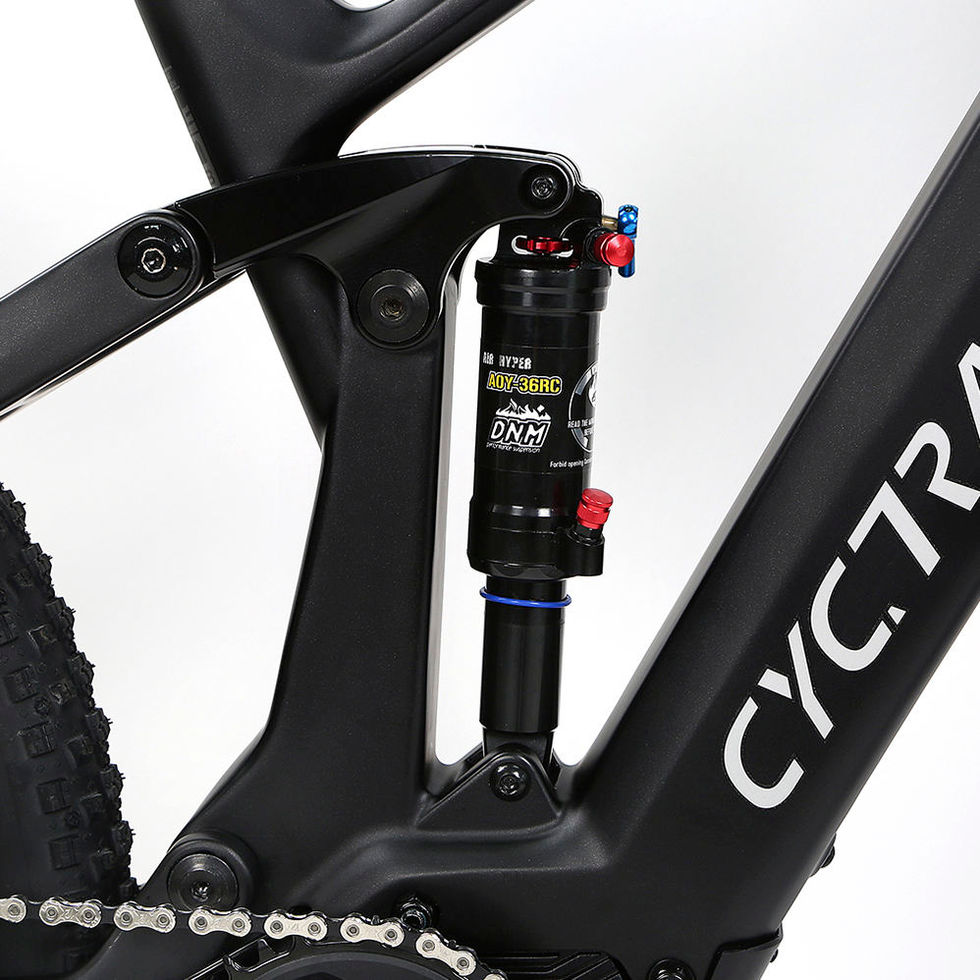

Rear Shock: DNM 200×55 mm, 140mm Travel
Front Fork: ROCKSHOX RECON Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15×110 Boost
⚙️ Drivetrain
Shifter: SHIMANO DEORE / M6100, 12-Speed
Front Chainring: Integrated with Mid-Motor, 34T
Cassette: SUNSHINE 12-Speed, 11-50T
Chain: SUMC 12-Speed
🛑 Braking System & Wheels
Brakes: RS-LD400 CNC Aluminum, 4-Piston Hydraulic Brakes with Ceramic Cooling Pads
Brake Rotors: 203mm Front / 203mm Rear
Hubs: Aluminum Alloy, 4 Sealed Bearings, Boost F15×110 / R12×148 Thru-Axle
Rims: Aluminum Alloy, Double Wall, Riveted, Size W24×H19 mm
Spokes: SHUNJIU Round 14G
Tires: MAXXIS CROSSMARK 29” × 2.25” (27.5” Compatible)
🧰 Components & Accessories
Handlebar: Aluminum Alloy, Matte Finish, Width 31.8×720 mm
Stem: 80 mm Length, Clamp 34.9 mm
Seatpost: KS Dropper Post, Hydraulic, Remote Controlled, Size 31.6×395×125 mm
Grips: PU Leather Lock-on, Size 22.2×120 mm
Saddle: RS MTB Comfortable Saddle
Pedals: CNC Aluminum with Bearings
🔋 Battery System
Battery Type: Samsung 21700 Lithium-Ion
Capacity: 540Wh, 36V 15A
Charging Time: 6-7 Hours
Charger: 2A Output, DC2.1 Plug
Waterproof Rating: IPX5
🏎️ Performance
Maximum Torque: 75 Nm (Peak Torque 95 Nm)
Top Speed: 25 km/h (Unlockable up to 45 km/h)
Range (Assisted Mode): 110-130 km per full charge
Climbing Ability: Up to 30° slopes
Pedal Assist Levels: 0-5 Levels
Sensor System: Torque Sensor + Cadence Sensor
Display: Bafang LCD Digital Display
