COSWHEEL - R19

🏍️ High-Power Electric Dirt Bike — 9000W / 72V 40Ah

🔥 Heavy-duty electric off-road bike with 9000W peak power, 72V 40Ah removable lithium battery, 240Nm torque, 96 km/h top speed, long-range performance up to 200 km with pedal assist, and professional off-road suspension.

📦 General Information

◦ Type: High-Power Electric Dirt Bike / Off-Road Electric Motorcycle
◦ Overall Size: 190 × 70 × 109 cm
◦ Packing Size: 155 × 340 × 81 cm
◦ Suitable Rider Height: 5'3" – 6'5" / 160–195 cm
◦ Seat Height: 33.5 inches / 85 cm
◦ Bike Height: 41.1 inches / 104.5 cm
◦ Wheelbase: 47.2 inches / 120 cm
◦ Handlebar Width: 26.7 inches / 68 cm
◦ Recommended Age: Adult

⚖️ Weight & Load Capacity

◦ Net Weight: 139 lbs / 63 kg (with battery)
◦ Max Loading: 440 lbs / 200 kg
◦ Safe Load: 330 lbs / 150 kg

🚀 Speed & Range

◦ Top Speed: 96 km/h / 60 mph
◦ Speed Limit Function: 25 km/h / 15 mph limit mode
◦ Speed Limit Control: Press and hold the function button “∧” for 8 seconds
◦ Restore Full Speed: Press and hold again for 8 seconds to restore 96 km/h / 60 mph mode
◦ Range — Class 2 Throttle-Only Mode: 75+ miles / 120 km
◦ Range — Class 1 PAS Pedal Assist: 124 miles / 200 km
◦ Climbing Angle: 45°
◦ Working Temperature: −10°C to 40°C
◦ Storage Temperature: −10°C to 40°C

🔋 Battery System

◦ Battery Type: 21700 Lithium Battery
◦ Battery Capacity: 40Ah

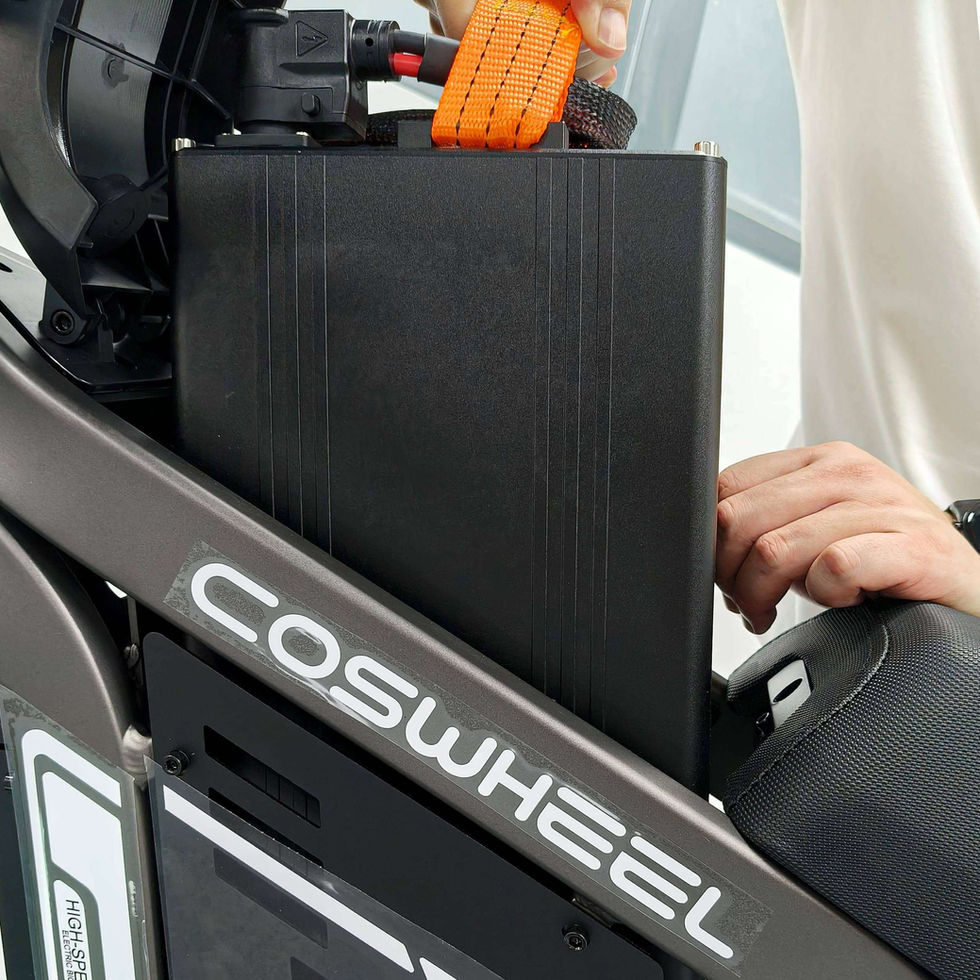

◦ Battery Design: Removable battery
◦ BMS: 100A

⚡ Motor & Controller

◦ Motor Type: DC Brushless Motor
◦ Peak Motor Power: 9000W
◦ Rated Voltage: 72V
◦ Torque: 240Nm
◦ Controller: 72V 90A
◦ Throttle: Grip Twist Throttle

🔌 Charger

◦ Charging Time: 3.5–8 hours
◦ Charger Specification: 84V 6A

🦾 Frame & Suspension

◦ Frame Material: Aluminium Alloy
◦ Front Suspension: Dual-shoulder front fork
◦ Front Fork Spec: 750L / 60LBS
◦ Front Suspension Feature: Adjustable damping
◦ Front Suspension Travel: 220 mm
◦ Rear Suspension: 310L × 950LBS
◦ Rear Suspension Feature: Adjustable damping
◦ Rear Suspension Travel: 300 mm

🛞 Wheels & Tires

◦ Front Tire: 70/100-19 professional off-road tire
◦ Rear Tire: 80/100-19 professional off-road tire
