BIANCHI - T-TRONIK X 9.2 TREKKING

🚴‍♂️ BIANCHI T-TRONIK X 9.2 TREKKING

🔥 A fully equipped trekking e-MTB designed for real-world use — complete with lights, fenders, and kickstand straight from the factory. Perfect for commuting, gravel paths, and long touring rides.

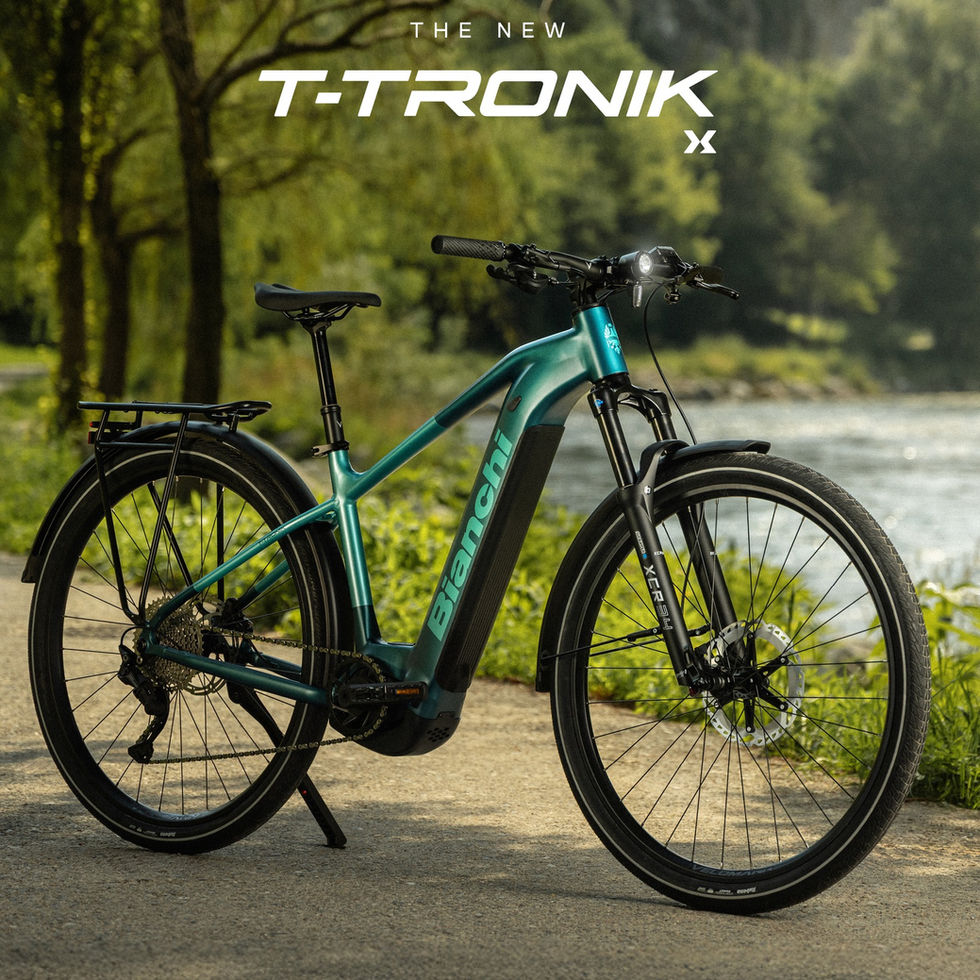

The BIANCHI T-TRONIK X 9.2 TREKKING (2026) is a hardtail electric mountain bike with a trekking configuration, ideal for both urban riding and off-road adventures.
It features the Bosch Performance Line motor with 75 Nm torque, a Purion 200 display, and a 600 Wh Powertube battery (horizontal), combined with a full factory accessory package for everyday practicality.

📦 General Information

◦ Model: BIANCHI T-TRONIK X 9.2 TREKKING (2026)
◦ Type: e-MTB Hardtail / Trekking Setup
◦ Motor: Bosch Performance Line (BDU3460) — 75 Nm
◦ Display / Control: Bosch Purion 200
◦ Battery: Bosch Powertube 600 Wh (Horizontal)
◦ Frame: Bianchi T-Tronik X Aluminium
◦ Rear Axle: 12 × 148 mm Thru-Axle
◦ Brake Mount: Post Mount 180
◦ Front Travel: 120 mm
◦ Cable Routing: Internal cable routing in steerer
◦ Battery Compatibility: 800 Wh compatible
◦ Sizes: SM / MD / LG / XL

⚡ Motor, Display & Battery

◦ Motor: Bosch Performance Line BDU3460
◦ Torque: 75 Nm
◦ Display / Controller: Bosch Purion 200
◦ Battery: Bosch Powertube 600 Wh (Horizontal)
◦ System: Bosch Smart System

🦾 Frame & Suspension

◦ Frame: Bianchi T-Tronik X Aluminium
◦ Fork: Suntour XCR34X (Air)
◦ Fork Travel: 120 mm
◦ Steerer: 1.5" Tapered
◦ Stanchions: 34 mm
◦ Front Axle: 15 × 110 Boost
◦ Rotor Compatibility: 180 mm minimum / 203 mm maximum
◦ Headset: FSA 1.5" (dual-side internal cable routing)

⚙️ Drivetrain

◦ Shifter: Shimano Deore SL-M4100 (Rapidfire Plus)
◦ Rear Derailleur: Shimano Deore RD-M4120 (10-speed, Shadow design)
◦ Crankset: FSA CK-320 / IS Aluminium Die-Cast, 170 mm
◦ Chain: KMC e10S EPT (anti-rust coating)
◦ Cassette: Sunrace CSMS2 11–42T

🛑 Braking System

◦ Brakes: Shimano Deore BR-MT410 (2-piston), resin pads
◦ Brake Levers: Shimano Deore BL-MT401
◦ Rotors:
 ◦ Front: Shimano SM-RT30 — 203 mm
 ◦ Rear: Saccon CDM80FD — 180 mm

🛞 Wheels & Tires

◦ Rims: Velomann 622 × 30, 32H
◦ Front Hub: Shimano TC500 Thru-Axle
◦ Rear Hub: Shimano TC500 Thru-Axle
◦ Tires: Obor Mike Bear 29 × 2.35 (60 TPI)

🧩 Cockpit

◦ Stem: Velomann Viper0 Alloy
 • Ø28.6 mm steerer
 • Barbore Ø31.8 mm
 • Length: 60 mm

◦ Handlebar: Velomann Aluminium
 • Rise: 15 mm
 • Width: 740 mm
 • Diameter: Ø31.8 mm

◦ Grips: Herrmans Luna lock 130 mm

🪑 Saddle & Seatpost

◦ Seat Clamp: Ursus Alloy Quick Release Ø34.9 mm
◦ Seatpost: Velomann AL2014 Ø31.6 mm

Seatpost configuration by size:
◦ SM: Seatback 0 mm
◦ MD / LG: Dropper 125 mm
◦ XL: Dropper 150 mm

◦ Saddle: Velomann GND Full-fit Start Up (carbon-steel rails) 262 × 145 mm

🧰 Accessories (Factory Equipped)

◦ Pedals: FPD NW-91K (PP body, steel cage)
◦ Fenders: Marcon Primo 65 (Aluminium)
◦ Kickstand: Ursus MOOI PLUS (supports up to 40 kg system load)
◦ Front Light: Spanninga X&O 50 (50 lux)
◦ Rear Light: Spanninga Pimento Large with reflector

💥 Key Highlights

◦  Bosch Performance Line 75 Nm + Purion 200 — smooth, controllable power for daily use
◦  600 Wh battery — excellent range for commuting and touring
◦  Full trekking equipment from factory — lights, fenders, kickstand, pedals included
◦  120 mm air suspension fork — adjustable comfort for mixed terrain
◦  Shimano Deore brakes with 203 / 180 mm rotors — reliable stopping power
◦  29” wheels with 2.35 tires — stable and versatile for road and dirt
