BIANCHI - T-TRONIK X 9.1

🚴‍♂️ BIANCHI T-TRONIK X 9.1

🔥 A powerful and versatile Italian e-MTB built for trail, touring, and everyday adventure — Bosch CX motor with 800 Wh battery and 120 mm air suspension for confident riding on any terrain.

The BIANCHI T-TRONIK X 9.1 (2026) is a hardtail electric mountain bike designed for dirt trails, mountain riding, and long-distance touring.
It features the Bosch Performance Line CX drive system paired with a Purion 200 display and a large 800 Wh Powertube battery, delivering strong power and excellent range.
With 120 mm air suspension, SRAM Guide T 4-piston brakes, and 29-inch wheels, it’s built for serious real-world riding performance.

📦 General Information

◦ Model: BIANCHI T-TRONIK X 9.1 (2026)
◦ Type: Electric Mountain Bike (e-MTB) — Hardtail
◦ Frame: Bianchi T-Tronik X Aluminium
◦ Front Travel: 120 mm
◦ Cable Routing: Internal cable routing in steerer
◦ Battery Compatibility: Bosch Powertube 800 Wh compatible
◦ Sizes: SM / MD / LG / XL
◦ Rear Axle: 12 × 148 mm Thru-Axle
◦ Brake Mount: Post Mount 180

⚡ Motor, Display & Battery

◦ Motor: Bosch Performance Line CX (BDU3840)
◦ Display / Controller: Bosch Purion 200
◦ Battery: Bosch Powertube 800 Wh
◦ System: Bosch Smart System

🦾 Frame & Suspension

◦ Frame: Bianchi T-Tronik X Aluminium
◦ Fork: Suntour XCR34X (Air)
◦ Fork Travel: 120 mm
◦ Steerer: 1.5" Tapered
◦ Stanchions: 34 mm
◦ Front Axle: 15 × 110 Boost
◦ Rotor Compatibility: 180 mm minimum / 203 mm maximum
◦ Headset: Acros Integrated Cable Routing

⚙️ Drivetrain

◦ Shifter: Shimano Deore SL-M4100 (Rapidfire Plus)
◦ Rear Derailleur: Shimano Deore RD-M4120 (10-speed, Shadow design)
◦ Crankset: FSA CK-320 / IS Aluminium Die-Cast, 170 mm
◦ Chain: KMC e10S EPT (anti-rust coating)
◦ Cassette: Sunrace CSMS2 11–42T

🛑 Braking System

◦ Brakes: SRAM Guide T (4-piston)
◦ Brake Levers: SRAM Guide T
◦ Rotors:
 ◦ Front: SRAM Centerline 200 mm
 ◦ Rear: SRAM Centerline 180 mm

🛞 Wheels & Tires

◦ Rims: Velomann 622 × 30, 32H
◦ Front Hub: Shimano TC500 Thru-Axle
◦ Rear Hub: Shimano TC500 Thru-Axle
◦ Tires: Obor Mike Bear 29 × 2.35 (60 TPI)

🧩 Cockpit

◦ Stem: Velomann Viper0 Alloy
 • Ø28.6 mm steerer
 • Barbore Ø31.8 mm
 • Length: 60 mm

◦ Handlebar: Velomann Aluminium
 • Rise: 15 mm
 • Width: 740 mm
 • Diameter: Ø31.8 mm

◦ Grips: Herrmans Luna lock 130 mm

🪑 Saddle & Seatpost

◦ Seat Clamp: Ursus Alloy Quick Release Ø34.9 mm
◦ Seatpost: Velomann AL2014 Ø31.6 mm

Seatpost configuration by size:
◦ SM: Seatback 0 mm

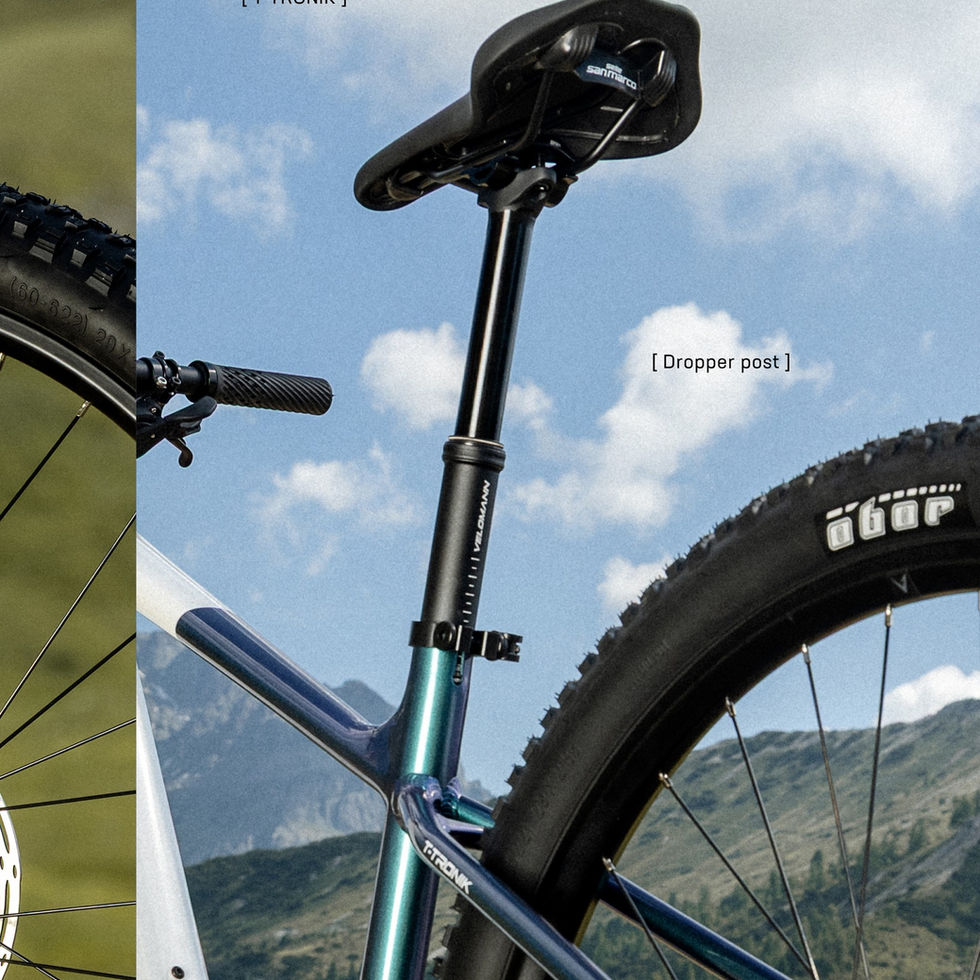

◦ MD / LG: Dropper 125 mm
◦ XL: Dropper 150 mm

◦ Saddle: Velomann GND Full-fit Start Up (carbon-steel rails) 262 × 145 mm

💥 Key Highlights

◦ Bosch Performance Line CX + Purion 200 — powerful, smooth, and easy to control
◦ Large 800 Wh battery — extended riding range for long trips
◦ 120 mm air fork — adjustable comfort and improved trail control
◦ SRAM Guide T 4-piston brakes — strong braking confidence on descents
◦ 29” wheels with 2.35 tires — stable traction on dirt and light trails
◦ Dropper seatpost (depending on size) — better control on climbs and descents
