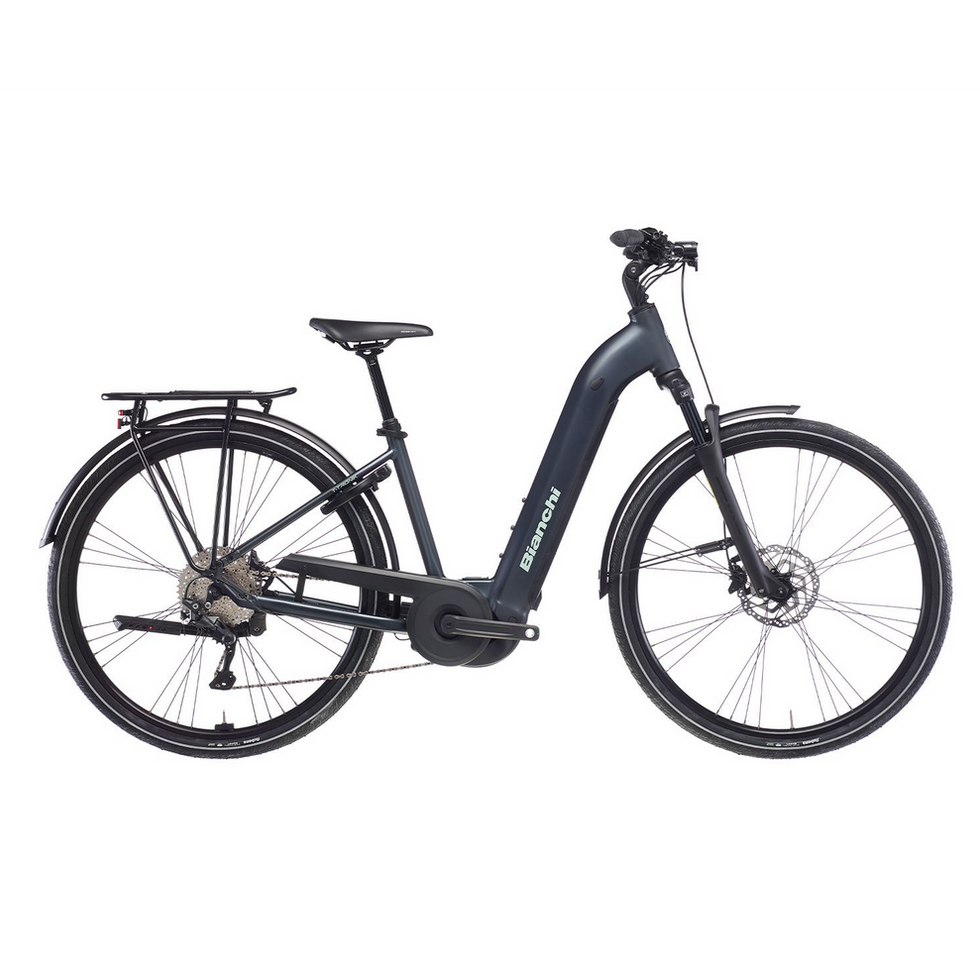

BIANCHI - T-TRONIK C8.2 CHAIN

🚴‍♂️ BIANCHI T-TRONIK C 8.2 CHAIN

🔥 A practical city / trekking e-bike designed for comfort and real daily use — Bosch 75 Nm motor, 600 Wh battery, and full commuting accessories included from the factory.

The BIANCHI T-TRONIK C 8.2 CHAIN (2026) is a City / Trekking e-Bike built for everyday commuting and relaxed touring.
It combines the Bosch Performance Line motor with a 600 Wh Powertube battery and a reliable Shimano Deore 10-speed chain drivetrain, making maintenance easy and spare parts widely available — ideal for urban riders who want one bike that does everything.

📦 General Information

◦ Model: BIANCHI T-TRONIK C 8.2 CHAIN (2026)
◦ Type: City / Trekking e-Bike (Chain Drive)
◦ Frame: Bianchi T-Tronik C Aluminium
◦ Sizes: SM / MD / LG / XL
◦ Rear Axle: 9 × 135 mm Quick Release
◦ Brake Mount: Post Mount 160
◦ Front Travel: 80 mm
◦ Cable Routing: Internal cable routing in steerer
◦ Battery Compatibility: Bosch 800 Wh compatible

⚡ Motor, Display & Battery

◦ Motor: Bosch Performance Line (BDU3460)
◦ Torque: 75 Nm
◦ Display / Control: Bosch Purion 200
◦ Battery: Bosch Powertube 600 Wh (Horizontal)
◦ System: Bosch Smart System

🦾 Frame & Suspension

◦ Fork: Suntour NVX32 29" (Coil)
◦ Fork Travel: 80 mm
◦ Steerer: 1.5" Tapered
◦ Stanchions: 32 mm
◦ Front Axle: 15 × 110 Boost
◦ Rotor Compatibility: 180 mm minimum / 203 mm maximum
◦ Headset: FSA 1.5" with dual-side internal cable routing

⚙️ Drivetrain

◦ Shifter: Shimano Deore SL-M4100 (Rapidfire Plus)
◦ Rear Derailleur: Shimano Deore RD-M4120 (10-speed, Shadow design)
◦ Crankset: FSA CK-320 / IS Aluminium Die-Cast, 170 mm
◦ Chain: KMC e10S EPT (anti-rust coating)
◦ Cassette: Sunrace CSMS2 11–42T

🛑 Braking System

◦ Brakes: Shimano Deore BR-MT410 (2-piston), resin pads
◦ Brake Levers: Shimano Deore BL-MT401
◦ Rotors:
 • Front: Shimano SM-RT10 — 180 mm
 • Rear: Shimano SM-RT10 — 180 mm

🛞 Wheels & Tires

◦ Rims: Velomann 622 × 25, 32H
◦ Front Hub: Shimano TC500 Thru-Axle
◦ Rear Hub: Formula CL-1422 Quick Release
◦ Spoke Pattern: 4 × 8
◦ Tires: Rubena Cityhopper 28 × 2.00
 • Puncture protection
 • Reflective sidewalls

🧩 Cockpit

◦ Stem: Velomann Aluminium adjustable, Ø31.8 mm
◦ Handlebar: Velomann Wien Aluminium
 • Rise: 20 mm
 • Width: 680 mm
 • Backsweep: 15°
◦ Grips: Herrmans Oxy 130 mm

🪑 Saddle & Seatpost

◦ Seat Clamp: Ursus Alloy Quick Release Ø34.9 mm
◦ Seatpost: Velomann Suspended

Seatpost configuration by size:
◦ SM: Suspended 50 mm
◦ MD / LG / XL: Dropper suspended
 • 80 mm dropper travel
 • 40 mm suspension

◦ Saddle: Selle Royal Essenza

🧰 Accessories

◦ Pedals: VP VPE-889P with reflectors
◦ Fenders: Marcon Primo 65 (Aluminium)
◦ Kickstand: Ursus MOOI PLUS (max system load 40 kg)
◦ Front Light: Lezyne Mini E65 (65 lux)
◦ Rear Light: Spanninga Pimento Large with reflector

💥 Key Highlights

◦ Bosch Performance Line 75 Nm — smooth and natural power for everyday riding
◦ 600 Wh battery — ideal for commuting and leisure trips
◦ Shimano Deore 10-speed drivetrain — easy maintenance and widely available parts
◦ Puncture-resistant tires with reflective strips — improved urban safety
◦ Fully equipped from factory — lights, fenders, kickstand ready to ride
◦ Suspension / dropper seatpost depending on size — extra comfort on rough roads
