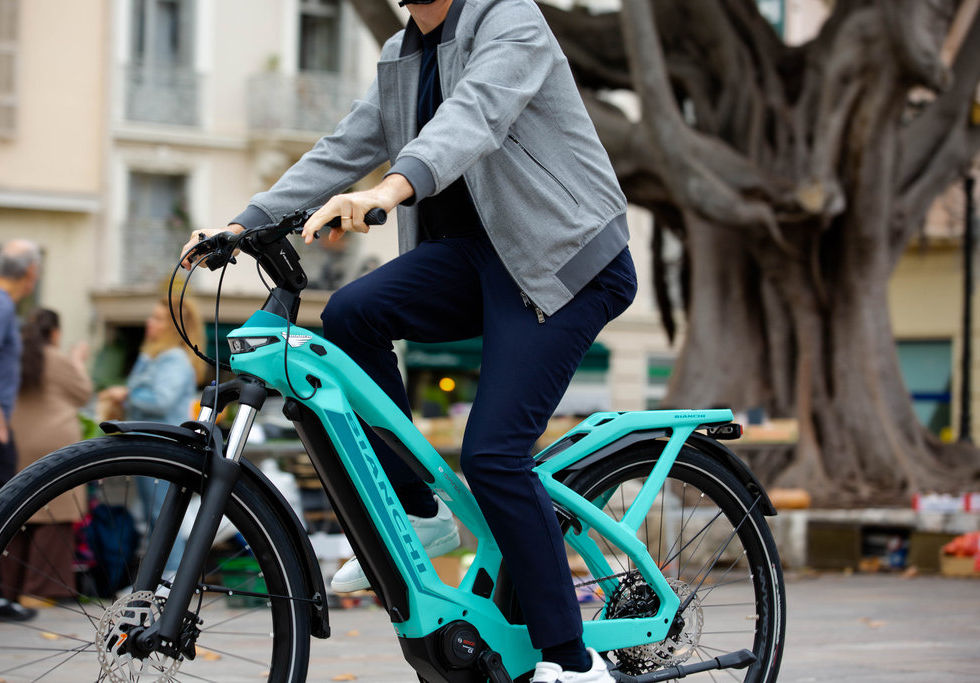

BIANCHI - E-OMNIA T-TYPE (DEORE)

🚴‍♂️ BIANCHI E-OMNIA T-TYPE (DEORE) (2026 Model Year)

🔥 Trekking / Urban utility e-bike from Bianchi — powerful 90Nm OLI motor + premium integrated rear rack design.
The BIANCHI E-OMNIA T-TYPE (2026) Deore is a trekking-style e-bike built for daily commuting and long touring rides. Key highlights include the OLI EDGE motor (90 Nm), a large 630Wh battery, and a rear carrier integrated into the frame for a clean look and real cargo capability.

📦 General Information

◦ Model: BIANCHI E-OMNIA T-TYPE (DEORE) (2026)
◦ Type: Trekking / Urban Utility e-Bike
◦ Frame: e-OMNIA T-Type ST ALU
◦ Sizes: 43 / 48 / 53
◦ Rear Dropouts: 12×148 mm thru-axle (special dropout for external derailleur)
◦ Brake Mount: Post Mount 180
◦ Frame Lock Compatible: Yes
◦ Rear Carrier: Integrated into the frame design

⚡ Motor & Battery

◦ Motor: OLI EDGE
◦ Max Torque: 90 Nm
◦ Battery: OLI 630Wh

🦾 Frame & Suspension

◦ Fork: Suntour XCM34-Boost NLO DS 29"
◦ Fork Travel: 120 mm
◦ Headset: FSA NO.55R/558 1.5

⚙️ Drivetrain

◦ Shifter: Shimano SL-M4100-R (10-speed)
◦ Rear Derailleur: Shimano RD-M4120 (10-speed)
◦ Crankset: FSA E-Bike 170 mm, 38T
◦ Bottom Bracket: Included in the drive unit
◦ Chain: KMC e10S NPBK
◦ Cassette: 11–42T

🛑 Braking System

◦ Brakes: Shimano MT-200 (2-piston), mineral oil
◦ Brake Levers: Shimano BL-MT200
◦ Rotors: 180 mm, Center Lock

🦿 Wheels & Tires

◦ Wheels: Velomann Tubeless Ready 29" (25-622)
◦ Tires: Vittoria e-Randonneur 50-622

🧩 Cockpit

◦ Stem: Velomann Ø31.8
◦ Stem Length: 90 mm (SM) / 110 mm (MD, LG)
◦ Handlebar: Velomann 31.8 / 680 mm
◦ Bar Shape: Rise 20 mm / Sweep 15°
◦ Grips: Hermans Grip 130

🪑 Saddle & Seatpost

◦ Seatpost: Velomann 31.6×350 (Suspension Seatpost)
◦ Saddle: Velomann 285×187 mm (Steel rail)

🧰 Accessories

◦ Pedals: VP VPE-889P (with reflectors)
◦ Fenders: SKS A65R
◦ Kickstand: Velomann (load 35 kg)
◦ Rear Carrier: Integrated into the frame design
◦ Front Light: Spanninga Custom Integrated Light (40 lux)
◦ Rear Light: Spanninga Custom Integrated Light

💥 Key Highlights

◦ OLI EDGE 90 Nm motor — strong climbing support and quick acceleration
◦ 630Wh battery — ideal for touring and daily long-distance use
◦ Integrated rear carrier — premium look, high strength, real cargo utility
◦ 29” tubeless-ready wheels + Vittoria e-Randonneur tires — durable and efficient for city/touring
◦ Integrated lights + fenders + kickstand — ready to ride out of the box
