BIANCHI - OLTRE (ULTEGRA)

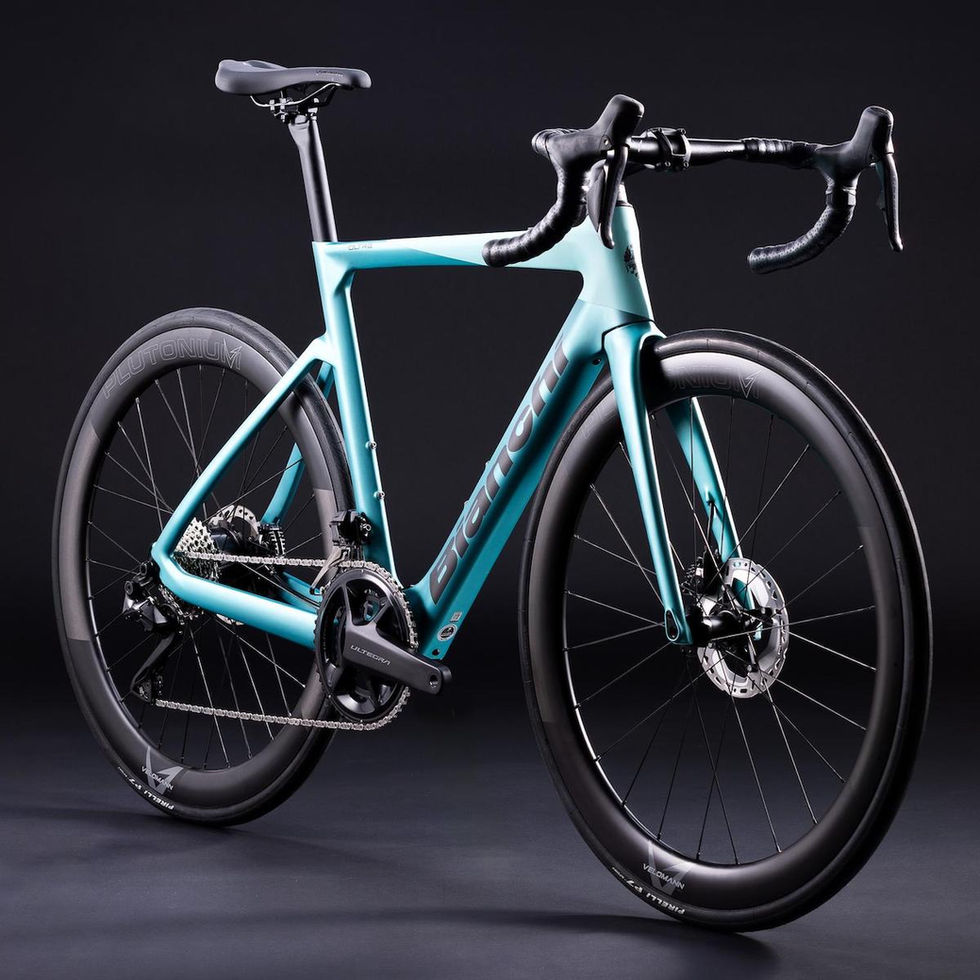

🚴‍♂️ BIANCHI E-OLTRE ULTEGRA Di2 (2026 Model Year)

🔥 Premium Aero E-Road — lightweight, aerodynamic, smooth and quiet with Mahle X30 assist + Ultegra Di2 12-speed.
The BIANCHI E-OLTRE (2026) Ultegra Di2 is an aero-style e-road bike built for speed and efficiency, with a natural-feeling Mahle X30 system (40 Nm / 250W) and a clean ICR fully internal cable routing design. Finished with 50 mm carbon wheels and tubeless-ready tires, it’s ideal for fast rides and long-distance performance.

📦 General Information

◦ Model: BIANCHI E-OLTRE ULTEGRA Di2 (2026)
◦ Type: E-Road / Aero e-Road Bike
◦ Frame: Oltre e-road Carbon, Fully Internal Cable Routing (ICR)
◦ Drivetrain Compatibility: Mechanical & Electronic Groupsets
◦ Bottom Bracket: BB Pressfit
◦ Brake Standard: Disc Brake Flat Mount
◦ Rear OLD: 135 mm
◦ Sizes: 47 / 50 / 53 / 55 / 57 / 59 / 61

⚡ Motor, Display & Battery

◦ Motor: Mahle X30 Drive Unit
◦ Max Torque: 40 Nm
◦ Motor Power: 250W
◦ Control Unit: iWoc ONE Head Unit
◦ E-Shifters Support: Yes
◦ Battery: Mahle iX250w Battery Pack

🦾 Frameset

◦ Frame: Oltre e-road Carbon (Aero)
◦ Fork: Full Carbon Aero Road ICR, Integrated Head
◦ Brake Mount: Disc Flat Mount
◦ Front Axle: 12×100 Thru Axle
◦ Headset: Acros / FSA (Internal Cable Routing ICR)

⚙️ Drivetrain

◦ Shifters: Shimano Ultegra Di2 12-speed
◦ Front Derailleur: Shimano Ultegra Di2 FD-R8150
◦ Rear Derailleur: Shimano Ultegra Di2 RD-R8150
◦ Crankset: Shimano Ultegra FC-R8100 (Hollowtech II) 50/34T
◦ Crank Length:
◦ 47 / 50 / 53: 170 mm
◦ 55 / 57 / 59: 172.5 mm
◦ 61: 175 mm
◦ Torque Sensor / BB: Mahle Torque Sensor BB
◦ Chain: Shimano 105 12-speed
◦ Cassette: Shimano 105 12-speed 11–34T
◦ Sprocket Steps: 11-12-13-14-15-17-19-21-24-27-30-34T

🛑 Braking System

◦ Brake System: Included in the shifter (integrated with levers)
◦ Front Rotor: Shimano MT800 Centerlock 160 mm
◦ Rear Rotor: Shimano RT86 6-bolt 160 mm

🦿 Wheels & Tires

◦ Wheelset: Velomann Plutonium (Carbon)
◦ Wheel Spec: 21-622, 50 mm profile
◦ Spoke Count: Front 24H / Rear 32H
◦ Tubeless: Tubeless Ready
◦ Tires: Vittoria Rubino V 28-622 TLR, G2.0, 100TPI

🧩 Cockpit

◦ Stem: Velomann AL6061 (Fully Internal Cable Routing), Acros AICR compatible
◦ Stem Length by Size:
◦ 90 mm (47)
◦ 100 mm (50/53)
◦ 110 mm (55/57)
◦ 120 mm (59/61)
◦ Handlebar: Velomann Aero Compact Ø31.8 mm
◦ Bar Geometry: Reach 74 mm / Drop 116 mm
◦ Bar Width by Size:
◦ 400 mm (47–53)
◦ 420 mm (55–61)
◦ Bar Tape: Bianchi Hexagon Tape 2.5 mm (Black)

🪑 Seatpost & Saddle

◦ Seatpost Clamp: Included in the frame
◦ Seatpost: Full Carbon Aero Shape
◦ Adjustment System: Adjustable + reversible aluminum head (±35 mm)
◦ Seatpost Length:
◦ 300 mm (47–50)
◦ 350 mm (53–61)
◦ Saddle: Velomann Gnd Full-fit 262×145
◦ Saddle Rails: Carbon Steel Rail

💥 Key Highlights

◦ Mahle X30 (40 Nm) — extremely smooth, natural-feeling assist
◦ Aero carbon frame + ICR internal routing — clean, premium race-bike look
◦ Ultegra Di2 12-speed — fast, precise, reliable shifting
◦ 50 mm carbon wheels (tubeless ready) — fast rolling and excellent speed retention
◦ Vittoria Rubino V TLR 100TPI — strong grip and comfort for training or long rides
