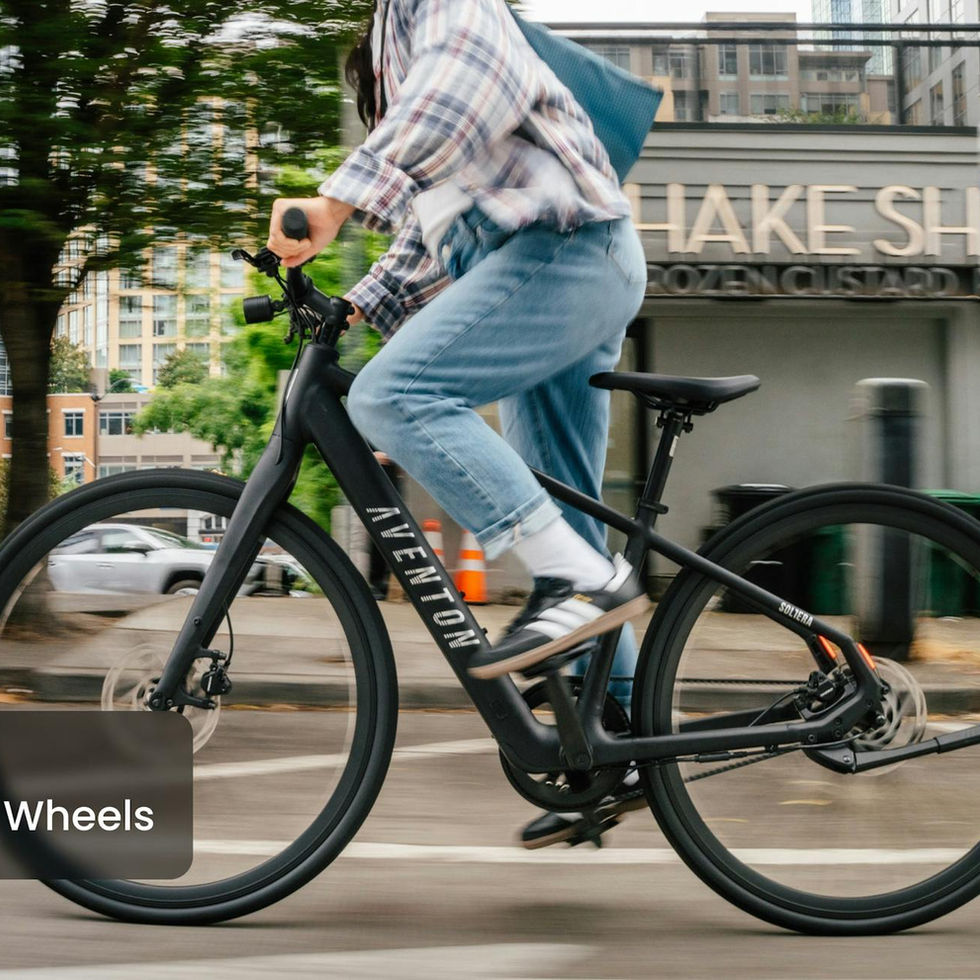

AVENTON - Soltera 3 ADV Ebike

🚴‍♂️ Aventon Soltera 3 ADV eBike (2026 Model Year)

🔥 Urban Belt-Drive eBike — Lightweight, clean, stylish, and ultra low maintenance

📦 General Information

◦ Model: Aventon Soltera 3 ADV eBike (2026) ◦ Type: Urban / City Electric Bike ◦ Primary Use: Urban Riding ◦ Frame Style: Step-Over ◦ Bike Weight: 37 lbs (≈ 16.8 kg) ◦ Max Total Load Capacity: 300 lbs (≈ 136 kg) ◦ Recommended Rider Height: ◦ S: 5'1" – 5'5" ◦ M: 5'5" – 5'9" ◦ L: 5'9" – 6'1" ◦ XL: 5'1" – 6'4" ◦ Speed Class: Class 1 ◦ Maximum Range: Up to 70 miles (≈ 112 km) ◦ Waterproof Rating: IPX6 ◦ Safety Certification: TUV Certified

⚡ Motor & Battery System

◦ Motor: 36V Hub Motor ◦ Power: 250W ◦ Torque: 40 Nm ◦ Battery: Integrated Lithium-Ion Battery ◦ Voltage: 36.9V ◦ Capacity: 9.94Ah ◦ Total Energy: 366.8Wh ◦ Battery Weight: 4.2 lbs ◦ Controller: 36V / 15A ◦ Sensor: Double-Sided Bottom Bracket Torque Sensor ◦ Throttle: N/A ◦ Charger: 36V Output / 42V 4A ◦ Charging Time: 0–100% in approximately 3–4 hours

🖥️ Display & Controls

◦ Display: Aventon BC147 ◦ Shows: Battery / Speed / Assist Level ◦ Lighting System: ◦ Integrated Front Light ◦ Integrated Rear Light ◦ Integrated Turn Signals

🦾 Frame & Fork

◦ Frame: 6061 Double-Butted Aluminum Alloy ◦ Internal Battery Integration: Yes ◦ Rear Spacing: 142 mm ◦ Fork Spacing: 100 mm ◦ Fork: Rigid Aluminum Fork

🛑 Braking System

◦ Front Brake: Tektro HD-T3020 Hydraulic Disc Brake (No e-cutoff) ◦ Rear Brake: Tektro HD-T3020 Hydraulic Disc Brake (No e-cutoff) ◦ Front Rotor: Tektro 180 mm 6-Bolt ◦ Rear Rotor: Tektro 180 mm 6-Bolt

⚙️ Drivetrain

◦ Drivetrain Type: Single Speed ◦ Belt System: Gates Carbon Belt Drive ◦ Chainring: 60T ◦ Rear Hub Flywheel: 22T ◦ Belt: Gates Carbon Belt Drive 122T CDN ◦ Chainring BCD: 130 ◦ Crankset: 3-Piece, 165 mm crank arm ◦ Bottom Bracket: ◦ Square Taper ◦ Sealed ◦ Double-Sided Torque Sensor ◦ Size: 83 mm × 158.5 mm ◦ Pedals: 9/16" Composite Platform

🦿 Wheels & Tires

◦ Front Wheel: 700c Double Wall Aluminum Rim ◦ 32 Spoke / Thru Axle ◦ Rear Wheel: 700c Double Wall Aluminum Rim ◦ 36 Spoke / Nutted Hub Drive Motor ◦ Tires: Kenda K1085 700×38C

🧩 Cockpit & Components

◦ Saddle: Aventon Saddle ◦ Seatpost: Aventon 27.2 ◦ Seatpost Clamp: 31.8 mm ◦ Handlebars: Aluminum ◦ Clamp Diameter: 31.8 mm ◦ Width: 680 mm ◦ Stem: 31.8 mm clamp / 70 mm length / 15° angle ◦ Grips: Aventon Lock-On Grips ◦ Headset: Aventon Headset with Integrated Cable Routing

🎁 Included Accessories

◦ Kickstand: Included in the accessory box

💥 Key Highlights

◦ Lightweight at only 16.8 kg ◦ Gates Carbon Belt Drive system (quiet + clean + low maintenance) ◦ Single Speed = simple and reliable ◦ Double-sided torque sensor for natural pedaling feel ◦ Integrated front/rear lights + turn signals (great for commuting) ◦ Hydraulic disc brakes front & rear ◦ Up to 70 miles (≈112 km) range
