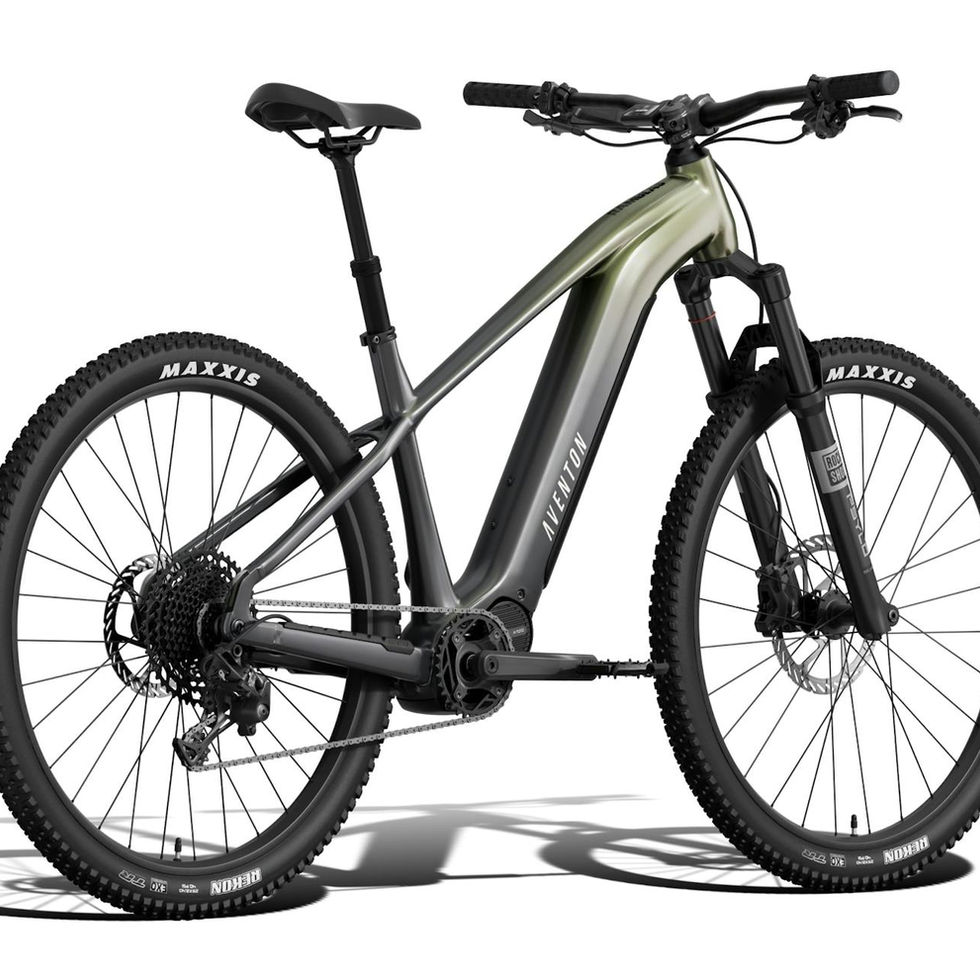

AVENTON - Ramblas ADV Ebike

🚵‍♂️ Aventon Ramblas ADV EBike — 2026 Model Year

🔥 Hardtail e-MTB built for real trail riding — 100Nm mid-drive, 708Wh battery, RockShox Psylo Silver R, and SRAM 12-speed for confident climbing and control.

📦 General Information

◦ Model: Aventon Ramblas ADV eBike (2026) ◦ Type: Hardtail Electric Mountain Bike (e-MTB) ◦ Bike Weight: 54 lbs (≈ 24.5 kg) ◦ Max Total Load Capacity: 300 lbs (≈ 136 kg) ◦ Recommended Rider Height: 5'5" – 6'5" ◦ Box Size: 59 × 13 × 36 in ◦ Speed Class: Class 1 ◦ Maximum Range: Up to 90 miles (≈ 145 km) ◦ Waterproof Rating: Bike IPX6 / Motor IP67 ◦ Safety Certification: TUV Certified + UL 2849 / UL 2271 compliant

⚡ Motor & Battery System

◦ Motor: Aventon A100 Mid-Drive ◦ Voltage: 36V ◦ Rated Power: 250W ◦ Peak Power: 750W ◦ Torque: 100 Nm ◦ Motor Waterproof Rating: IP67

◦ Battery: Aventon 708Wh ◦ Voltage: 36V ◦ Cells: LG 21700 ◦ Battery Weight: 8.44 lbs

◦ Sensor: Double-Sided Torque Sensor ◦ Throttle: N/A (Class 1) ◦ Charger: 42V 4A ◦ Charging Time: 0–100% ≈ 5 hours

🖥️ Display & Controls

◦ Display: Aventon BC201 ◦ Shows: Battery / Speed / Assist Mode + full ride data ◦ Lighting: Factory-installed integrated lights

🦾 Frame

◦ Frame: 6061 Single-Butted Aluminum Alloy ◦ Rear Spacing: 12 × 148 mm ◦ Fork Spacing: 15 × 110 mm BOOST

🛞 Suspension System

◦ Front Fork: RockShox Psylo Silver R ◦ Stanchions: 35 mm ◦ Spring Type: Coil ◦ Offset: 44 mm ◦ Axle: 15 × 110 mm BOOST ◦ Steerer: 1.5" Tapered ◦ Adjustment: Adjustable rebound

🛑 Braking System

◦ Front Brake: SRAM DB6 4-Piston Hydraulic Disc ◦ Rear Brake: SRAM DB6 4-Piston Hydraulic Disc ◦ Rotors: SRAM G2 200 mm (Front) / 200 mm (Rear)

⚙️ Drivetrain

◦ Rear Derailleur: SRAM NX 12-Speed ◦ Shifter: SRAM NX ◦ Chain: SRAM 12-Speed ◦ Cassette: SRAM SX 12-Speed 10–50T ◦ Chainring: SRAM 34T ◦ Chainring BCD: 104 ◦ Crankset: 165 mm ISIS splined ◦ Pedals: 9/16" Alloy Platform

🦿 Wheels & Tires

◦ Front Wheel: 29" ◦ 32H / BOOST thru axle / Presta / Tubeless Ready

◦ Rear Wheel: 29" ◦ 32H / BOOST thru axle / Presta / Tubeless Ready

◦ Tires: Maxxis Rekon 29 × 2.4" (Tubeless Ready)

🧩 Cockpit & Components

◦ Saddle: Aventon Saddle

◦ Seatpost: Manic LC Dropper Post ◦ Diameter: 31.6 mm ◦ Length: 395 mm ◦ Travel: 150 mm (Size M–XL)

◦ Seatpost Clamp: 34.9 mm

◦ Handlebar: 760 mm width / 35 mm clamp ◦ Rise: 33 mm ◦ Upsweep: 3° ◦ Backsweep: 9°

◦ Grips: Aventon Lock-On Grips ◦ Headset: T51Ks 28.6 × 56 – 56 × 39.8 / H: 23.4 mm

🧰 Included Accessories

◦ Kickstand: Included (in accessory box) ◦ Lights: Factory-installed lights included

💥 Key Highlights

◦  100Nm mid-drive torque for real climbing performance ◦  708Wh battery + up to 145 km range ◦  RockShox Psylo Silver R trail fork (35mm) ◦  SRAM DB6 4-piston + 200mm rotors front & rear ◦  SRAM 12-speed gearing with 10–50T climbing range ◦  29" tubeless-ready wheels + Maxxis Rekon 2.4 tires ◦  Dropper post included for safer descents and technical riding ◦  Class 1 setup for a natural MTB feel + strong waterproof ratings
