AVENTON - Current EXP Ebike

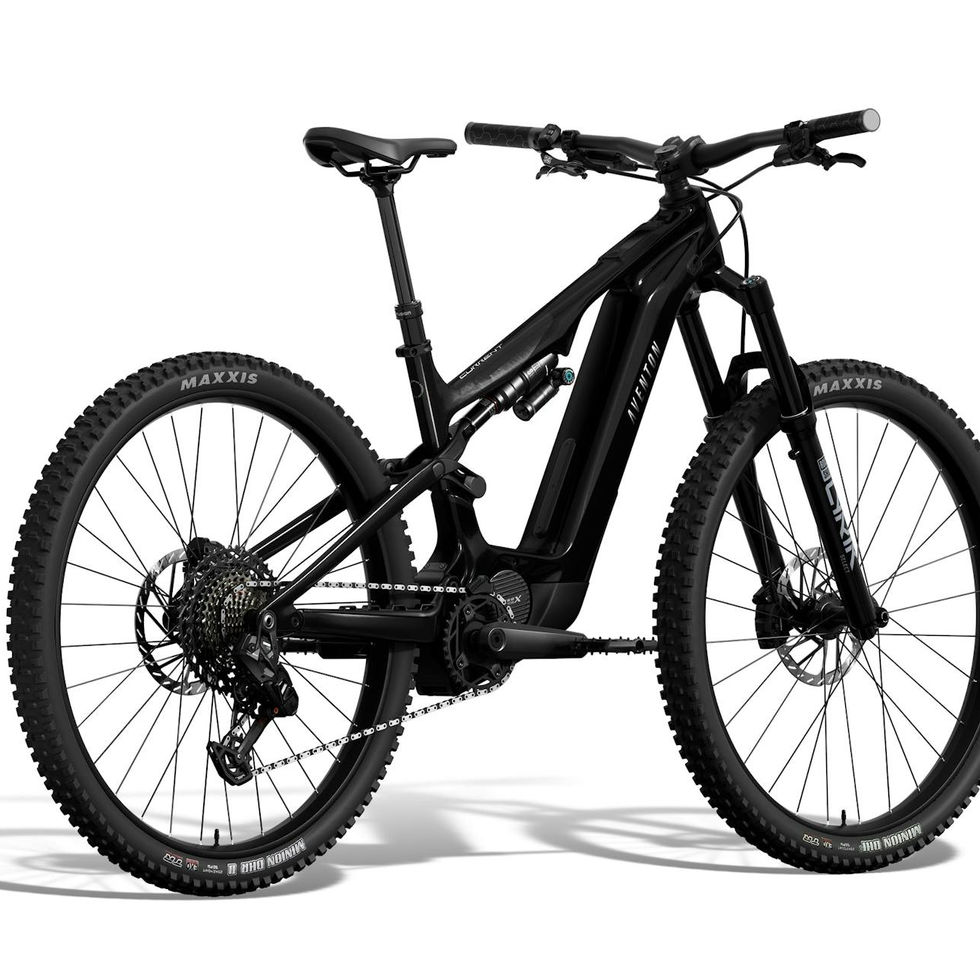

🚵‍♂️ Aventon Current EXP eBike — 2026 Model Year

🔥 Full-power Trail / All-Mountain e-MTB — real suspension, real torque, and next-gen smart tech with 4G/GPS/anti-theft + touchscreen control.

📦 General Information

◦ Model: Aventon Current EXP eBike (2026) ◦ Type: Full Suspension Electric Mountain Bike (e-MTB) ◦ Bike Weight: 53 lbs (≈ 24 kg) ◦ Max Total Load Capacity: 300 lbs (≈ 136 kg) ◦ Recommended Rider Height: 5'1" – 6'3" ◦ Speed Class: Class 1 (Convertible to Class 3) ◦ Maximum Range: Up to 105 miles (≈ 169 km) ◦ Waterproof Rating: ◦ Bike System: IPX6 ◦ Motor: IP67

⚡ Motor & Battery System

◦ Motor: Aventon Ultro X Mid-Drive System ◦ Peak Power: 750W ◦ BOOST Mode Peak Power: 850W ◦ Standard Torque: 110 Nm ◦ BOOST Mode Torque: 120 Nm ◦ Support Level: 400% ◦ BOOST Mode Support: 500%

◦ Battery: 800Wh Integrated Battery ◦ Fully integrated into the frame ◦ Battery Weight: 9.2 lbs

◦ Charger: 42V 4A ◦ Charging Time: 0–100% ≈ 6 hours

🖥️ Display & Smart System

◦ Display: Integrated Top Tube Touchscreen Display ◦ Smart Features: ◦ Jump Tracking ◦ Overrun ◦ Wheel Lift Control ◦ 4G / GPS Tracking ◦ Anti-Theft Protection ◦ BOOST Mode ◦ AUTO Assist Mode

🪶 Frame Construction

◦ Front Triangle: Carbon Fiber ◦ Rear Triangle: 6061 Aluminum ◦ Rear Hub Spacing: 12 × 148 mm ◦ Front Fork Spacing: 15 × 110 mm

🛞 Suspension System

◦ Front Fork: RockShox Lyrik Select ◦ Travel: 150 mm ◦ Offset: 44 mm

◦ Rear Shock: RockShox Super Deluxe Select+ ◦ Size: 210 × 55 mm

🛑 Braking System

◦ Front Brake: SRAM Maven Base ◦ Hydraulic Disc Brake / 4-piston caliper ◦ Rotor: 200 mm

◦ Rear Brake: SRAM Maven Base ◦ Hydraulic Disc Brake / 4-piston caliper ◦ Rotor: 200 mm

⚙️ Drivetrain

◦ Rear Derailleur: SRAM S1000 Transmission (12-Speed) ◦ Shifter: SRAM AXS Transmission Shift Pod ◦ Chain: SRAM Eagle 70 Transmission ◦ Cassette: SRAM XS-1270 T-Type 10–52T ◦ Chainring: SRAM T-Type 34T ◦ Chain Guide: Compatible with 32–34T ◦ Crankset: ISIS 160 mm ◦ Pedals: Alloy Platform 9/16"

🦿 Wheels & Tires

◦ Front Wheel: 29" Double-Wall Aluminum ◦ Tubeless Compatible / 32H

◦ Rear Wheel: 29" Double-Wall Aluminum ◦ Tubeless Compatible / 32H

◦ Front Tire: Maxxis Minion DHF 29 × 2.5" EXO ◦ Rear Tire: Maxxis Minion DHR II 29 × 2.4" EXO

🧩 Cockpit & Components

◦ Saddle: Selle Royal SRX

◦ Seatpost: XFusion Manic Dropper Post 31.6 mm ◦ S / M: 150 mm travel ◦ L / XL: 170 mm travel ◦ Seatpost Clamp: 34.9 mm

◦ Stem: 50 mm length / 35 mm clamp

◦ Handlebars: 35 mm clamp ◦ Upsweep: 5° ◦ Backsweep: 7° ◦ S / M: 780 mm width / 20 mm rise ◦ L / XL: 800 mm width / 30 mm rise

◦ Headset: ZS56 Upper / Lower ◦ Grips: Aventon Lock-On Grips

💥 Key Highlights

◦ Up to 120 Nm torque in BOOST Mode ◦ Up to 850W peak power ◦ 800Wh big integrated battery + up to 169 km range ◦ RockShox Lyrik Select + Super Deluxe Select+ suspension platform ◦ SRAM Transmission 12-Speed + AXS shift pod + 10–52T climbing range ◦ Full smart suite: 4G / GPS / Anti-Theft / Auto Assist / Wheel Lift Control ◦ Integrated top-tube touchscreen display ◦ Maxxis Minion DHF/DHR II — proven trail grip and control
