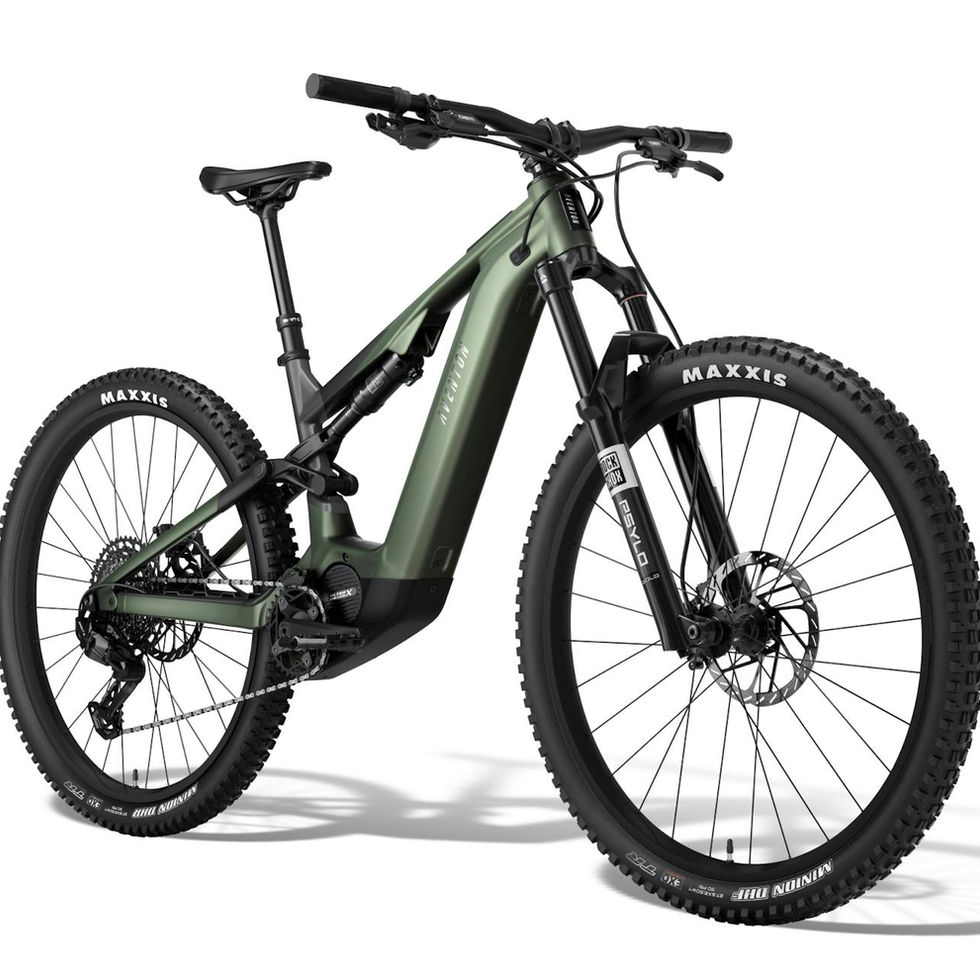

AVENTON - Current ADV Ebike

🚵‍♂️ Aventon Current ADV eBike — 2026 Model Year

🔥 Full-power trail e-MTB built for real riding — 800Wh battery, Ultro X motor up to 120Nm (BOOST), RockShox suspension front & rear, and a full suite of smart features (4G/GPS/Anti-theft/Touchscreen/AUTO Assist).

📦 General Information

◦ Model: Aventon Current ADV eBike (2026) ◦ Type: Full-Suspension Electric Mountain Bike (e-MTB) ◦ Bike Weight: 56 lbs (≈ 25.4 kg) ◦ Total Weight Limit: 300 lbs (≈ 136 kg) ◦ Rider Height Range: 5'3" – 6'1" ◦ eBike Class: Class 1 (Convertible to Class 3) ◦ Maximum Range: Up to 105 miles (≈ 169 km) ◦ Waterproof Rating: Bike IPX6 / Motor IP67

⚡ Motor & Battery

◦ Motor: Aventon Ultro X ◦ Peak Power: 750W ◦ BOOST Mode Peak Power: 850W ◦ Torque (Normal): 110 Nm ◦ Torque (BOOST Mode): 120 Nm ◦ Support Level: 400% ◦ BOOST Mode Support: 500%

◦ Battery: 800Wh Integrated Battery (built into the frame) ◦ Battery Weight: 9.2 lbs ◦ Charger: 42V 4A ◦ Charging Time: 0–100% ≈ 6 hours

🖥️ Display & Smart System

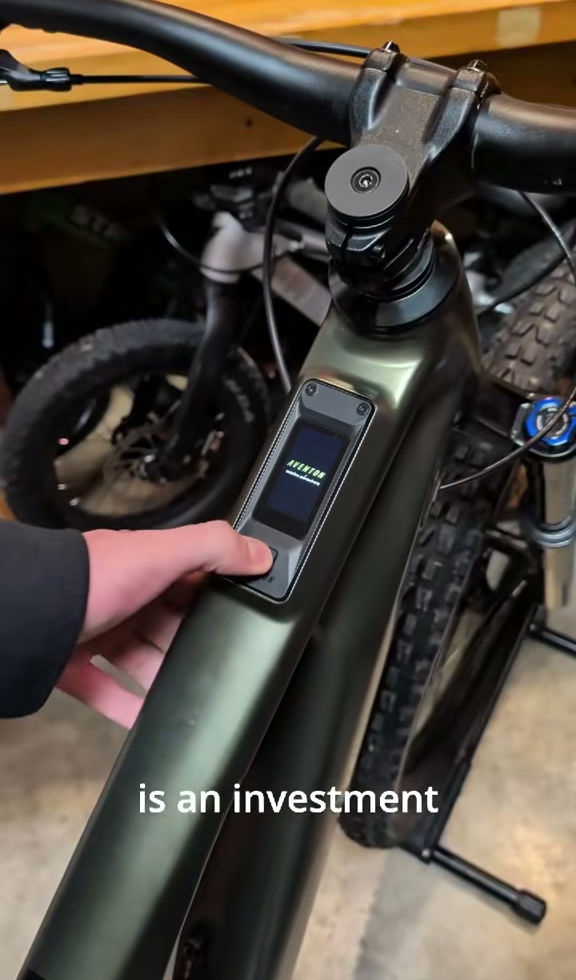

◦ Display: Integrated Top Tube Display (Touchscreen)

◦ Smart Features: ◦ Jump Tracking ◦ Overrun ◦ Wheel Lift Control ◦ 4G / GPS Tracking ◦ Anti-Theft ◦ BOOST Mode ◦ AUTO Assist Mode

🦾 Frame

◦ Frame Material: 6061 Aluminum ◦ Rear Spacing: 12×148 mm ◦ Fork Spacing: 15×110 mm

🛞 Suspension System

◦ Front Fork: RockShox Psylo Gold ◦ Travel: 150 mm ◦ Offset: 44 mm

◦ Rear Shock: RockShox Deluxe Select+ ◦ Size: 210×55 mm

🛑 Braking System

◦ Front Brake: SRAM DB8 Stealth ◦ Rear Brake: SRAM DB8 Stealth ◦ Front Rotor: SRAM Centerline 200 mm ◦ Rear Rotor: SRAM Centerline 200 mm

⚙️ Drivetrain

◦ Rear Derailleur: SRAM Eagle 70 Transmission (12-Speed) ◦ Shifter: SRAM Eagle 70 Transmission ◦ Chain: SRAM Eagle 70 Transmission ◦ Cassette: SRAM Eagle 70 Transmission 11–50T ◦ Chainring: SRAM 34T ◦ Chainring BCD: 104 ◦ Crankset: 6061 Aluminum ISIS, 160 mm ◦ Chain Guide: Compatible with 32–34T ◦ Pedals: Alloy Platform 9/16"

🦿 Wheels & Tires

◦ Front Wheel: 29" Double-Wall Aluminum ◦ Tubeless Compatible / 32H

◦ Rear Wheel: 29" Double-Wall Aluminum ◦ Tubeless Compatible / 32H

◦ Front Tire: Maxxis Minion DHF 29×2.5" EXO ◦ Rear Tire: Maxxis Minion DHR II 29×2.4" EXO

🧩 Cockpit & Components

◦ Saddle: Selle Royal SRX

◦ Seatpost: XFusion Manic Dropper 31.6 mm ◦ Travel: 150 mm (S/M) / 170 mm (L/XL) ◦ Seatpost Clamp: 34.9 mm

◦ Stem: 50 mm length / 35 mm clamp

◦ Handlebars (35 mm clamp): ◦ Upsweep: 5° ◦ Backsweep: 7° ◦ S/M: 780 mm width / 20 mm rise ◦ L/XL: 800 mm width / 30 mm rise

◦ Headset: ZS56 Upper / Lower ◦ Grips: Aventon Lock-On Grips

💥 Key Highlights

◦ Up to 120 Nm torque in BOOST Mode ◦ 800Wh big battery for long trail days ◦ RockShox suspension front + rear (150mm fork) ◦ SRAM Transmission 12-speed drivetrain ◦ Touchscreen top-tube display + smart features (4G/GPS/Anti-theft/AUTO Assist) ◦ Durable 6061 aluminum frame (easy to maintain) ◦ Maxxis Minion DHF/DHR II tires — trail-ready grip
