AVENTON - Aventure 3
฿72,500.00
🚲 AVENTON - Aventure 3 🚲
📌 General Information
Model: Aventure 3 Ebike
Bike Weight: 76 lbs (34.5 kg)
Max Payload: 400 lbs (181 kg)
Rider Height Recommendation:
• Size R: 160 – 178 cm
• Size L: 178 – 193 cmEbike Class: Class 2
Water Resistance: IPX5
Suggested Use: All-Terrain
Battery Safety Standard: UL 2271
Ebike Safety Standard: UL 2849
Maximum Range: Up to 105 km (depending on conditions)
🛠️ Frameset
Frame: 6061 Aluminum with Gravity Cast front triangle
Frame Style: Step-Over
Front Suspension: Aventon/Zoom, 80 mm travel with lockout
Rear Hub Spacing: 190 mm
Front Fork Spacing: 135 mm
🛞 Wheelset
Front Wheel: 26", 36H, Double-wall aluminum, bolt-on, Schrader valve
Rear Wheel: 26", 36H, Double-wall aluminum, bolt-on motor hub, Schrader valve
Tires: Inova 26x4.0, puncture-resistant
⚙️ Drivetrain
Rear Derailleur: Shimano Altus, 8-speed
Shifter: Shimano 8-speed trigger
Chain: 7/8-speed compatible, 118 links
Cassette: Shimano CS HG200-8, 12-32T
Chainring: 48T
Crankset: 3-piece, 170 mm length
Bottom Bracket: Square Taper, 100x177 mm, sealed, with dual-sided torque sensor
Pedals: Aluminum platform, 9/16"
🛑 Brakes
Front & Rear Brakes: Tektro HD-E3520 hydraulic disc brakes with EJ1 quick disconnect
Brake Rotors: 180 mm (6-bolt), front and rear
🔧 Cockpit & Accessories
Saddle: Aventon Comfort Saddle

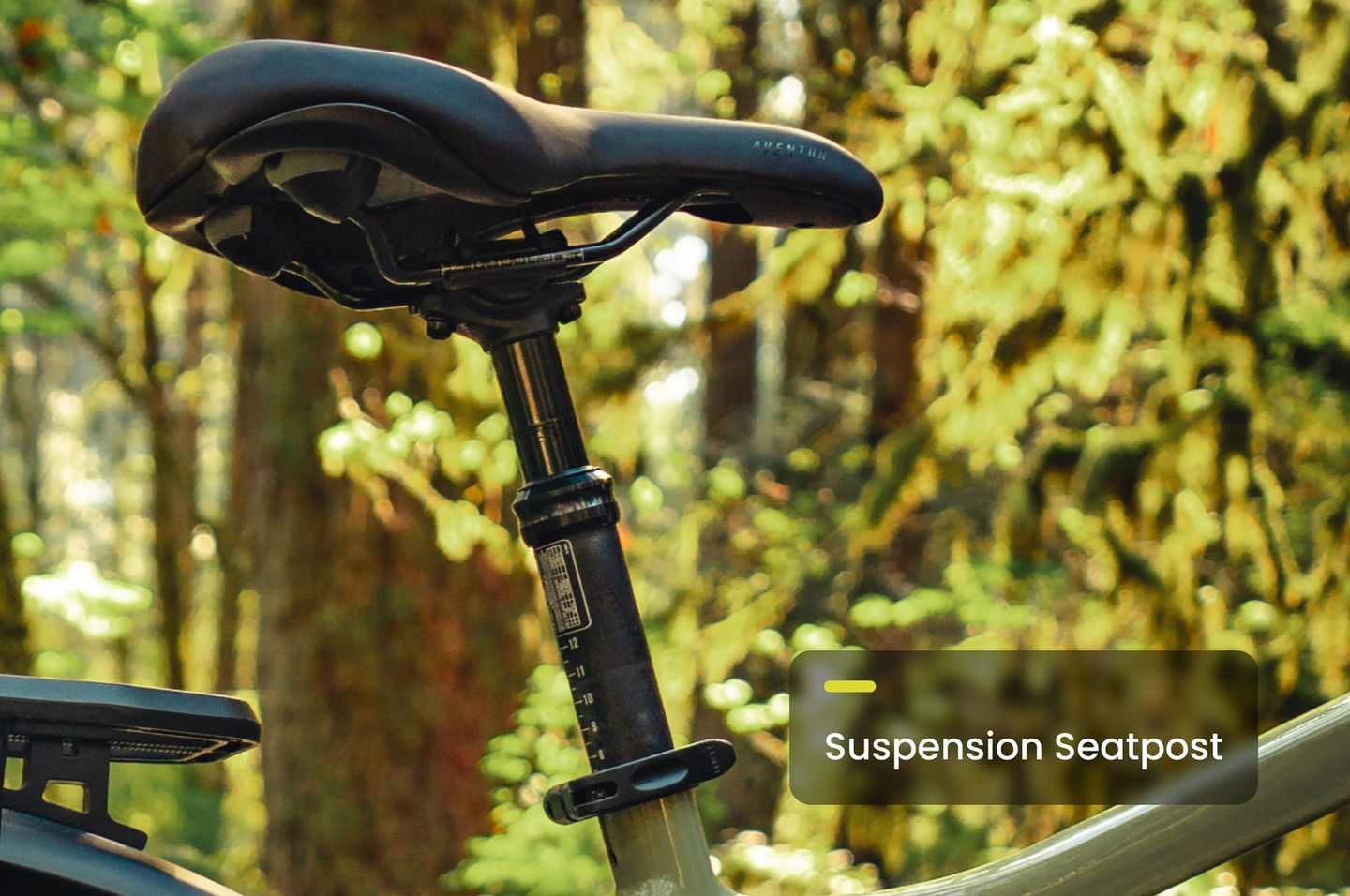

Seatpost: Aventon Suspension Ø30.9 mm x 350 mm, 50 mm travel
Seatpost Clamp: Ø34.9 mm
Handlebar: Aluminum Ø31.8 mm, 680 mm width
Grips: Aventon Lock-on
Headset: H887 Peilin sealed bearing
📦 Included Accessories
Kickstand: Rear-mounted
Rear Rack: Included
Fenders: Front and rear set included
🔋 Electrical System
Motor: 36V 750W rear hub motor (peak 1188W), 80 Nm torque
Battery: Removable 36V 20Ah (733Wh), LG 21700 cells
Battery Weight: 3.95 kg
Display: Aventon BC280
Controller: 36V / 33A
Throttle: Left-hand grip throttle
Sensor: Dual-sided torque sensor at bottom bracket
Charger: Output 42V / 4A, full charge in 5 hours
Integrated Lights: Front and rear
