AVENTON - Abound LR Ebike

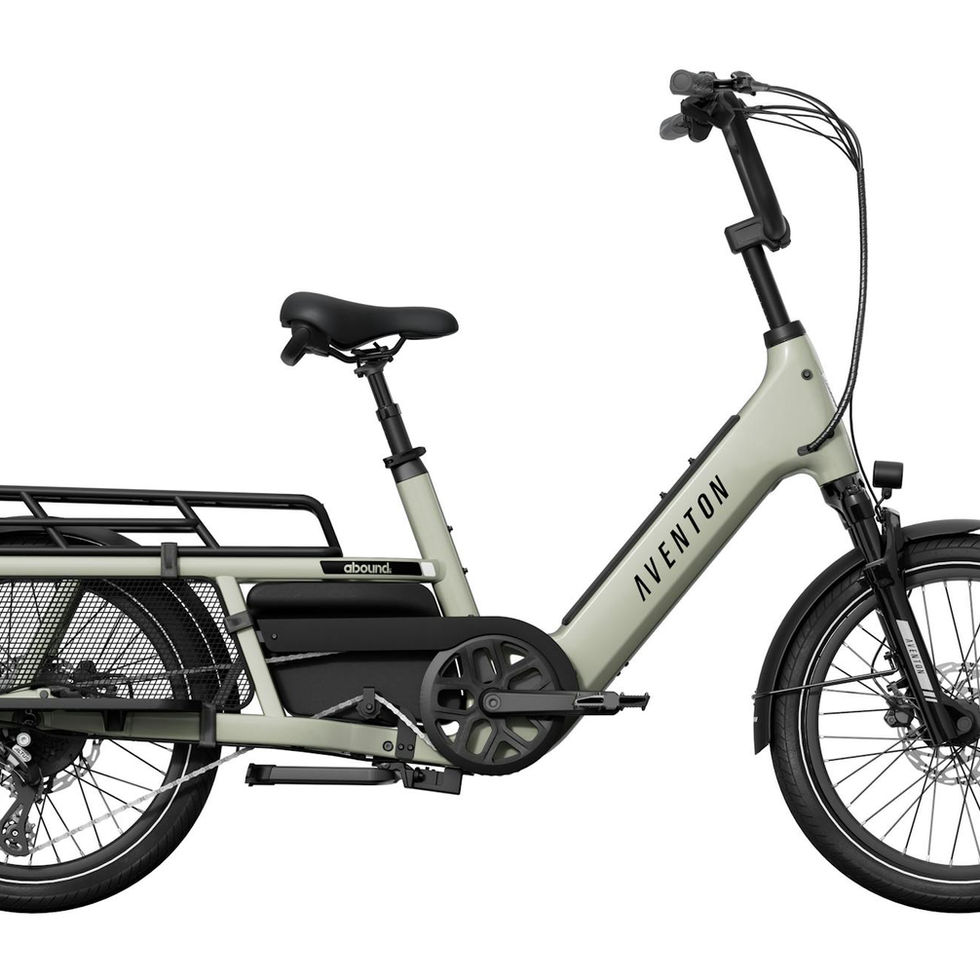

🚲 Aventon Abound LR eBike — 2026 Model Year

🔥 Long-Range Cargo e-Bike — carry passengers, haul heavy loads, and ride farther with a 733Wh battery and 440 lbs total capacity.

📦 General Information

◦ Model: Aventon Abound LR eBike (2026) ◦ Type: Cargo / Utility Electric Bike ◦ Main Use: Cargo & Utility ◦ Frame Style: Step-Through ◦ Bike Weight: 88 lbs (≈ 39.9 kg) ◦ Max Total Load Capacity: 440 lbs (≈ 199.5 kg) ◦ Passenger Capacity: Up to 2 people ◦ Recommended Rider Height: 4'11" – 6'3" ◦ eBike Class: Class 2 ◦ Maximum Range: Up to 60 miles (≈ 96 km) ◦ Pedal Assist Levels: 3 levels (Ride Tune customization supported) ◦ Certifications: UL 2271 / UL 2849 + UL & TUV Certified ◦ Waterproof Rating: Bike System IPX5 / Components IPX6

⚡ Motor & Battery System

◦ Motor: Shengyi Hub Drive Motor ◦ Voltage: 36V ◦ Rated Power: 750W ◦ Peak Power: 1188W ◦ Torque: 80 Nm ◦ Speed Sensing: 6 speed sensors

◦ Battery: Removable Internal Lithium-Ion ◦ Capacity: 36V 20Ah ◦ Energy: 733Wh ◦ Cells: LG 21700 ◦ Battery Weight: 8.7 lbs

◦ Controller: 36V / 33A ◦ Pedal Sensor: Double-sided bottom bracket torque sensor ◦ Throttle: Left-handlebar mounted throttle ◦ Charger: 42V 4A (36V output) ◦ Charge Time: 0–100% ≈ 5 hours

🖥️ Display & Controls

◦ Display: Aventon BC147 (battery / speed / assist monitoring) ◦ Ride Tune: Pedal-assist response tuning supported

🪶 Frame Construction

◦ Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy ◦ Integrated Battery: Yes ◦ Rear Spacing: 175 mm ◦ Fork Spacing: 110 mm

🛞 Suspension System

◦ Front Fork: Suspension fork ◦ Travel: 51 mm ◦ Lockout: Yes ◦ Front Hub Spacing: 15 × 110

🛑 Braking System

◦ Brakes: Tektro HD-E3520 Hydraulic Disc (Front & Rear) ◦ Wiring: EJ1 quick disconnect wire ◦ Rotors: 180 mm front (6-bolt) / 203 mm rear (6-bolt)

⚙️ Drivetrain

◦ Rear Derailleur: Shimano Altus RD-M310 (8-speed) ◦ Shifter: Shimano Trigger SL-M315-8R ◦ Chain: 7/8-speed compatible, 154L ◦ Cassette: Shimano CS-HG200-8 (12–32T) ◦ Chainring: 52T ◦ Crankset: 3-piece, 165 mm ◦ Bottom Bracket: Square taper, sealed, dual-sided torque sensor ◦ Pedals: 9/16" composite platform

🦿 Wheels & Tires

◦ Front Wheel: 20" double-wall aluminum, 36H, 13g spokes, 20×110 thru axle, Schrader ◦ Rear Wheel: 20" double-wall aluminum, 36H, 12g spokes, nutted hub motor, Schrader ◦ Tires: Innova IA-2131 Urban Tire 20×3.0 ◦ Feature: Reflective sidewalls

🧩 Cockpit & Components

◦ Saddle: Aventon Saddle by Selle Royal (includes grab handle) ◦ Seatpost: Aventon suspension seatpost 30.9×350 mm, 50 mm travel ◦ Seatpost Clamp: 34.9 mm ◦ Handlebars: BMX-style aluminum, 31.8 mm clamp, 720 mm width ◦ Grips: Aventon ergonomic comfort lock-on grips ◦ Headset: H886HW Peilin

💡 Lighting & Safety

◦ Front Light: Integrated front light ◦ Rear Light: Integrated rear light ◦ Turn Signals: Built-in turn signals

🎁 Included Accessories

◦ Fenders: Included ◦ Rear Rack: Included — rack capacity 143 lbs (≈ 64.8 kg) ◦ Frame Storage Bag: Included

💥 Key Highlights

◦ 750W hub motor / 1188W peak ◦ Torque sensor for smoother pedaling vs cadence-only cargo bikes ◦ 733Wh battery + up to 96 km range ◦ 440 lbs total load capacity + supports 2 riders ◦ Rear rack rated 143 lbs ◦ Integrated lights + turn signals for safer city riding ◦ Factory throttle for easier starts with cargo ◦ Low step-through frame for daily convenience ◦ Fully equipped out of the box (rack + fenders + storage bag)
