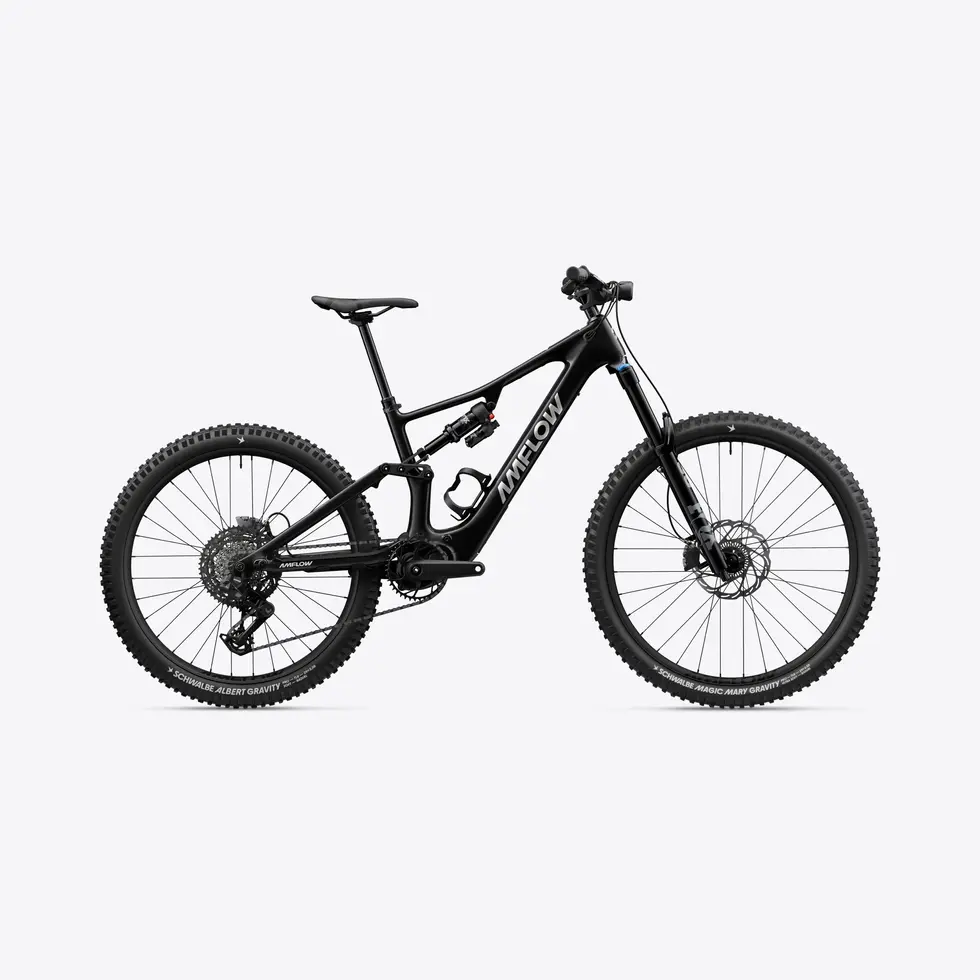

AMFLOW - PX Carbon

🏍️ AMFLOW PX Carbon — 2026 Model Year

🔥 Carbon enduro e-MTB with up to 40 geometry configurations + Avinox M2S drive unit with 150 N·m peak torque — tune it for any riding style and terrain.
AMFLOW PX Carbon (2026) is built around real adjustability (head angle, BB height, and chainstay length) for up to 40 setup combinations, powered by Avinox M2S and a 700Wh integrated battery. Comes in a mullet (29/27.5) build for trail-ready performance.

📦 General Information
◦ Model: AMFLOW PX Carbon (2026)
◦ Frame: Amflow PX Carbon Frame
◦ Color: Phantom Black
◦ Adjustable Geometry: Up to 40 configurations (practical, ride-dependent tuning)
◦ Rear Wheel Compatibility: 27.5" and 29"

⚡ E-Bike System
◦ Drive Unit: Avinox M2S Drive Unit
◦ Torque: 130 N·m nominal / 150 N·m peak
◦ Display: Avinox 2-inch OLED Control Display
◦ Battery: Avinox Integrated Battery 700Wh
◦ Controllers: Avinox Wireless Controllers (Left/Right)
◦ Charger: Avinox Fast Charger 12A / 508W

🦾 Suspension
◦ Rear Shock: FOX Float X Performance (MY 2027)
◦ Spec: 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
◦ Front Fork: FOX 36 Performance (MY 2027)
◦ Travel: 160mm
◦ Damper: GRIP
◦ Adjustments: Sweep / LSR
◦ Axle / Offset: 15×110mm / 44mm

⚙️ Drivetrain
◦ Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
◦ Shifter: SRAM AXS Pod Controller
◦ Chainring: SRAM Eagle Transmission DM Chainring 38T (for Avinox)
◦ Cassette: SRAM XS-1270 10–52T
◦ Chain: SRAM Eagle 70 Transmission Flattop Chain
◦ Power Cable: Avinox M2 Series Electronic Rear Derailleur Power Cable
◦ Crankset: Avinox SL Crank
◦ Crank Length: 155mm (M/L) / 160mm (XL/XXL)

🛑 Braking System
◦ Brakes: Magura Gustav Pro Hydraulic Disc Brake (4-piston)
◦ Rotors: Magura Sensor Rotor 203mm (2.5mm thickness)

🦿 Wheels & Tires
◦ Wheelset: Amflow XMA-30 Mullet Version
◦ Front Rim: Alloy 29", 30mm, 32H, Tubeless-ready
◦ Rear Rim: Alloy 27.5", 30mm, 32H, Tubeless-ready
◦ Spokes: SAPIM E-Light
◦ Front Hub: Alloy, 2 sealed bearings, 15×110, 32H, 6-bolt
◦ Rear Hub: Alloy, 4 sealed bearings, 12×148, 32H, 6-bolt, 4 pawls 36T, HG
◦ Front Tire: Schwalbe Magic Mary Radial 29×2.5 (Ultra Soft, Tubeless-ready)
◦ Rear Tire: Schwalbe Albert Radial 27.5×2.5 (Addix Soft, Tubeless-ready)

🧩 Cockpit & Components
◦ Handlebar: Amflow Enduro Alloy Handlebar (Rise 40mm, 800mm width, Ø35)
◦ Bar Sweep: 5° upsweep / 9° backsweep
◦ Grips: Amflow Enduro Grip 2 Lock-on
◦ Stem: Amflow Mountain Bike Split Stem (35mm, Ø35)
◦ Saddle: Amflow Mountain Saddle
◦ Dropper Post Shim: 0 / 5 / 10 / 15 / 20 / 25mm adjustment
◦ Dropper Travel: 190mm (M/L) / 210mm (XL) / 230mm (XXL)

🎁 In the Box
◦ Avinox Front Light
◦ Amflow Bottle Cage
◦ Three Geometry Adjustment Systems (0.5°/1° headset cups, chainstay flip-chip)
◦ 5/10mm Dropper Post Travel Reducing Spacer
◦ Rear Light
◦ Torque Wrench
◦ Clear Frame Protection Film
◦ Shock Pump
◦ Quick Start Guide

💥 Key Highlights
◦ Up to 40 geometry configurations — tune for any terrain and riding style
◦ Avinox M2S: 150 N·m peak torque + 700Wh battery
◦ Mullet setup 29"/27.5" with Schwalbe Radial tires — trail-ready grip
◦ Magura Gustav Pro 4-piston + 203mm (2.5mm) rotors — powerful braking control
