AMFLOW - PR Carbon

🏍️ AMFLOW PR Carbon — 2026 Model Year

🔥 Adjustable geometry (up to 40 configurations) + Avinox M2 drive (up to 125 N·m peak) + removable 800Wh battery — mullet-ready (29/27.5) for real trail/enduro riding.

📦 General Information

◦ Model: AMFLOW PR Carbon (2026) ◦ Frame: Amflow PR Carbon Frame ◦ Color: Moss Green ◦ Adjustable Geometry: Up to 40 configurations ◦ Rear Wheel Compatibility: 27.5" and 29"

⚡ E-Bike System

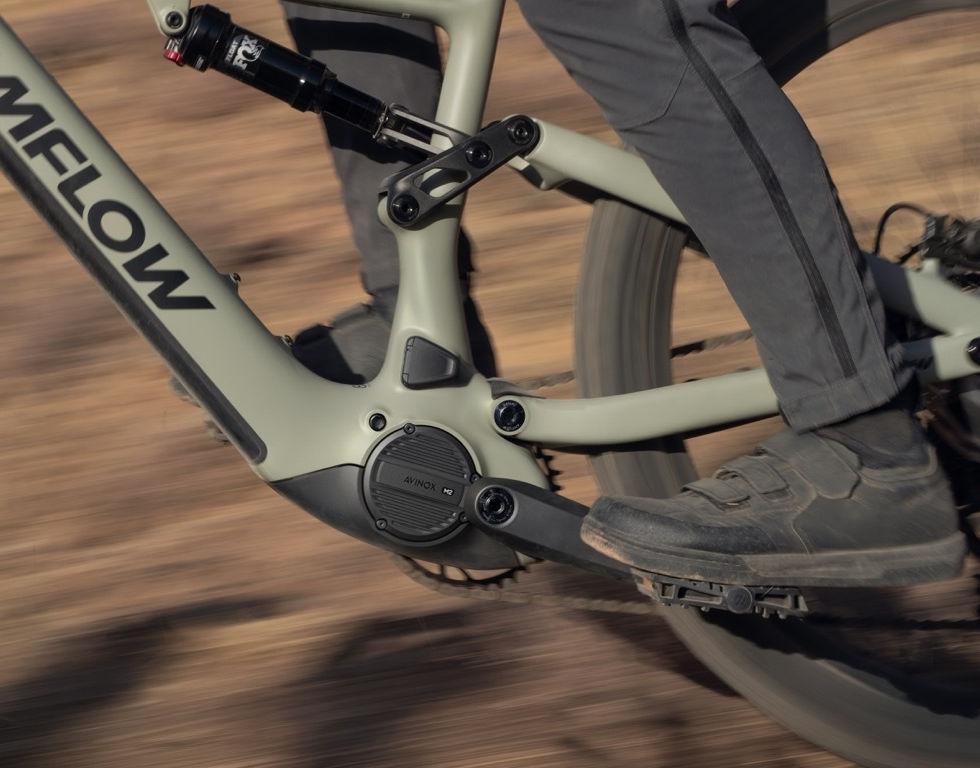

◦ Drive Unit: Avinox M2 Drive Unit ◦ Torque: 110 N·m nominal / 125 N·m peak ◦ Display: Avinox 2-inch OLED Control Display ◦ Battery: Avinox Removable Battery 800Wh ◦ Controllers: Avinox Wireless Controllers (Left/Right) ◦ Charger: Avinox Charger 4A / 168W

🦾 Frame & Suspension

◦ Rear Shock: FOX Float Rhythm (MY 2027) ◦ Spec: Custom tune, LSR adjustment, 210×55mm, air shock

◦ Front Fork: FOX AWL HD Sport (MY 2027) ◦ Travel: 160mm ◦ Damper: RAIL 2.0 ◦ Adjustments: Sweep / LSR ◦ Axle: 15×110mm ◦ Offset: 44mm

⚙️ Drivetrain

◦ Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur ◦ Shifter: SRAM AXS Pod Controller ◦ Chainring: SRAM Eagle Transmission DM Chainring 38T (for Avinox) ◦ Cassette: SRAM XS-1270 10–52T ◦ Chain: SRAM Eagle 70 Transmission Flattop Chain ◦ Power Cable: Avinox M2 Series Electronic Rear Derailleur Power Cable ◦ Crankset: Avinox SL Crank ◦ Crank Length: 155mm (M/L) / 160mm (XL/XXL)

🛑 Braking System

◦ Brakes: Tektro TKD173 Hydraulic Disc (4-piston) — Amflow Custom ◦ Rotors: Tektro Sensor Rotor 203mm (2.3mm thickness)

🦿 Wheels & Tires

◦ Wheelset: Amflow XMA-30 Mullet Version ◦ Front Rim: Alloy 29", 30mm, 32H, Tubeless Ready ◦ Rear Rim: Alloy 27.5", 30mm, 32H, Tubeless Ready ◦ Spokes: SAPIM E-Light ◦ Front Hub: Alloy, 2 sealed bearings, 15×110, 32H, 6-bolt ◦ Rear Hub: Alloy, 4 sealed bearings, 12×148, 32H, 6-bolt, 4 pawls 36T, HG ◦ Front Tire: Maxxis Assegai 29×2.50 (3C MaxxGrip / EXO+ / TR) ◦ Rear Tire: Maxxis Minion DHR II 27.5×2.50 (MaxxTerra / DD / TR)

🧩 Cockpit & Components

◦ Handlebar: Amflow Enduro Alloy Handlebar ◦ Spec: 40mm rise / 800mm width / Ø35mm ◦ Sweep: 5° upsweep / 9° backsweep ◦ Grips: Amflow Enduro Grip 2 Lock-on ◦ Stem: Amflow Mountain Bike Split Stem ◦ Spec: 35mm length / Ø35mm clamp ◦ Saddle: Amflow Mountain Saddle ◦ Dropper Post Shim: 0 / 5 / 10 / 15 / 20 / 25mm adjustment ◦ Dropper Travel: 190mm (M) / 210mm (L/XL) / 230mm (XXL)

🎁 In the Box

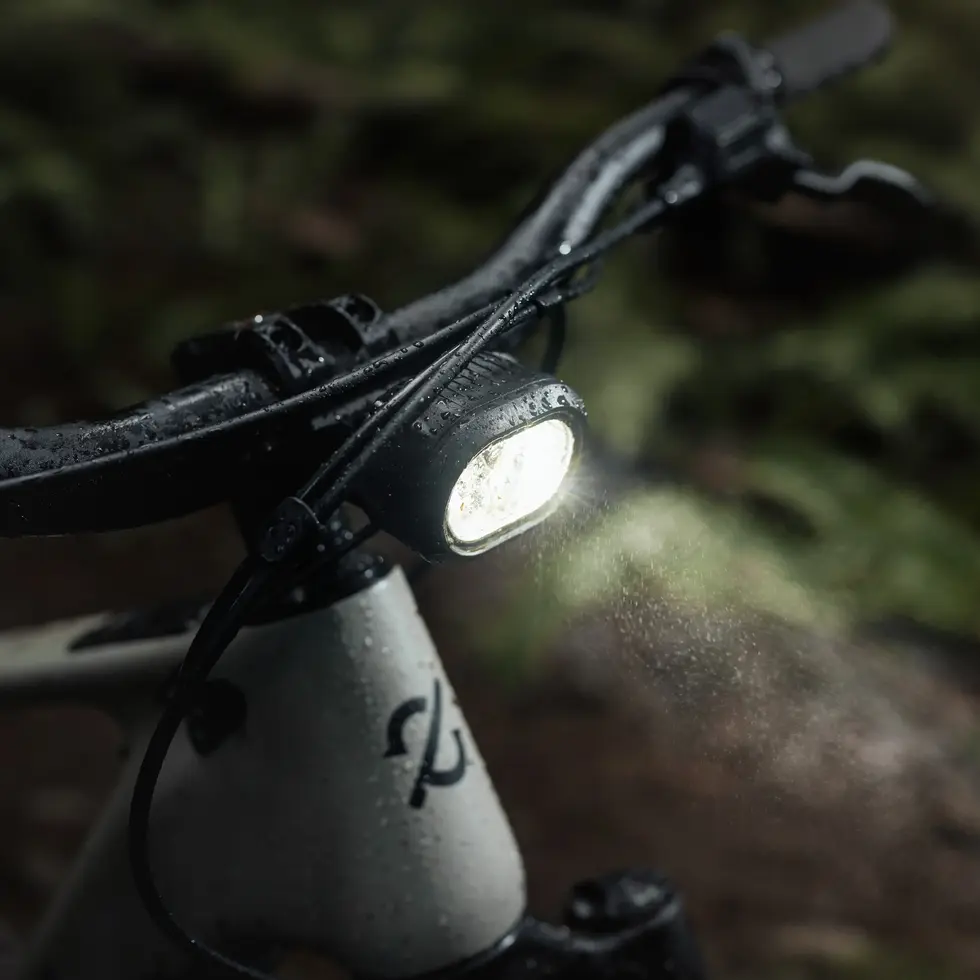

◦ Avinox Front Light ◦ Amflow Bottle Cage ◦ Three Geometry Adjustment Systems (0.5°/1° headset cups, chainstay flip-chip) ◦ Removable Battery Keys × 2 ◦ 5/10mm Dropper Travel Reducing Spacer ◦ Quick Start Guide ◦ Rear Light ◦ Torque Wrench ◦ Clear Frame Protection Film ◦ Shock Pump

💥 Key Highlights

◦ Up to 40 geometry configurations — tune for climbing, descending, or flow trails ◦ Avinox M2: 125 N·m peak torque + removable 800Wh battery ◦ FOX (MY2027) suspension + mullet wheels 29/27.5 with aggressive Maxxis tires ◦ 4-piston brakes + 203mm (2.3mm) rotors for strong stopping control
